xPON Dual Mode ONU 4GE Ports
Model Number: ONT-4GE
Brand: Softel
MOQ: 1
EPON/GPON Dual Mode
Bridge And Route Adaptive Mode
ZTE Chipset, Compatible With ZTE, HUAWEI and FIBERHOME OLT
01
Product Description
ONT-4GE (XPON 4GE ONU) supports Dual mode(XPON) , It can also be applied to a wide temperature environment , and also has a powerful firewall function.

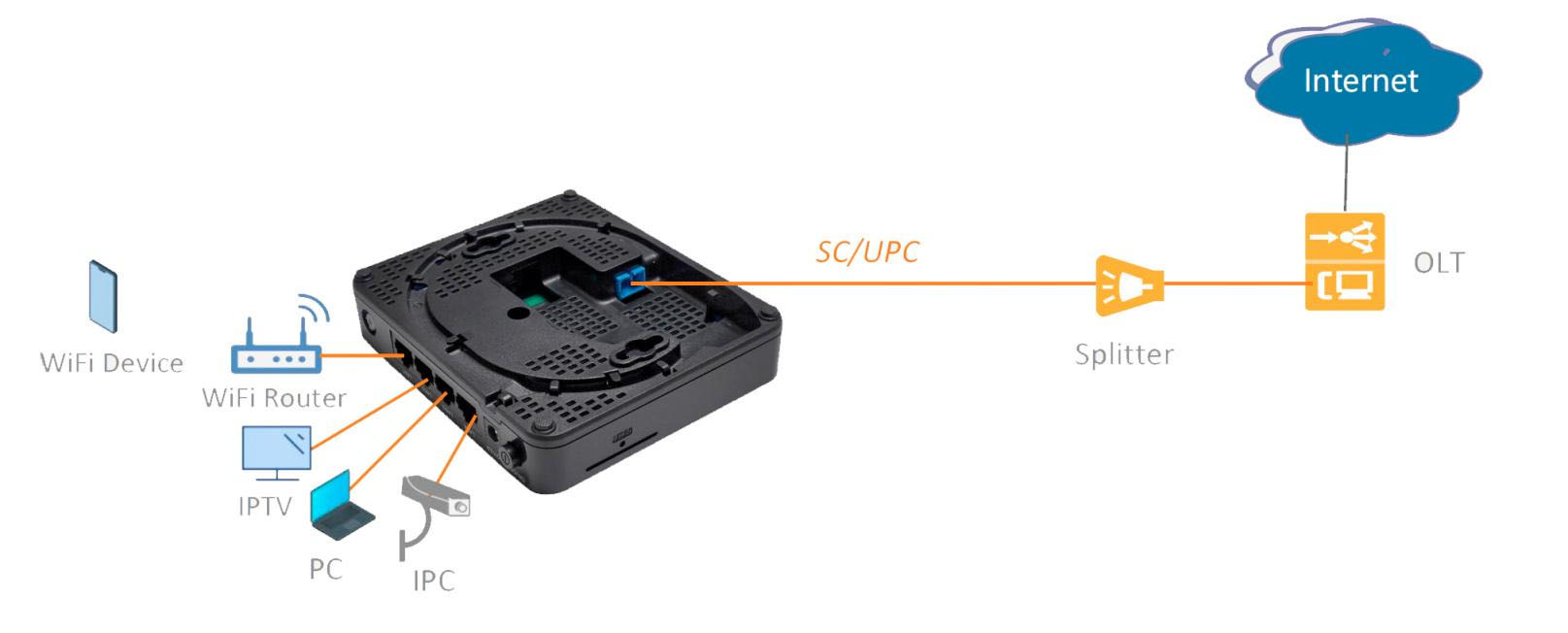

ONT-4GE (XPON 4GE ONU) meets telecom operators FTTO (office), FTTD (Desk) , FTTH( Home) broadband speed , SOHO broadband access, video surveillance and other requirements and design a GPON/EPON Gigabit Ethernet products. The box is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain, with guaranteed QOS for different service. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.SFP with SC/PC Connector Transceiver.
| Hardware Parameter | |
| Dimension | 130mm*110mm*30mm(L*W*H) |
| Net weight | TBD |
| Operating condition | • Operating temp: 0 ~ +50°C • Operating humidity: 5 ~ 90% (non-condensed) |
| Storing condition | • Storing temp: -30 ~ +60°C • Storing humidity: 5 ~ 90% (non-condensed) |
| Power adapter | DC 12V/ 1A, external AC-DC power adaptor |
| Power supply | ≤ 12W |
| Interfaces | 4GE |
| Indicators | PWR, PON, LOS, LAN1~LAN4 |
| Interface Parameter | |
| PON interface | • 1 XPON port(EPON PX20+ & GPON Class B+) • SC single mode, SC/UPC connector • TX optical power: 0~+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm(EPON) or – 8dBm(GPON) • Transmission distance: 20KM • Wavelength: TX 1310nm, RX1490nm |
| LAN interface | 4*GE, Auto-negotiation RJ45 connectors |
| Function Data | |
| XPON Mode | Dual mode,Auto-access to EPON/GPON OLT |
| Uplink Mode | Bridging and Routing Mode |
| Abnormal protection | Detecting Rogue ONU, Hardware Dying Gasp |
| Firewall | DDOS, Filtering Based on ACL/MAC/URL |
| Product Feature | |
| Basic | • Support MPCP discover®ister • Support authentication Mac/Loid/Mac+Loid • Support Triple Churning • Support DBA bandwidth • Support auto-detecting, auto-configuration, and auto firmware upgrade • Support SN/Psw/Loid/Loid+Psw authentication |
| Alarm | • Support Dying Gasp • Support Port Loop Detect • Support Eth Port Los |
| LAN | • Support Port rate limiting • Support Loop detection • Support Flow control • Support Storm control |
| VLAN | • Support VLAN tag mode • Support VLAN transparent mode • Support VLAN trunk mode(max 8 vlans) • Support VLAN 1 : 1 translation mode(≤8 vlans) • Auto VLAN detection |
| Multicast | • Support MLD • Support IGMPv 1/v2/Snooping • Max Multicast vlan 8 • Max Multicast Group 64 |
| QoS | • Support 4 queues • Support SP and WRR • Support 802 . 1P |
| L3 | • Support IPv4/ IPv6 • Support DHCP/PPPOE/Static IP • Support Static route • Support NAT |
| Management | • Support CTC OAM 2 .0 and 2 . 1 • Support ITUT984 .x OMCI • Support TR069/WEB/TELNET/CLI |
xPON Daul Mode ONU 4GE Port ONT-4GE datasheet
