XGSPON-08V Uplink/Downlink Symmetrical 10G Combo PON 8 Ports XG(S)-PON&GPON OLT

Brief Introduction

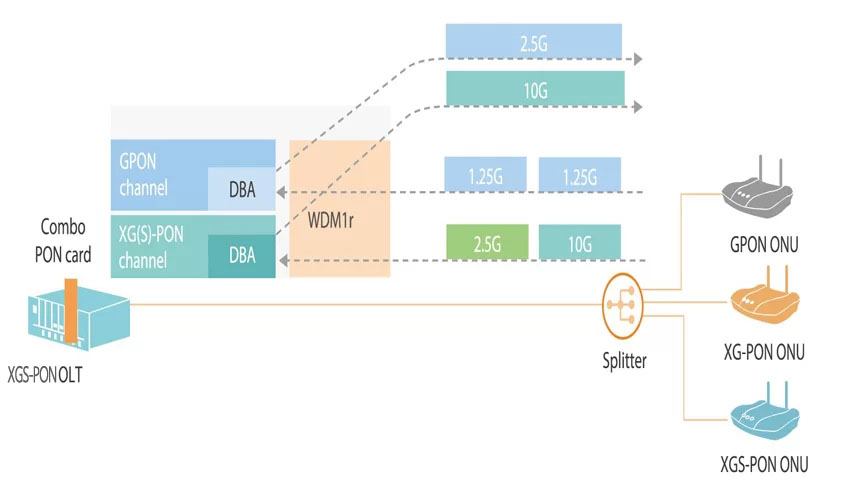

SOFTEL XGSPON-08V is an innovative 10G GPON OLT product with 8 PON ports and XG (S) - PON&GPON Combo compatibility. XGSPON-08V supports smooth upgrades from GPON to XG (S) - PON, achieving high bandwidth and high-speed data transmission to meet large-scale deployment requirements. This product has comprehensive management and monitoring functions, simplifies operation and maintenance processes, and provides rich business features and scalability. XGSPON-08V can build a 10G GPON network, providing excellent user experience and high-quality services to operators.

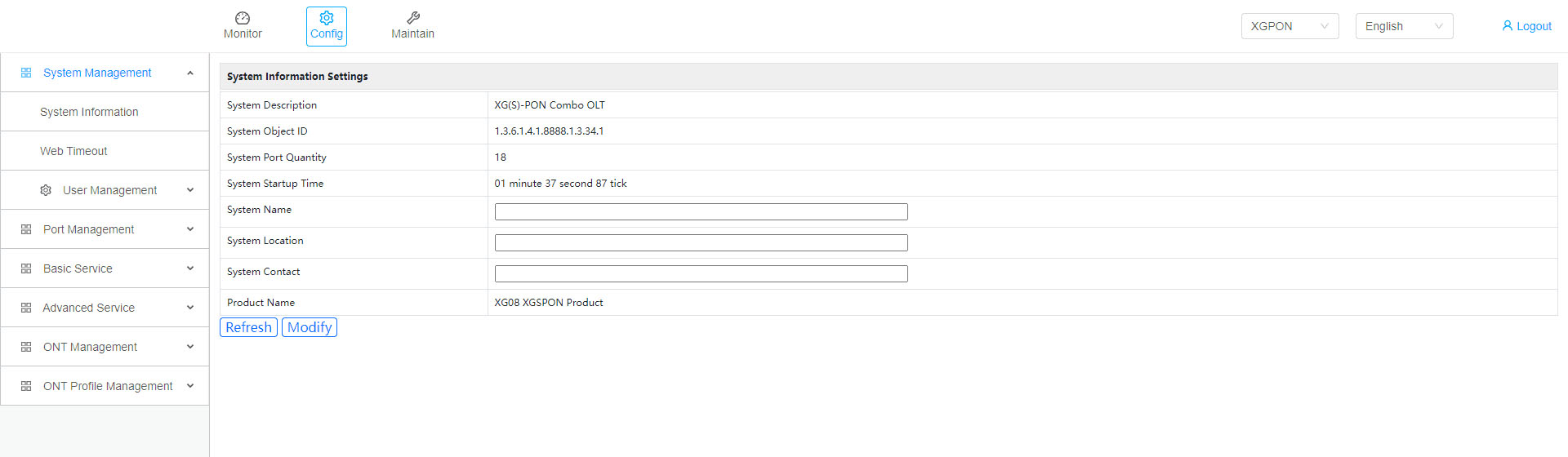

Management Function
• SNMP,Telnet,CLI,WEB,SSH v2;
• Fan Group Control

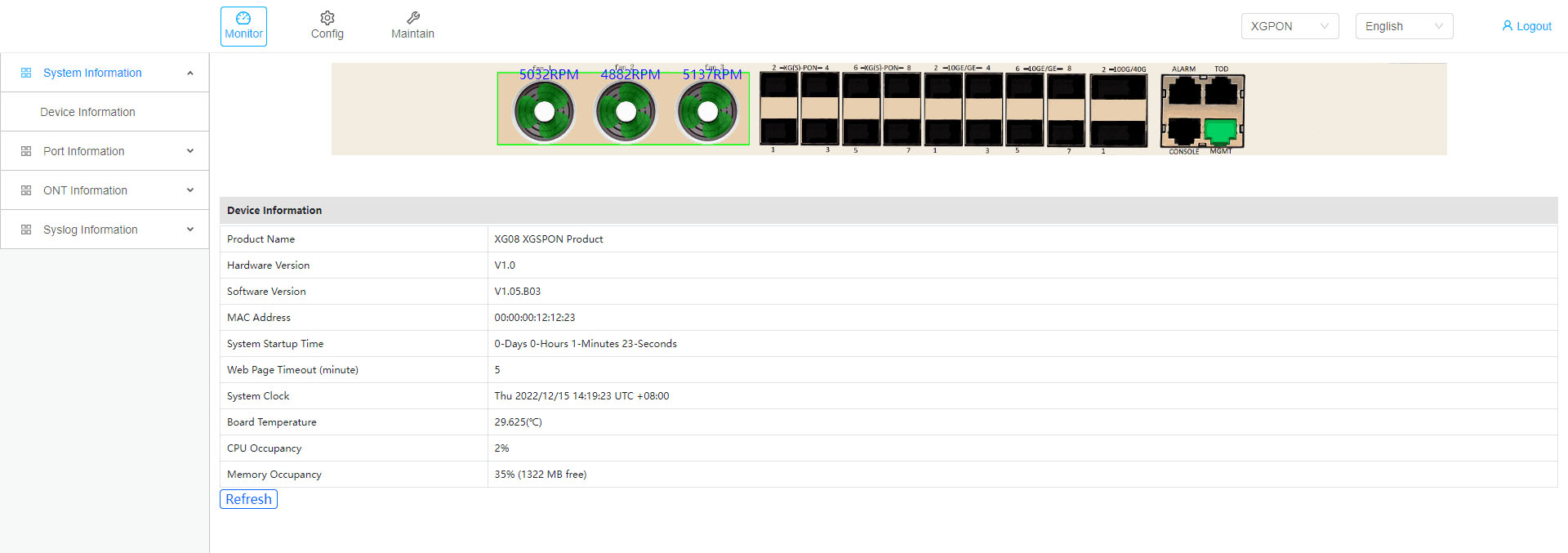

• Port Status monitoring and configuration management
• Online ONTconfiguration and management
• User management
• Alarm management
Layer2 Switch
• 32K Mac address
• Support 4096 VLANs
• Support port VLAN
• Support VLAN tag/Un-tag, VLAN transparent transmission
• Support VLAN translation and QinQ
• Support storm control based on port
• Support port isolation
• Support port rate limitation
• Support 802.1D and 802.1W
• Support static LACP,Dynamic LACP
• QoS based on port, VID, TOS and MAC address
• Access control list
• IEEE802.x flowcontrol
• Port stability statistic and monitoring

Multicast
• IGMP snooping
• 2048 IP Multicast Groups;

DHCP
• DHCP server,DHCP relay,DHCP snooping
• DHCP option82

Layer 3 Route
• ARP proxy
• 4096 hardware Host Routes,512 hardware Subnet Routes
• Support Radius,Tacacs+
• Support IP source guard
• Support static route ,dynamic route RIP v1/v2,RIPng and OSPF v2/v3;

IPv6
• Support NDP;
• Support IPv6 Ping,IPv6 Telnet,IPv6 routing;
• Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc;
• Support MLD v1/v2 snooping

PON Function
• T-CONT DBA
• x-GEM traffic
• In compliant with ITU-T G.9807(XGS-PON) and ITU-T G.987(XG-PON)
• Up to 20KM transmission Distance
• Support data encryption, multi-cast, port VLAN, separation, RSTP, etc

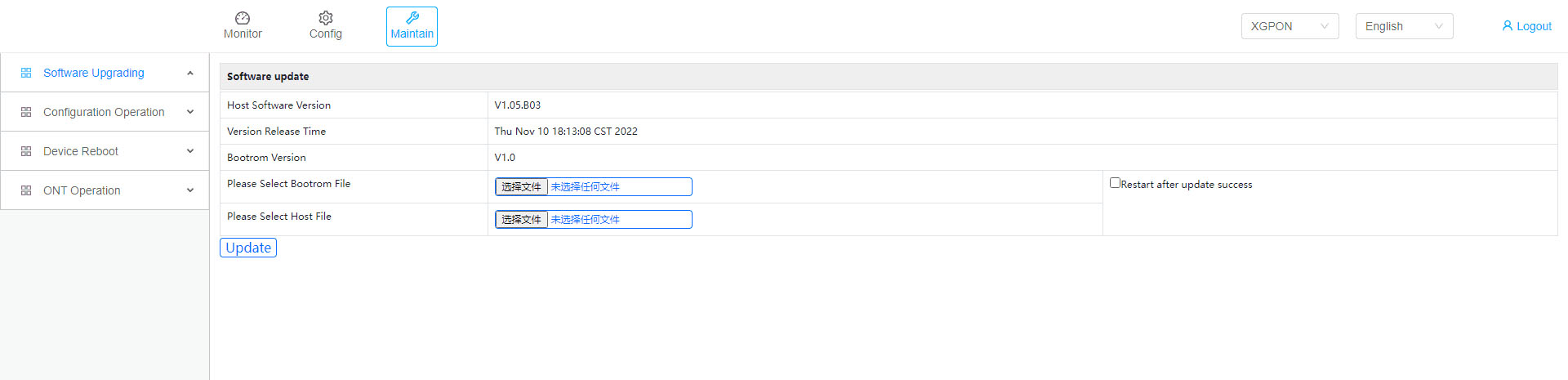

• Support ONT auto-discovery/link detection/remote upgrade of software
• Support VLAN division and user separation to avoid broadcast storm
• Support power-off alarm function, easy for link problem detection
• Support broadcasting storm resistance function
• Support port isolation between different ports
• Support ACL and SNMP to configure data packet filter flexibly
• Specialized design for system breakdown prevention to maintain stable system
• Support RSTP,IGMP Proxy
Dimension (L*W*H)
• 442mm*330mm*43.6mm
Weight
• Net weight : NA KG
Power Consumption
• 150W
Working Environment
• Working Temputure: 0。C ~+55。C
• Working Humidity: 10%~85%(non-condensing)
Storage Environment
• Storage Temputure: -40 ~ +85。C
• Storage Humidity: 5%~95%(non-condensing)
