SRXG-2020AW FTTH XG-PON Active Fiber Optical Node with WDM
Model Number: SRXG-2020AW
Brand: Softel
MOQ: 1
Comply with EPON/GPON/XG-PON
AGC Output RF Level > 78dBμV
Wide Dynamic Receiving Optical Power Range
01
Product Description
Brief Overview
SRXG-2020AW, with an operating bandwidth of 47~1000MHz, is a low-power, high-performance, cost-effective triple play, FTTH CATV optical receiver, that complies with EPON, GPON, XG-PON FTTH network, available for both analog television and digital television. Products with high sensitivity optical receiver tube and special low noise matching circuit. Receiving at high optical power can be adjusted by PAD level, played limiting output, so SRXG-2020AW within a large dynamic range of the received optical power of +2 dBm ~-21dBm, have excellent characteristics.
Triple play, fiber to the home, using the SRXG-2020AW can save a lot of optical fiber amplifier power resources. For operators, can greatly reduce the cost of building the network.
Functional Feature

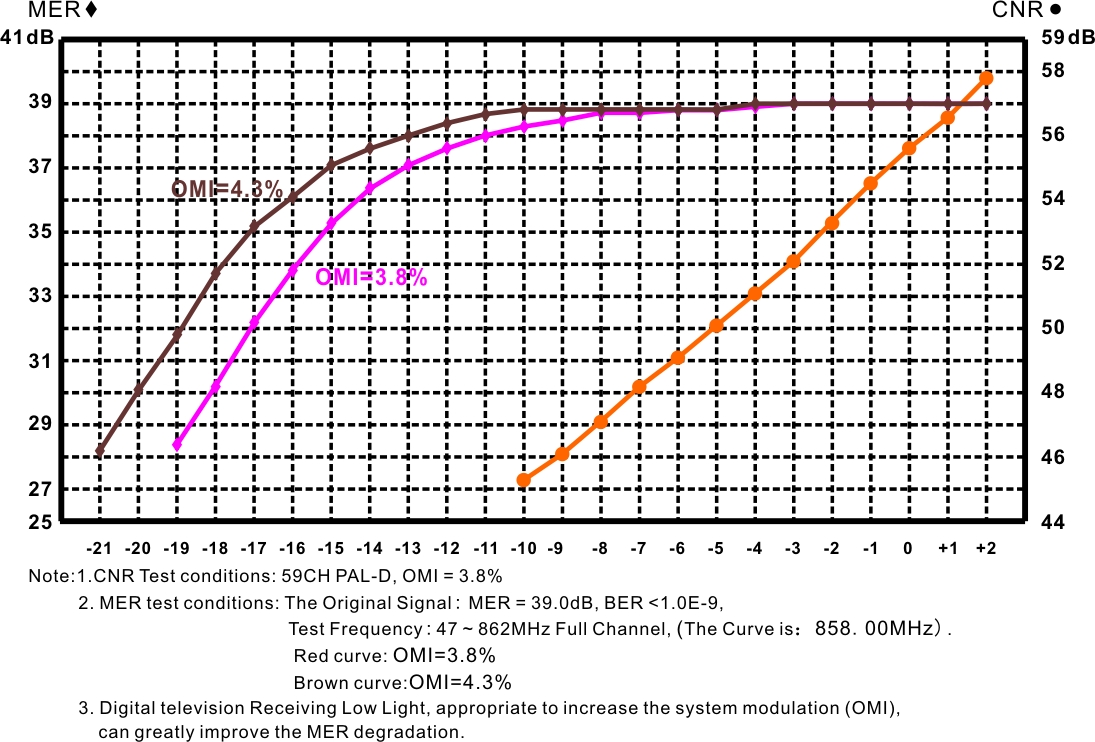

1. Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45.3dB)
2. Wide dynamic receiving optical power range: within Pin=-16, MER≥36.1dB
3. Applicable EPON, GPON, XG-PON FTTH network
4. Can save a large number of optical power resources, and greatly reduce the network
configuration cost
5. Within 47~1000MHz bandwidth, all with excellent flatness features ( FL≤±0.75dB )
6. Metal case, offer a safeguard for optoelectronic sensitive devices
7. High output level to support plenty of users
8. Low power consumption, high performance, high-cost performance
|
SRXG-2020AW FTTH XG-PON Active Fiber Optical Node with WDM |
||||||
|
Performance |
Index |
Supplement
|
||||
|
Optic Feature |
CATV Work wavelength |
(nm) |
1540~1563 |
|
||
| Pass wavelength |
(nm) |
1270/1577 1310/1490 |
|
|||
| Channel Isolation |
(dB) |
≥40 |
1550nm &1490nm |
|||
| Receiving power |
(dBm) |
+2~-18 |
Analog TV (CNR>45dB) |
|||
|
+2~-20 |
Digital TV (MER>30dB) |
|||||
| Optical return loss |
(dB) |
≥55 |
|
|||
| Optical fiber connector |
|
SC/APC |
|
|||
|
RF Feature |
Work bandwidth |
(MHz) |
47~1000 |
|
||
| Flatness |
(dB) |
≤±0.75 |
47~1000MHz |
|||
| Output level |
(dBμV) |
>78 |
Pin=-1~-14dBm AGC |
|||
| Return loss |
(dB) |
≥14 |
47 ~ 862MHz |
|||
| Output impedance |
(Ω) |
75 |
|
|||
| Output port Number |
|
1 |
|
|||
| RF tie-in |
|
F-Female |
|
|||
|
Analog TV Link Feature |
Test channel |
(CH) |
59CH(PAL-D) |
|
||
| OMI |
(%) |
3.8 |
|
|||
| CNR1 |
(dB) |
53.3 |
Pin=-2dBm |
|||
| CNR2 |
(dB) |
45.3 |
Pin=-10dBm |
|||
| CTB |
(dB) |
≤-61 |
|
|||
| CSO |
(dB) |
≤-61 |
|
|||
|
Digital TV Link Feature |
OMI |
(%) |
4.3 |
|
||
| MER |
(dB) |
≥36 |
Pin=-16dBm |
|||
|
≥30 |
Pin=-20dBm |
|||||
| BER |
(dB) |
<1.0E-9 |
Pin:+2~-21dBm |
|||
|
General Feature |
Power supply |
(V) |
DC+12V |
±1.0V |
||
| Power Consume |
(W) |
≤3 |
+12VDC, 210mA |
|||
| Work Temp |
(℃) |
-20 ~ +55 |
|
|||
| Storage Temp |
(℃) |
-40 ~ 85 |
|
|||
| Work relative temp |
(%) |
5 ~ 95 |
|
|||
| Size |
(mm) |
50×88×22 |
||||
