SR822 Waterproof Anti-thunder Outdoor Bi-directional CATV Trunk Amplifier
Model Number: SR822
Brand: Softel
MOQ: 1
Waterproof and lightning-proof
Adopt PHILIPS, NEC imported power doubler modules
Plug-in attenuator and equaliser, fixed or adjustable
01
Product Description
1. Product Summary
Suitably used in bi-directional transmission (can be reserved) and signal equalization of multi-class trunk transmission or high-required distributive network. Adopt PHILIPS, NEC imported power doubler modules. Audio pre-amplifier is low-noise microwave tube push-pull amplifier to insure enough gain. It has 1 input and 2 outputs, and each connection has over-current protection. The output branch or distributiveness can be changed following it. Double-equalizer is used, so adjusting multi-class transmission flatness is simple and convenient. Attenuator and equalizer are plug-in, so customers can choose fixed or adjustable style. High-reliable switch power (or linear power) and strict waterproof and anti-thunder design insure steady durative work.
| Item | Unit | Technical Parameters | ||||
| Forward Transmission | ||||||
| Frequency Range | MHz | 47/54/85~862 | 47/54/85~750 | 47/54/85~550 | ||
| Rated Gain | dB | ≥30 | ≥30 | ≥30 | ||
| Flatness In Band | dB | ±0.75 | ||||
| Rated Input Level | dBμV | 72 | ||||
| Rated Output Level | dBμV | 102 | 102 | 102 | ||
| Gain Adjustable Range | dB | Adjustable: 0~15dB, Fixed: 3,6,9,12,15 | ||||
| Slope Adjustable Range | dB | Adjustable: 0~24dB, Fixed: 6,9,12,15,18 | ||||
| Noise Figure | dB | ≤12 | ||||
| CTB | dB | 60 | ||||
| CSO | dB | 60 | ||||
| Return Loss | dB | ≥14 | ||||
| Reverse Transmission | ||||||
| Frequency Range | MHz | 5~30/42/65(or specified by user) | ||||
| Flatness In Band | dB | ±0.75 | ||||
| Return Loss | dB | ≥14 | ||||
| Rated Gain | dB | 0 or 20 selected | ||||
| MAX Output Level | dBμV | ≥110 | ||||
| Gain Adjustable Range | dB | 0~15 | ||||
| Slope Adjustable Range | dB | 0~10 | ||||
| General response | ||||||
| Power Voltage (50Hz) | V | A: ~(130-265) V, B:~(30-80)V ,C:~(90-130)V | ||||
| Thunder Stroke | KV | 5 (10/700μS) | ||||
| Dimension | mm | 270×215×118 | ||||

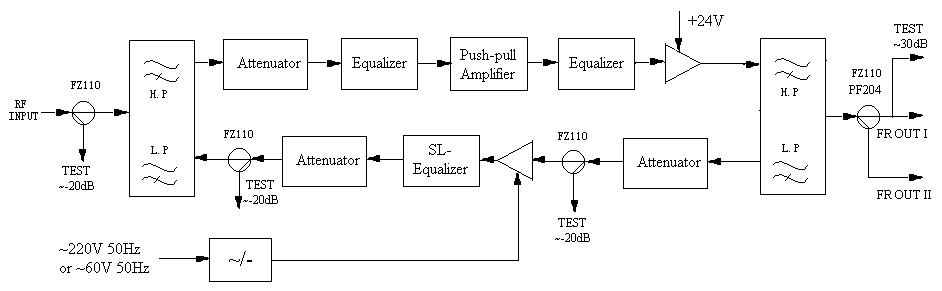

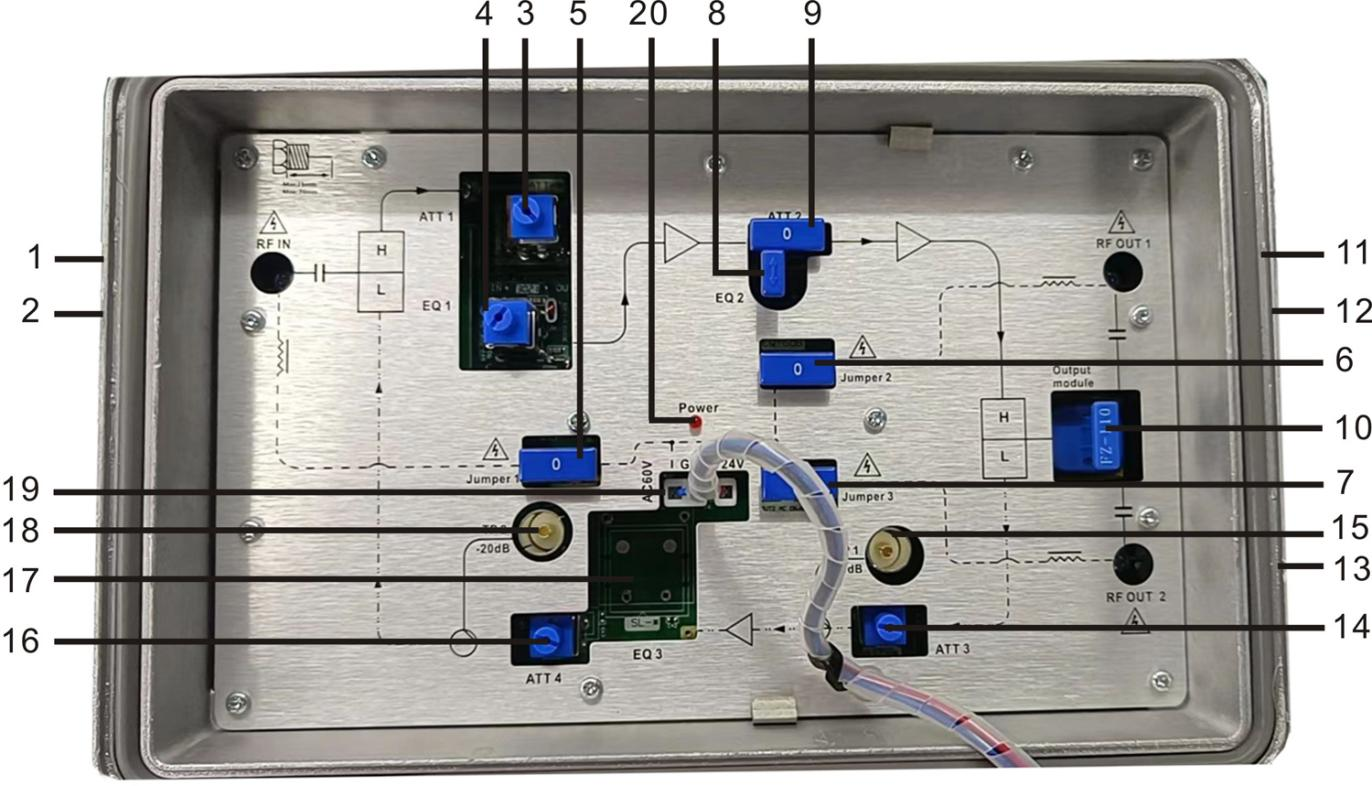

1. RF Input 2. -20dB Input RF Test Port 3. Forward ATT1
4. Forward EQ1 5. Power Supply Pass Plug-in 1 6. Power Supply Pass Plug-in 2
7. Power Supply Pass Plug-in 3 8. EQ2 (-6dB) 9. Forward ATT Plug-in 2
10. Output Tap or Splitter (Optional) 11. RF Output 1 12.-30dB Output RF Test Port
13. RF Output 2 14. Reverse ATT1 15. Reverse RF Test Port 1
16. Reverse ATT2 17. Reverse EQ 18. Reverse RF Test Port 2
19. Mainboard Power Supply Input 20. Power Supply LED
SR822 Waterproof Anti-thunder Outdoor Bi-directional CATV Trunk Amplifier Datasheet.pdf
