SR812ST-R 2 Ports Outdoor Fiber Optical Receiver with Return Path
Model Number: SR812ST-R
Brand: Softel
MOQ: 1
Excellent AGC Performance
High Response PIN Photoelectric Conversion
Working Frequency at 5-42&54-862MHz or 5-65MHz&87-862MHz
01
Product Description
Product Summary
SR812ST-R is our latest high-grade two-output CATV network optical receiver. The pre-amplifier adopts full-GaAs MMIC, post-amplifier adopts the GaAs module. Optimized circuit design coupled with our 15 years of professional design experience, make the equipment achieve good performance indexes. Microprocessor control, digital display of the parameters, the engineering debugging are especially easy. It is the main equipment to build the CATV network.

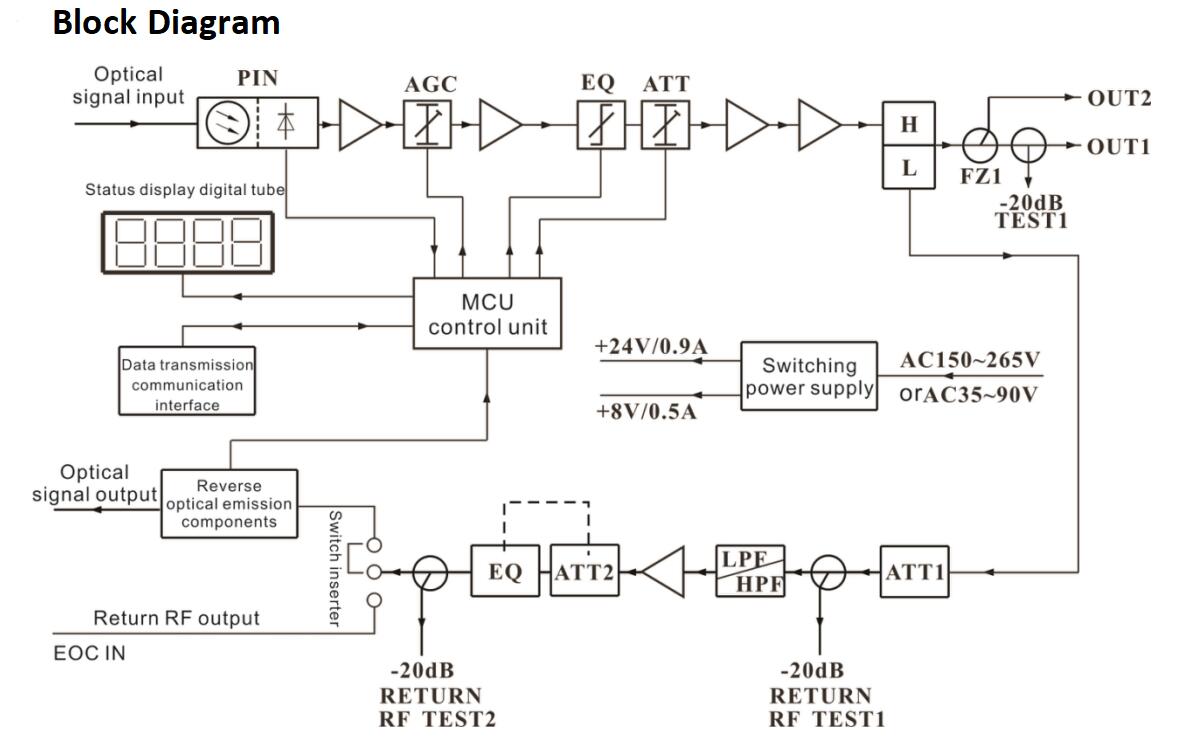

Performance Characteristics
- High response PIN photoelectric conversion tube.
- Optimized circuit design, SMT process production, and optimized signal path make the photoelectric signal transmission more smooth.
- Specialized RF attenuation chip, with good RF attenuation and equilibrium linear, high accuracy.
- GaAs amplifier device, power doubler output, with high gain and low distortion.
- Single Chip Microcomputer (SCM) control equipment working, LCD display the parameters, convenience and intuitive operation, and stable performance.
- Excellent AGC performance, when the input optical power range is －9～＋2dBm, the output level keeps unchanged, and CTB and CSO basically unchanged.
- Reserved data communication interface, can connect with class Ⅱ network management responder, and access the network management system.
- Return emission can select burst mode to sharply decrease the noise convergence and reduce the forepart receiver number.
|
SR812ST-R Bidirectional Outdoor 2-Output Fiber Optical Receiver |
|||||
|
Item |
Unit |
Technical Parameters |
|||
|
Forward optical receiving part |
|||||
|
Optical Parameters |
|||||
|
Receiving Optical Power |
dBm |
-9 ~ +2 |
|||
|
Optical Return Loss |
dB |
>45 |
|||
|
Optical Receiving Wavelength |
nm |
1100 ~ 1600 |
|||
|
Optical Connector Type |
|
FC/APC, SC/APC or specified by the user |
|||
|
Fiber Type |
|
Single Mode |
|||
|
Link Performance |
|||||
|

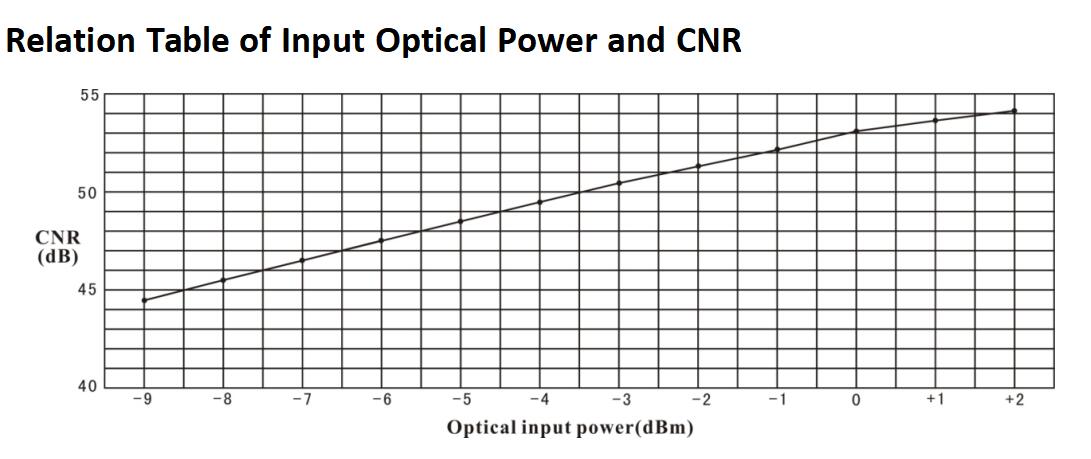

C/N |
dB |
≥ 51（-2dBm input） |
|||
|
C/CTB |
dB |
≥ 65 |
Output Level 108 dBμV Balanced 6dB |
||
|
C/CSO |
dB |
≥ 60 |
|||
|
RF Parameters |
|||||
|
Frequency Range |
MHz |
45 ~862 |
45 ~1003 |
||
|
Flatness in Band |
dB |
±0.75 |
±0.75 |
||
|
Rated Output Level |
dBμV |
≥ 108 |
≥ 108 |
||
|
Max Output Level |
dBμV |
≥ 114 |
≥ 112 |
||
|
Output Return Loss |
dB |
（45 ~550MHz）≥16/(550~1000MHz)≥14 |
|||
|
Output Impedance |
Ω |
75 |
75 |
||
|
Electronic Control EQ Range |
dB |
0～10 |
0～10 |
||
|
Electronic Control ATT Range |
dBμV |
0～20 |
0～20 |
||
|
Return Optical Emission Part |
|||||
|
Optical Parameters |
|||||
|
Optical Transmit Wavelength |
nm |
1310±10, 1550±10 or specified by the user |
|||
|
Output Optical Power |
mW |
0.5, 1, 2 |
|||
|
Optical Connector Type |
|
FC/APC, SC/APC or specified by the user |
|||
|
RF Parameters |
|||||
|
Frequency Range |
MHz |
5 ~ 65（or Specified by the User） |
|||
|
Flatness in Band |
dB |
±1 |
|||
|
Input Level |
dBμV |
72 ~ 85 |
|||
|
Output Impedance |
Ω |
75 |
|||
|
NPR dynamic range |
dB |
≥15（NPR≥30 dB） Use DFB laser |
≥10（NPR≥30 dB） Use FP laser |
||
|
General Performance |
|||||
|
Supply Voltage |
V |
A：AC（150~265）V；B：AC（35~90）V |
|||
|
Operating Temperature |
℃ |
-40~60 |
|||
|
Storage Temperature |
℃ |
-40~65 |
|||
|
Relative Humidity |
% |
Max 95% no condensation |
|||
|
Consumption |
VA |
≤ 30 |
|||
|
Dimension |
mm |
260（L）╳ 200（W）╳ 130（H） |
|||
