SR2040AW FTTH AGC CATV Fiber Optical Receiver with WDM
Model Number: SR2040AW
Brand: Softel
MOQ: 1
Built-in AGC and WDM
Aluminum-ally Metal Casing
2 RF Outputs of RF Level 87±2 dBμV
01
Product Description
Brief Overview
SR2040AW, with an operating bandwidth of 47~1000MHz, is a low-power, high-performance, cost-effective triple play, FTTH CATV fiber optical receiver, workable both in analog television and digital television. Products with high sensitivity optical receiver tube and special low noise matching circuit. SR2040AW within a large dynamic range of the received optical power of +2 dBm ~-18 dBm, has excellent characteristics and practical performances.
Functional Features
1. Extra-low noise and high performance
2. Wide dynamic receiving optical power range: within Pin=-16, MER≥36dB
3. Applicable GPON, EPON, compatible with any FTTx PON technology
4. It saves a large number of optical power resource, and greatly reduce the network configuration cost
5. Within 47~1000MHz bandwidth, all with excellent flatness features ( FL≤±1dB )
6. Metal case, offer a safeguard for optoelectronic sensitive devices
7. High output level, which can be used by many users
8. Low power consumption, high performance, high-cost performance
Notes and Tips
1. The power adapter for this equipment: Input 110-220V, output DC 12V(0.6A)
2. Keep the optical connector clean, the bad link will cause too low an RF output level
3. The built-in RF adjustable attenuator(PAD) of equipment can debug suitable levels for system users.
4. To avoid device damage, DO not adjust by yourself.
| SR2040AW FTTH AGC CATV Fiber Optical Receiver with WDM | ||||
| Performance | Index | Supplement | ||
|
Optic Feature |
CATV Work wavelength |
(nm) |
1540~1560 |
|
| Pass wavelength |
(nm) |
1310, 1490 |
||
| Channel Isolation |
(dB) |
≥35 |
|
|
| Responsibility | (A/W) |
≥0.85 |
1310nm |
|
|
≥0.9 |
1550nm |
|||
| Receiving power | (dBm) |
+2~-18 |
|
|
| Optical return loss |
(dB) |
≥55 |
||
| Optical fiber connector |
SC/APC |
|||
|
RF
Feature |
Work bandwidth |
(MHz) |
47~1000 |
|
| Flatness |
(dB) |
≤±1 |
47~1000MHz |
|
| Output level(Port1&2) |
(dBμV) |
87±2 |
Pin=+0~-10dBm AGC |
|
| Return loss |
(dB) |
≥14 |
47 ~ 862MHz |
|
| Output impedance |
(Ω) |
75 |
||
| Output port Number |
2 |
|||
| RF tie-in |
F-Female |
|||
|
Analog TV Link Feature |
Test channel |
(CH) |
59CH(PAL-D) |
|
| OMI |
(%) |
3.8 |
||

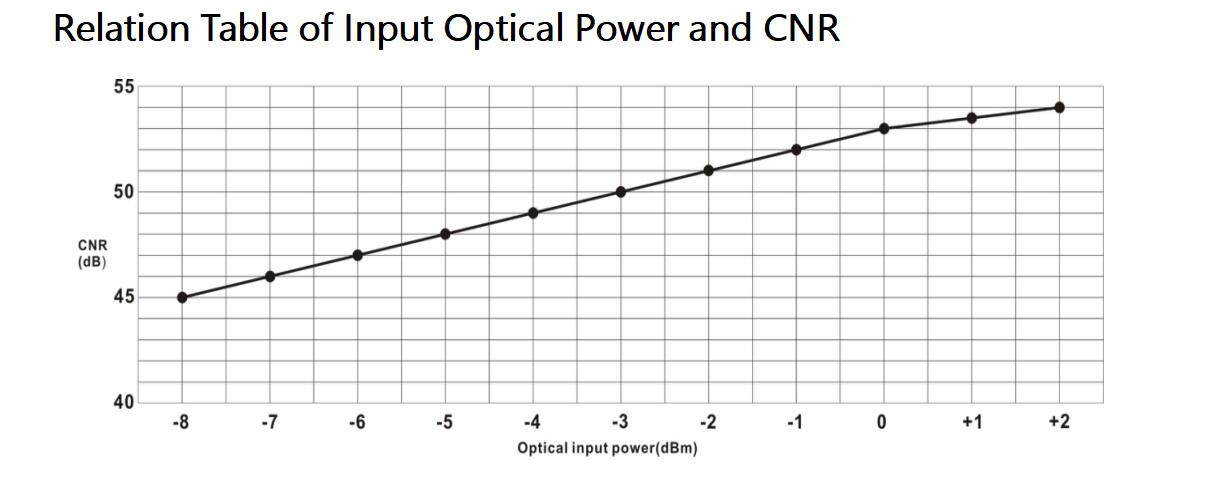

| CNR1 |
(dB) |
53.3 |
Pin=-2dBm |
|
| CNR2 |
(dB) |
45.3 |
Pin=-10dBm |
|
| CTB |
(dB) |
≤-61 |
||
| CSO |
(dB) |
≤-61 |
||
|
Digital TV Link Feature |
OMI |
(%) |
4.3 |
|
|
MER |
(dB) |
≥36 |
Pin=-16dBm |
|
|
≥30 |
Pin=-20dBm |
|||
| BER |
(dB) |
<1.0E-9 |
Pin:+2~-21dBm |
|
|
General Feature |
Power supply |
(V) |
DC+12V |
±1.0V |
| Power Consume |
(W) |
≤3 |
+12VDC, 180mA |
|
| Work Temp |
(℃) |
-25~ +65 |
||
| Storage Temp |
(℃) |
-40 ~ 70 |
||
| Work relative temp |
(%) |
5 ~ 95 |
||
|
Size |
(mm) |
50×88×22 |
||
