SR201AW FTTH Mini Fiber Optical Receiver with WDM
Model Number: SR201AW
Brand: Softel
MOQ: 1
Built-in FWDM
Lower Input Optical Range
Excellent Frequency and Distortion Responses with Low Noise
01
Product Description
Introduction
SR201AW is a mini indoor optical receiver built-in WDM, designed for FTTB/FTTP/FTTH transmission applications. It delivers excellent frequency and distortion responses with low noise, high RF output, and low power consumption, whose High performance, low receiver optical power, and lower cost are FTTH solution's best selection for ISP & TV Operators. Designed with single-mode fiber-pigtailed and it is available with various connector options.

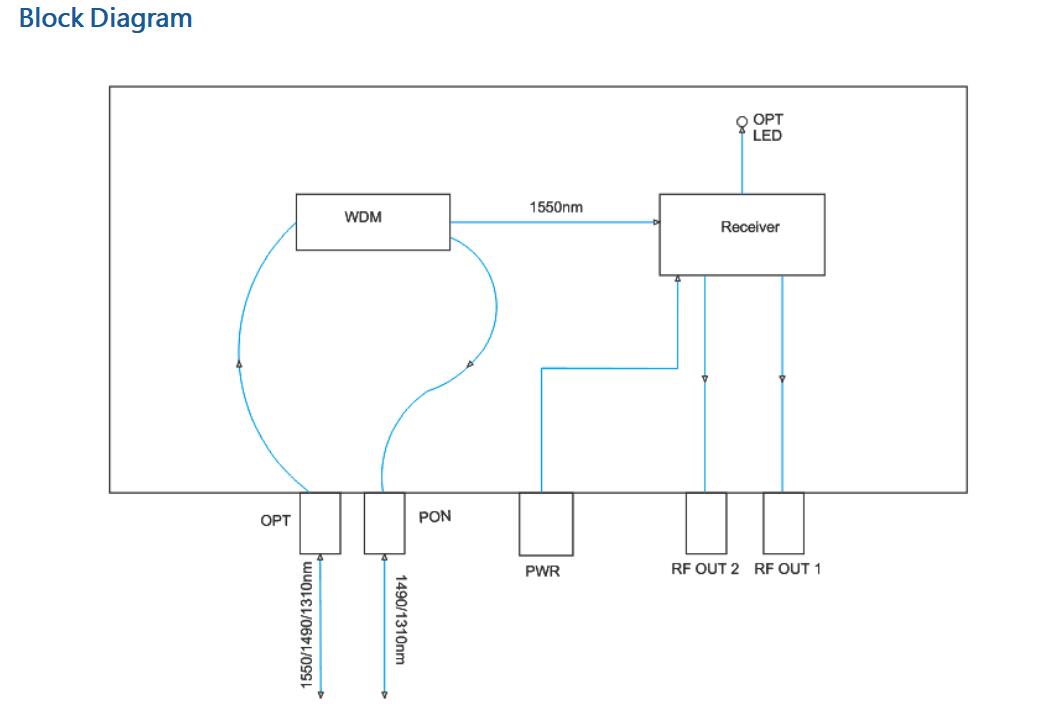

The built-in WDM integrated for 1550nm video signal and 1490nm /1310nm data signal in one fiber, is suitable and easy to be deployed in the EPON/XPON or any other related PON network.
Features
- Built-in High-performance FWDM
- RF Frequency up to 1000MHz
- Lower input optical range: +2 ~ -18dBm
- Output level up to 76dBuV (@-15dBm power input);
- 2 RF Outputs optional
- Low Power Consumption<1.0W;
- Customized logo and Packing Design Available
NOTE
1. When using the RF connector, the RF input interface must be tightened to STB. Otherwise, the ground is bad and will cause high-frequency segments of Digital TV signals MER degradation.
2. Keep the optical connector clean, the bad link will cause too low an RF output level.
|
SR201AW FTTH Mini Fiber Optical Receiver with WDM |
|||||
|
Item |
Description |
Value |
Unit |
Conditions / Notes |
|
|
|
Optical Specifications (Forward Path) | ||||
|
1 |
Wavelength |
1550/1490/1310 |
nm |
Com port | |
|
1490/1310 |
nm |
For ONT | |||
|
2
3 |
Optical Power Input Range |
-18～+2 |
dBm |
||
| AGC Range |
0～-12 |
dBm |
|||
|
4 |
Optical Input Return Loss |
≥45 |
dB |
||
|
|
RF Specifications (Forward Path) | ||||
|
4 |
Bandwidth |
47～1003 |
MHz |
||
|
5 |
Flatness |
±1.0 |
dB |
47～1003MHz，At 25 ℃ | |
|
6 |
Slope |
0~2.0 |
dB |
47～1003MHz，At 25 ℃ | |
|
7 |
Temperature Stability |
±1.5 |
dB |
In the operating temperature range (-25 ~ +65 ℃) | |
|
8 |
Output Level |
75±2 |
dBuV |
-15dBm input optical power, The analog channel, per channel modulation 4.0%, in the 860MHz point test, at 25℃ | |
|
9 |
Impedance |
75 |
Ohm |
||
|
10 |
Return Loss（47～1000MHz） |
≥12 |
dB |
At 25 ℃ | |
|
11 |
MER |
≥30 |
dB |
-15~-5dBm input optical power | |
|
≥24 |
dB |
-20~-16, input optical power | |||
|
12 |
Power |
< 1.0 |
W |
||
|
|
Environmental Parameters | ||||
|
13 |
Operating Temperature |
-25～65 |
℃ |
||
|
14 |
Storage Temperature |
-40～70 |
℃ |
||
|
15 |
Storage Humidity |
≤95 |
％ |
Non- condensation | |
|
|

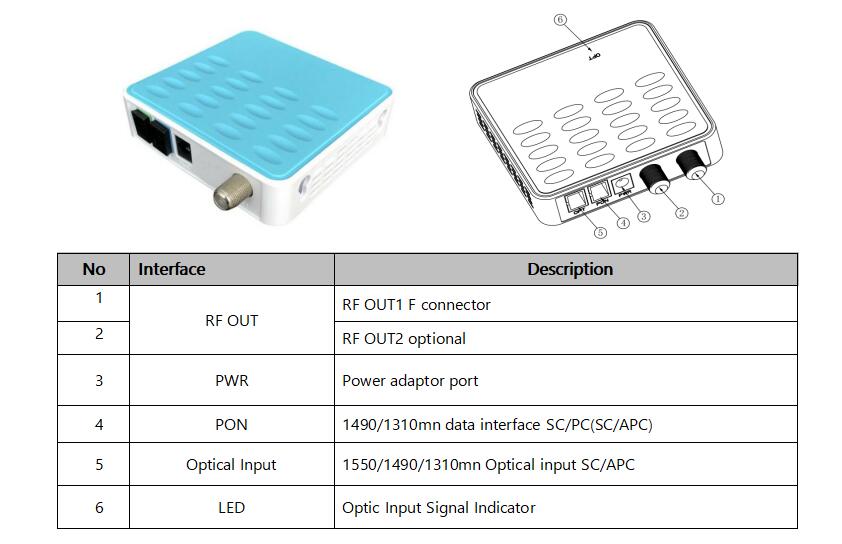

User Interface | ||||
|
16 |
Optical Connector Type |
SC/APC in, SC/PC out |
|
SC Optional,See the figure4 and5 | |
|
17 |
Power supply |
DC5V/0.5A |
|
External adapter, See the figure3 | |
|
18 |
RF Output |
RG6 Connector |
|
Optional,See the figure1 and2 | |
|
1 or 2 ports |
|
||||
|
19 |
Optical Indicator |
Shine Red or Green color |
|
Optical power <-16dBm ,redOptical power >–16dBm ,greenSee the figure6 | |
|
20 |
Housing |
90×85×25 |
mm |
||
|
21 |
Weight |
0.15 |
kg |
||
