SR100SC3 FTTH Mini Passive Optical Node with Filter
Model Number: SR100SC3-F/M-W
Brand: Softel
MOQ: 1
Affordable Economic Passive Optical Node
Optional for Wavelength Pass/Stop Filter
Optional for F-type Male and Female Connector
01
Product Description
BRIEF INTRO:
SR100SC3 series CATV converter for digital television, fiber to the home. This machine adopts the high-sensitivity optical receiving tube, without a power supply, and no power consumption. When the input optical power output level Pin=-1dBm, Vo=6 8dB V, can be economically and flexibly applied for the integration of three networks, fiber to the home network application. SR100 appearance of enamel, there are two kinds of optical mode selection:
1.SR100SC3: CATV operating wavelength 1260~1620nm.
2.SR100SC3-1550: Built-in 1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV Operating wavelength 1550nm.
NOTE:
1. SR100SC3 and the set-top box (STB) of the RF input port are directly connected.
2. When using the RF connector, the RF input interface must be tightened to STB. Otherwise, the ground is bad and may cause high-frequency segments of Digital TV signals MER degradation.
3. Keep the optical connector clean, the bad link will cause too low an RF output level
|
SR100SC3 FTTH Mini Passive Optical Node with Filter |
||||
|
Optic Feature |
Optic Feature |
Unit |
Index |
Supplement |
| CATV Work wavelength |
(nm) |
1260~1620 |
SR100SC3 |
|
|
1540~1563 |
SR100SC3-1550 |
|||
| Channel Isolation |
(dB) |
≥40 |
1550nm&1490nm |
|
| Resposibitity |
(A/W) |
≥0.85 |
1310nm |
|
|
≥0.9 |
1550nm |
|||
| Receiving power |
(dBm) |
+2~-14 |
|
|
| Optical return loss |
(dB) |
≥55 |
|
|
| Optical fiber connector |
|
SC/APC |
SR100-SC |
|
|
|
FC/APC |
SR100-FC |
||
|
RF Feature |
Work bandwidth |
(MHz) |
45~1050MHz |
|
| Output level |
(dBμV) |
>68 |
Digital TV (Pin=-1dBm) |
|
| Return loss |
(dB) |
≥14 |
47~862MHz |
|
| Output impedance |
(Ω) |
75 |
|
|
| Output port number |
|
1 |
|
|
| RF tie-in |
|
F-Female |
|
|
|
DigitalTV eature |
OMI |
(%) |
4.3 |
|
| MER |
(dB) |
≥38 |
Pin=-1dBM |
|
|
≥30 |
Pin=-13dBm |
|||
| BER |
|
<1.0E-9 |
Pin:+2~-14dBm |
|
|
General feature |
Work temp |
(℃) |
-20~+55 |
|
| Storage temp |
(℃) |
-40~85 |
|
|
| Work relative temp |
(%) |
5~95 |
|
|
| Size (W)×(D)×(H) |
(mm) |
23×53×12 |
A Type (Enamel Type) |
|
|
Ф13×28 |
B Type (Fiber Type) |
|||
|
50×88×22 |
C Type (Box Type) |
|||
|

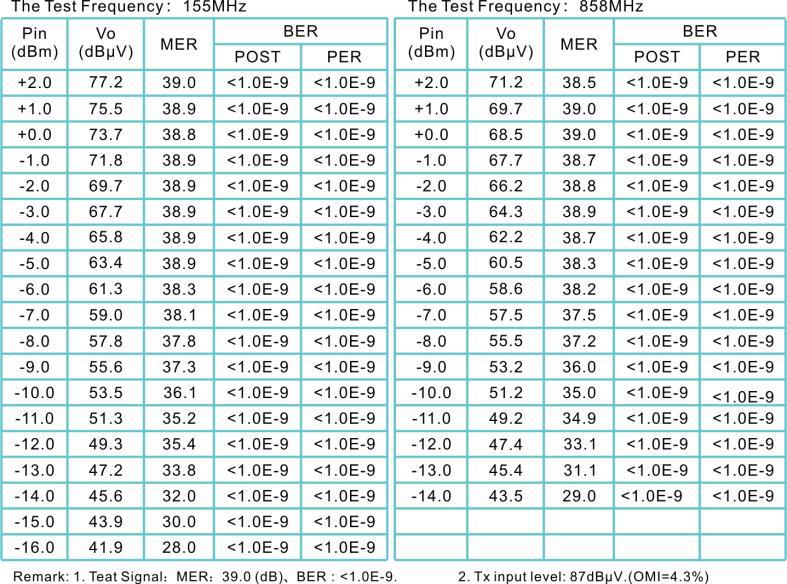

Order Info |
||||
|
Model |
Input Wavelength |
CATV Operating Wavelength |
RF Output Type |
Casing Color |
|
SR100SC3-F-W |
1310 or 1550nm |
1260~1620nm |
F-female |
White |
|
SR100SC3-M-W |
1310 or 1550nm |
1260~1620nm |
F-male |
White |
|
SR100SC3-F-G |
1310 or 1550nm |
1260~1620nm |
F-female |
Green |
|
SR100SC3-M-G |
1310 or 1550nm |
1260~1620nm |
F-male |
Green |
|
SR100SC3-1550-F-W |
1310,1490/1550nm |
1540~1563nm |
F-female |
White |
|
SR100SC3-1550-M-W |
1310,1490/1550nm |
1540~1563nm |
F-male |
White |
|
SR100SC3-1550-F-G |
1310,1490/1550nm |
1540~1563nm |
F-female |
Green |
|
SR100SC3-1550-M-G |
1310,1490/1550nm |
1540~1563nm |
F-male |
Green |
SR100SC3 Series FTTH Opical Passive Node Spec Sheet.pdf
