SR1002S FTTB Fiber Optical Receiver for CATV & XPON
Model Number: SR1002S
Brand: Softel
MOQ: 1
High and Stable Output RF Level
Wide Range Receiving Optical Power
Support Remote Network Management (Optional)
01
Product Description
Brief Introduction
SR1002S optical receiver is our latest 1GHz FTTB optical receiver. With a wide range of receiving optical power, high output level, and low power consumption. It is the ideal equipment to build a high-performance NGB network.

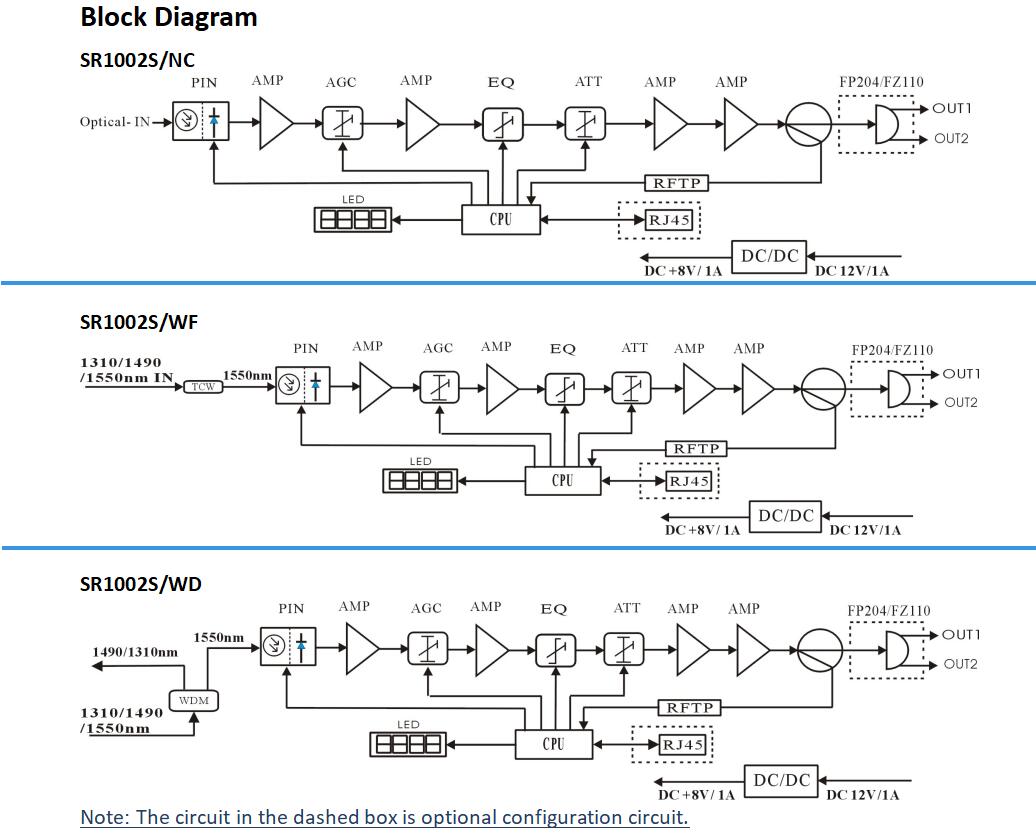

There are three models optional:
SR1002S/NC: The RFTV operating wavelength is 1100 ~ 1620nm.
SR1002S/WF: Built-in channel filter, the RFTV operating wavelength is 1550nm.
SR1002S/WD: Built-in CWDM, RFTV operating wavelength is 1550nm. It can pass 1310nm or
1490nm wavelength. It can connect EPON, GPON, and ONU.
Performance Characteristics
-Adopt advanced optical AGC control technique, the maximum AGC control range (adjustable) is －9～＋2dBm;
-RF amplifier part adopts the high-performance low power consumption GaAs chip, the highest output level up to 114dBuv;
-EQ and ATT both use the professional electric control circuit, making the control more accurate, and operation more convenient;
-Built-in the Chinese standard II class network management responder, support remote network management (optional);
-Compact structure, convenient installation, is the first choice equipment of FTTB CATV network;
-External high-reliability low power consumption power supply;
|
SR1002S FTTB Fiber Optical Receiver for CATV & XPON |
||||
|
Item |
Unit |
Technical Parameters |
||
|
Optical Parameters |
||||
|
Receiving Optical Power |
dBm |
-9 ~ +2 |
||
|
Optical Return Loss |
dB |
>45 |
||
|
Optical Receiving Wavelength |
nm |
1100 ~ 1600 or 1530 ~ 1620 |
||
|
Optical Connector Type |
|
SC/APC |
||
|
Fiber Type |
|
Single mode |
||
|
Link Parameters |
||||
|

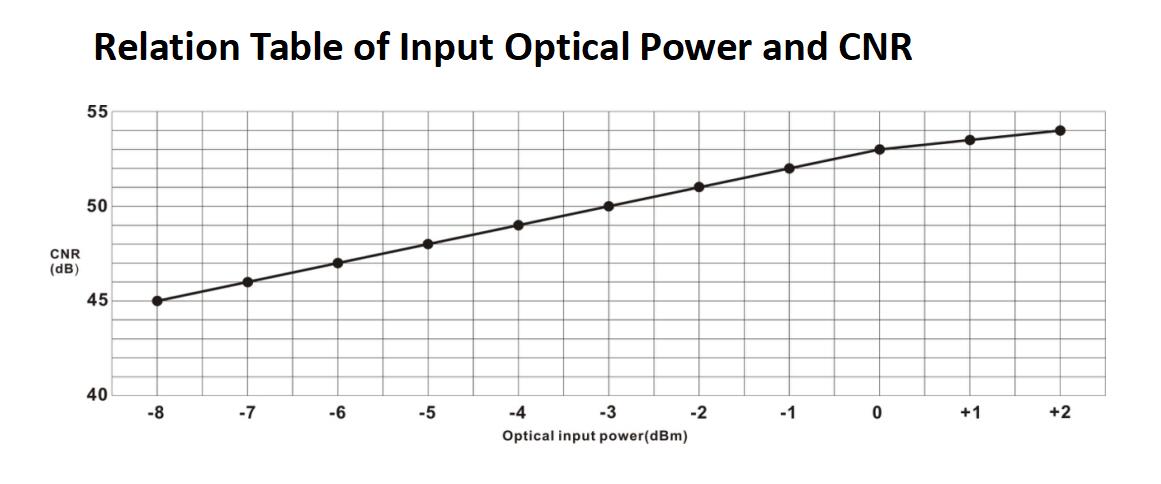

C/N |
dB |
≥ 51 |
Note 1 |
|
|
C/CTB |
dB |
≥ 60 |
||
|
C/CSO |
dB |
≥ 60 |
||
|
RF Parameters |
||||
|
Frequency Range |
MHz |
45 ~862/1003 |
||
|
Flatness in Band |
dB |
±0.75 |
||
|
Rated Output Level |
dBμV |
108 (FZ110 configuration, with 8dB tilt output) |
104 (Two-way splitter, with 8dB tilt output) |
|
|
Max Output Level |
dBμV |
114(-7 ~ +2 tap configuration) |
110 (-7 ~ +2 two-way splitter) |
|
|
Output Return Loss |
dB |
≥16 |
||
|
Output Impedance |
Ω |
75 |
||
|
Electrical control EQ range |
dB |
0～15 |
||
|
Electrical control ATT range |
dB |
0～15 |
||
|
General Characteristics |
||||
|
Power Voltage |
V |
DC12V/1A |
||
|
Operating Temperature |
℃ |
-40~60 |
||
|
Consumption |
VA |
≤8 |
||
|
Dimension |
mm |
142（L）* 79（W）* 36（H） |
||
