SOA-4X23-MINI 1550nm Mini EYDFA Erbium-Doped Fiber Amplifier Built in 1310/1490/1550 WDM
Model Number: SOA-4X23-MINI
Brand: Softel
MOQ: 1
Adopts JDSU or Oclaro Pump laser
Multi-ports output, can built in 1310/1490/1550 WDM
With 4*fans for heat dissipation
01

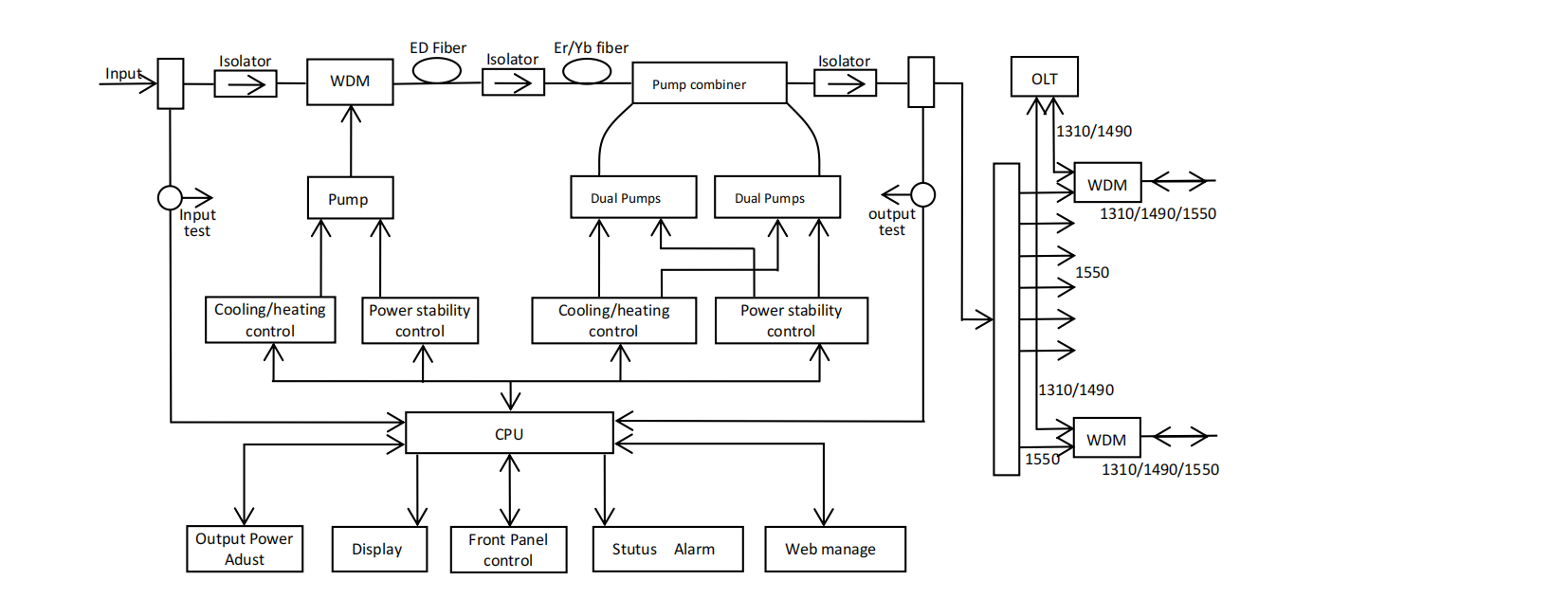

Product Description
Brief Overview
EYDFA-MINI CATV erbium-doped fiber amplifier mini device which designed according to the communication level standard, It is mainly used for television image signals, digital TV, telephone voice signal and the signal of the data (or compressed data) optical fiber transmission over long distance. technology design pays attention to the product’s cost, chose to build a large and medium-sized 1550nm catv optical fiber transmission network economical transmission device.
Functional Features
- Output adjustable by buttons in the front panel or , the range is 0～5dBm.
- Maintenance function of one-time downward attenuation of 6dBm by buttons in the front panel, to facilitate the optical fiber hot-plug operation without turn off The device.
- Multi-ports output, can built in 1310/1490/1550WDM.
- USB port facilitates device upgrade.
- The laser turn on/off by locks keys in the front panel.
- Adopts JDSU or Oclaro Pump laser.
- Led displays the working condition of the machine.
- Dual power hot-plug power supply for choice, 110V,220VAC.
| Items | Parameter | |||||||||
| Output (dBm) | 31 | 32 | 33 | 34 | 35 | 36 | 37 | 38 | 39 | 40 |
| Output (mW) | 1250 | 1600 | 2000 | 2500 | 3200 | 4000 | 5000 | 6400 | 8000 | 10000 |
| Input (dBm) | -3 ~ +10 | |||||||||
| Range or output adjustment (dBm) | 5 | |||||||||
| Wavelength (nm) | 1540 ~ 1565 | |||||||||
| Output stability (dB) | <±0.3 | |||||||||
| Optical return loss (dB) | ≥45 | |||||||||
| Fiber connector | FC/APC, SC/APC, SC/UPC, LC/APC, LC/UPC | |||||||||
| Noise figure (dB) | <6.0 (input 0dBm) | |||||||||
| Connector type | RJ45, USB | |||||||||
| Powerconsumption (W) | ≤80 | |||||||||
| Voltage (V) | 110VAC, 220VAC | |||||||||
| Working temp (℃) | 0 ~ 55 | |||||||||
| Size (mm) | 260(L)x186(W)x89(H) | |||||||||
| NW (Kg) | 3.8 | |||||||||
SOA-4X23-MINI 1550nm Mini EYDFA Erbium-Doped Fiber Amplifier.pdf
