SHP200 1U 3 Module Slots Maximum 800Mbps DTV Digital TV Head-end Processor
Model Number: SHP200
Brand: Softel
MOQ: 1
Support flexible combination of any different type of modules
Maximum 800M data processing
Support Web management, Update via web
01
Product Description
1. Product Overview
SHP200 DTV head-end processor is the newest generation of professional head-end processing equipment. This 1-U case comes with 3 independent module slots, and it can be combined with different modules as your head-end system according to your operation requirements. Each module can be configured individually based on the applications including encoding, decoding, trans-coding, multiplexing, descrambling and modulating processing. SHP200 head-end processor brings a whole new level of intelligence and high performance to the network at a cost effective price.
2. Key features

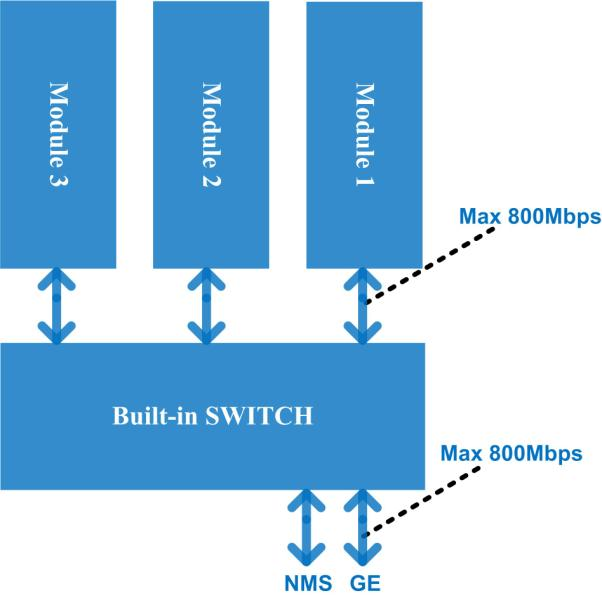

- Modularized plug-in design, 1U chassis and 3 slots
- Support flexible combination of any different type of modules
- Maximum 800M data processing
- Support 1 GE bi-direction(Data port), RJ45 interface
- Support Web management, Update via web
- Support flexible combination of any different type of modules
- Maximum 800M data processing
- Support 1 GE bi-direction(Data port), RJ45 interface
- Support Web management, Update via web
| SHP200 DTV Head-end Processor | |
| Dimension(W×L×H) | 440mm×324mm×44mm |
| Approx weight | 6kg |
| Environment | 0~45℃(work); -20~80℃(Storage） |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
| 4 CVBS/SDI Encoding Module SFT214B | ||
| Module Specifications | Input | 4 CVBS (DB9 to RCA) or 4 SDI (BNC) |
| Output | 1MPTS and 4 SPTS output over UDP/RTP, unicast and multicast | |
| Video Encoding | Video format | MPEG-2, MPEG4 AVC/H.264 |
| Image format | PAL, NTSC SD signal (Only for CVBS input) | |
| Resolution | Input:720*576 @50iOutput:720*576/352*288/320*240/320*180/176*144/160*120/160*90@50HzInput: 720*480 @60iOutput:720*480/352*288/320*240/320*180/176*144/160*120/160*90@60Hz | |
| Rate Control | CBR/VBR | |
| GOP structure | IPPP, IBPBP, IBBPB, IBBBP | |
| Video bitrate | 0.5~5Mbps | |
| Audio Encoding | Audio format | MPEG1 Audio Layer 2, LC-AAC, HE-AAC |
| Sampling rate | 48KHz | |
| Bits per sample | 32-bit | |
| Bit-rate | 48-384Kbps each channel | |
| Support Logo, Caption, QR Code insertion | ||
| 4 HDMI Encoding Module SFT224H/HV | ||
| Module Specifications | Input | 4×HDMI (1.4) input, HDCP 1.4 |
| Output | 1 MPTS and 4 SPTS output over UDP/RTP/RTSP; IPv4, IPv6 output | |
| Video Encoding | Video format | HEVC/H.265 & MPEG 4 AVC/H.264—SFT224H HEVC/H.265—SFT224HV |
| Resolution | 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P; 1280×720_60P, 1280×720_59.94P, 1280×720_50PInput: 1920×1080_60i, 1920×1080_59.94i, 1920×1080_50iOutput: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P | |
| Chroma | 4:2:0 | |
| Rate Control | CBR/VBR | |
| GOP structure | IBBP, IPPP | |
| Bitrate (each channel) | 0.5Mbps~20Mbps (H.265)4 Mbps~20Mbps (H.264) | |
| Audio Encoding | Audio format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough |
| Sampling rate | 48KHz | |
| Bit-rate (each channel) | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)24 Kbps~128 Kbps (HE-AAC)18 Kbps~56 Kbps (HE-AAC V2) | |
| Audio Gain | 0~255 | |
| Support Logo, QR Code insertion–Optional as per order | ||
| 4 HDMI/SDI Encoding Module SFT224V | ||
| Module Specifications | Input | 4×SDI/HDMI (1.4) input, HDCP 1.4 |
| Output | 1 MPTS and maximum 4 SPTS output over UDP/RTP/RTSP; IPv4, IPv6 | |
| Video Encoding | Video format | HEVC/H.265 & MPEG 4 AVC/H.264 |
| Resolution | HDMI:3840×2160_30P, 3840×2160_29.97P;(Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264)1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P;(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)
1280×720_60P, 1280×720_59.94P, 1280×720_50P (Encoding 4 CHs per module for H.264 and H.265)
SDI: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P; (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) 1280×720_60P, 1280×720_59.94P, 1280×720_50P (Encoding 4 CHs per module for H.264 and H.265) Input: 1920×1080_60i, 1920×1080_59.94i, 1920×1080_50i Output: 1920×1080_60P, 1920×1080_59.94P, 1920×1080_50P (Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264) |
|
| Chroma | 4:2:0 | |
| Rate Control | CBR/VBR | |
| GOP structure | IBBP, IPPP | |
| Bitrate | 0.5Mbps~20Mbps (each channel) | |
| Audio Encoding | Audio format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough |
| Sampling rate | 48KHz | |
| Bit-rate (each channel) | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)24 Kbps~128 Kbps (HE-AAC)18 Kbps~56 Kbps (HE-AAC V2) | |
| Audio Gain | 0~255 | |
| 8 CVBS Encoding Module SFT218S | ||
| Module Specifications | Input | 8 CVBS video, 8 Stereo Audio (DB15 to RCA) |
| Output | 1 MPTS and 8 SPTS output over UDP/RTP, unicast and multicast | |
| Video Encoding | Video format | MPEG4 AVC/H.264 |
| Image format | PAL, NTSC SD signal | |
| Resolution | 720×576i, 720×480i | |
| Rate Control | CBR/VBR | |
| GOP structure | IPP | |
| Video Bitrate | 1~7Mbps each channel | |
| Audio Encoding | Audio format | MPEG-1 Layer 2 |
| Sampling rate | 48KHz | |
| Resolution | 24-bit | |
| Bit-rate | 64/128/192/224/256/320/384Kbps each channel | |
| Support Logo, Caption, QR Code insertion (Language Supported: 中文, English, اردو, for more languages please consult us…) | ||
| 4 CVBS Encoding Module SFT214/SFT214A | ||
| Module Specifications | Input | 4 CVBS video, 4 Stereo Audio (DB9 to RCA) |
| Output | 1MPTS and 4 SPTS output over UDP/RTP, unicast and multicast | |
| Video Encoding | Video format | MPEG-2 (4:2:0) |
| Image format | PAL, NTSC SD signal | |
| Input Resolution | 720×480_60i, 544×480_60i, 352×480_60i, 352×240_60i, 320×240_60i, 176×240_60i, 176×120_60i, 720×576_50i, 704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i, 176×288_50i, 176×144_50i | |
| GOP structure | IP, IBP, IBBP, IBBBP | |
| Video Bitrate | 0.5Mbps~8Mbps per channel | |
| Support CC (closed caption) | ||
| Audio Encoding | Audio format | MPEG-1 Layer 2, DD AC3 (2.0) |
| Sampling rate | 48KHz | |
| Resolution | 24-bit | |
| Audio Bit-rate | 128/192/256/320/384kbps each channel | |
| Support Logo, Caption, QR Code insertion (for SFT214A only) | ||
| 2 HDMI Encoding/Transcoding Module SFT202A | ||
| Module Specifications | Input | 2*HDMI, 2*BNC for CC (Closed Caption) input |
| Output | 1*MPTS output over UDP, Unicast/Multicast | |
| Video Encoding | Video format | MPEG2 & MPEG4 AVC/H.264 |
| Input Resolution | 1920*1080_60P, 1920*1080_50P, 1920*1080_60i,1920*1080_50i, 1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i | |
| Rate control mode | CBR/VBR | |
| Aspect ratio | 16:9, 4:3 | |
| Video Bitrate | 0.8~19Mbps for H.264 encoding;1~19.5Mbps for MPEG-2 encoding | |
| Support CC (closed caption) | ||
| Audio Encoding | Audio format | MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,Dolby Digital AC3 (2.0) encoding (Optional); AC3 (2.0/5.1) passthrough |
| Sampling rate | 48KHz | |
| Audio Bit-rate | 64Kbps-320kbps each channel | |
| Video Tanscoding | 2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD | |
| Audio Tanscoding | MPEG-1 Layer 2, AC3 (Optional) and AAC any-to-any | |
More modules to choose from:
2 SDI Encoding/Transcoding Module
4 HDMI Encoding Module
2 Tuner Descrambling Module
4 FTA Tuner Module
4 ASI/IP Multiplexing Module
5 ASI Multiplexing Module
IP Multiplexing Module
8 CH EAS Multiplexing Module
16/32 QAM Modulating Module
6 ISDB-Tb Modulating Module
8 DVB-T/ATSC Modulating Module
2 HD-SDI Decoding Module
4 HDMI Decoding Module
