SFT8200 32/48/64 Channels MPTS and SPTS Video Streaming IP to Analog Modulator
Model Number: SFT8200
Brand: Softel
MOQ: 1
Support BISS Decryption
Input Ports for Both MPTS and SPTS Video Streaming
Output up to 32/48/64 Channels in NTSC or PAL Standard
01
Product Description
1. INTRODUCTION
SFT8200 is a high-density IP to analog RF platform with 32/48/64 free adjacent channels in a 2U box. Browser-based user interfaces facilitate system setup and maintenance efficiency. This outstanding headend system consumes much less power than other competitors, eventually reducing operating costs and extending life cycles.
2. FEATURES
1. System provides 1 GE input port for both MPTS and SPTS video streams
2. Receive up to 256 IP streams and output up to 32/48/64 channels in NTSC or PAL standard

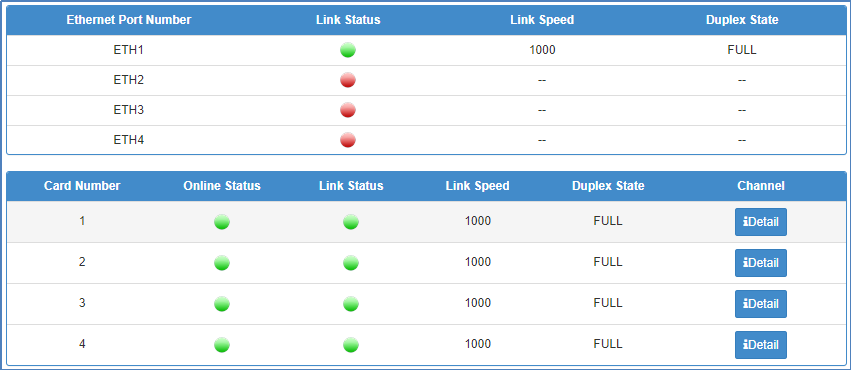

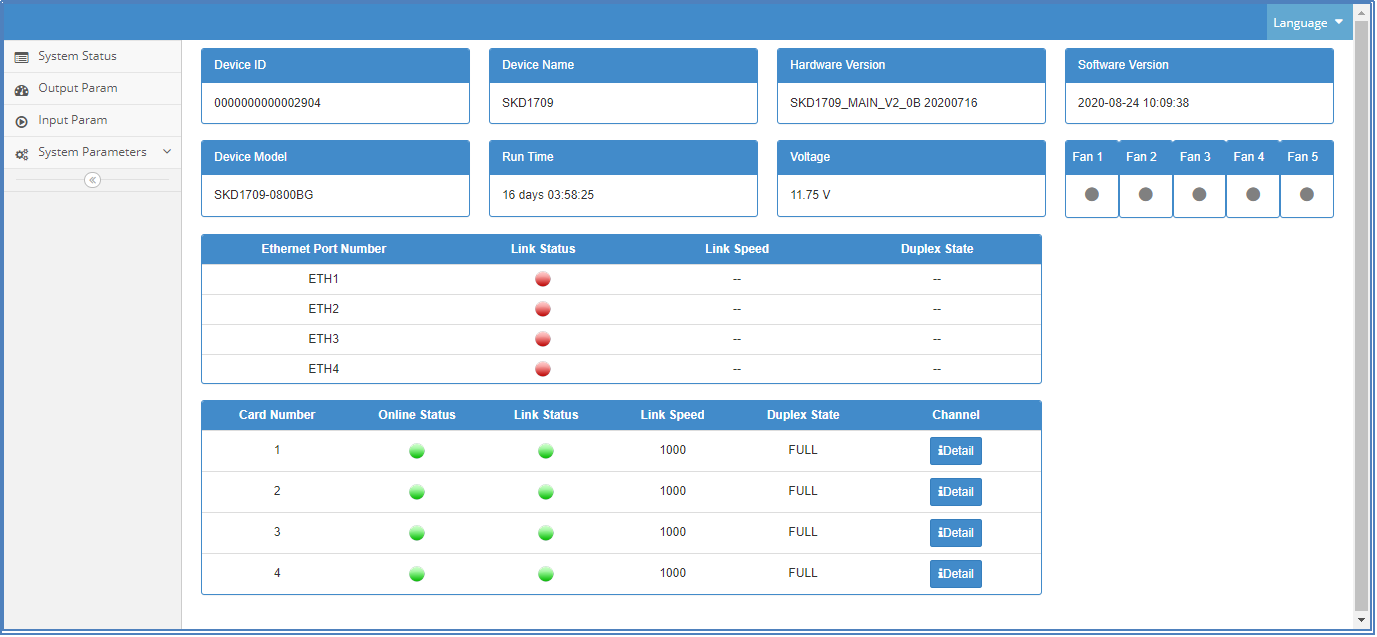

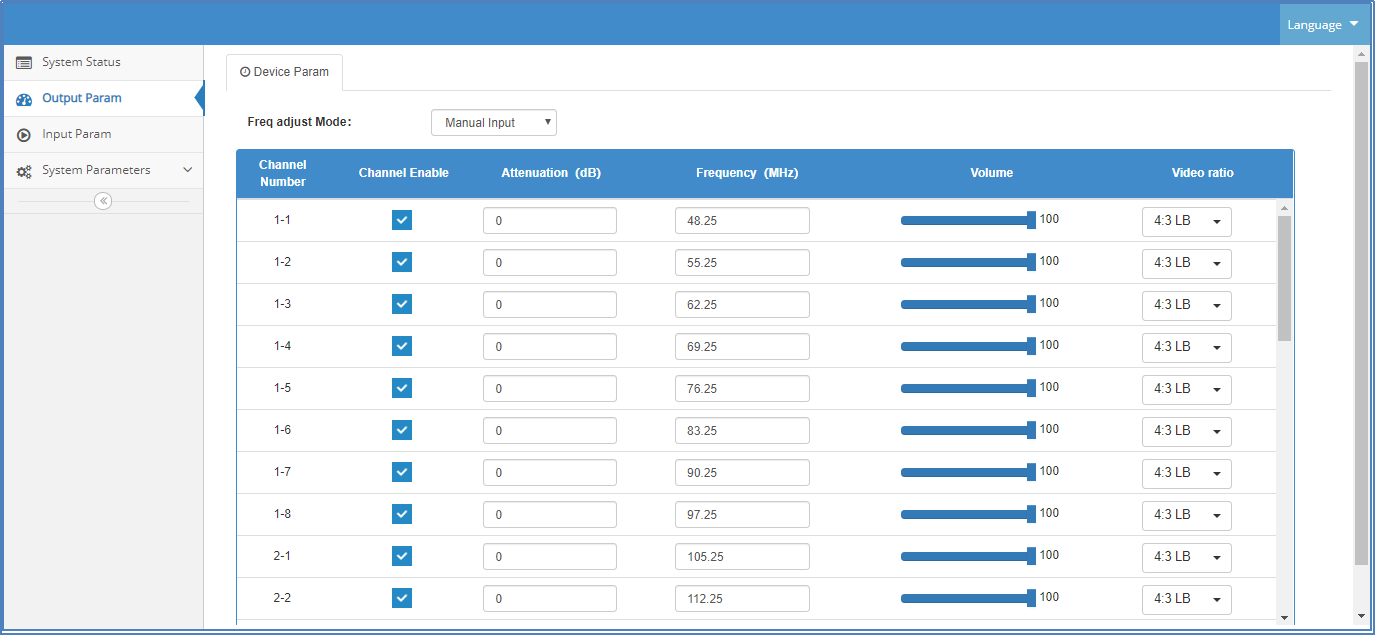

3. Easy configuration and software upgrade by built-in Web UI
4. Support running text and logo insertion
5. Support BISS decryption as an option
6. Support multi soundtracks and subtitles selection
| SFT8200 CATV 32/48/64 Channels IP to Analog Modulator | |||
| GbE INPUT | |||
| Input Connector | 1 x RJ45 | Addressing | Unicast, Multicast |
| Transport Protocol | UDP, RTP | MPEG Transport | SPTS, MPTS |
| TS DECODING | |||
| Video Resolutions | Up to 1080P | MAX decoding stream | 64 channels |
| Video Form | MPEG1/2/4; H.264; H.265; AVS; AVS+; VC1 | Audio Form | MPEG-1 Layer I/II/III; WMA, AAC, AC3 |
| Additional capabilities | Teletext; BISS decrypt | Aspect Ratio Control | 4:3(Letterbox&PanScan); 16:9 |
| Multi-sound track | Support | Multi language subtitle | Support |
| RF OUTPUT | |||
| Connector | F female connector | Output Level | ≥ 53dBmV combined |
| Number of RF channels | Max 64 agile modulated channels | Adjust Range | 20dB per 32CHs10dB per 1CH |
| Supported Standard | NTSC, PAL BG/DI/DK | Audio Output Format | MONO |
| STD,HRC and IRC | Support | Audio Level Adjust Range | 0 ~ 100% |
| Output Frequency | 48 ~ 860 MHz | RF Test Point | -20dB Relative to output |
| Out-band Rejection | ≥ 60dB | Differential Gain | ≤ 5% |
| Flatness | -2dB per carrier | Group Delay Response | ≤ 100nS |
| Return Loss | 12 dB (min) | 2K Factor | ≤ 2% |
| GENERAL | |||
| Management | NMS | Consumption | <240W |
| Language | English | Weight | 8.5KG |
| Power Supply | AC 90~264V | Dimension | 484*435*89 (MM) |
