SFT3528S Encoding Multiplexing Modulating All in ONE HDMI DVB-T Encoder Modulator
Model Number: SFT3528S
Brand: Softel
MOQ: 1
Support LOGO, OSD and QR code insertion for every local channel
8 HDMI input, MPEG-4 AVC/H.264 Video encoding
Support 4 MPTS IP output over UDP and RTP/RTSP
01
Product Description
1. Product Overview

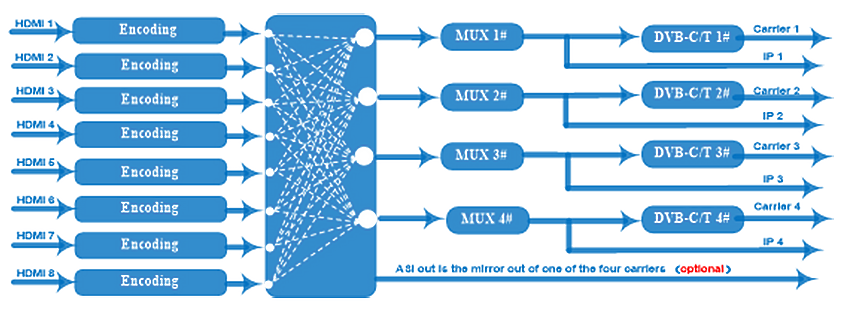

SFT3528S is a professional high integration device which includes encoding, multiplexing, and modulating in one box. It supports 8 HDMI inputs, 128 IP inputs and DVB-T RF out with 4 adjacent carries and 4 MPTS out as mirror out of the 4 modulation carriers via DATA (GE) port. This full function device makes it ideal for small CATV head end system, and it’s a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
2. Key features
- Support LOGO, OSD and QR code insertion for every local channel (Language Supported:中文, English, العربية, ไทย, руская, اردو, for more languages please consult us…)
- 8 HDMI input, MPEG-4 AVC/H.264 Video encoding
- MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through and support audio gain adjustment
- 4 groups of multiplexing/modulating output channels
- 4 DVB-T RF out with each carrier channel processing maximum 32 IP from DATA input port
- Support 4 MPTS IP output over UDP and RTP/RTSP
- Support PID remapping/PSI/SI editing and inserting
- Control via web management, and easy updates via web
| SFT3528S HDMI DVB-T Encoder Modulator | |||
| Input | 8 HDMI inputs; 128 ip inputs | ||
| Video | Encoding | MPEG-4 AVC/H.264 | |
| Resolution | In-put | 1920×1080_60P, 1920×1080_60i, | |
| 1920×1080_50P, 1920×1080_50i, | |||
| 1280×720_60P, 1280×720_50P, | |||
| 720×576_50i,720×480_60i, | |||
| Out-put | 1920×1080_30P, 1920×1080_25P, | ||
| 1280×720_30P, 1280×720_25P, | |||
| 720×576_25P,720×480_30P, | |||
| Bit-rate | 1Mbps~13Mbps each channel | ||
| Rate Control | CBR/VBR | ||
| Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass Through | |
| Sampling rate | 48KHz | ||
| Resolution | 24-bit | ||
| Audio Gain | 0-255 Adjustable | ||
| MPEG-1 Layer 2 bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||
| LC-AAC bit-rate | 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps | ||
| HE-AAC bit-rate | 48/56/64/80/96/112/128 kbps | ||
| Multiplexing | Maximum PID Remapping | 180 input per channel | |
| Function | PID remapping ( automatically or manually) | ||
| Generate PSI/ SI table automatically | |||
| Modulation | DVB-T | Standard | |
| FFT mode | |||
| Bandwidth | |||
| Constellation | |||
| Guard Interval | |||
| FEC | |||
| MER | |||
| RF frequency | |||
| RF out | |||
| RF output level | |||
| Stream output | RF output (F type interface) | ||
| 4 IP MPTS output over UDP/RTP/RTSP, 1*1000M Base-T Ethernet interface | |||
| System function | Network management(WEB) | ||
| Chinese and English language | |||
| Ethernet software upgrade | |||
| Miscellaneous | Dimension(W×L×H) | 482mm×328mm×44mm | |
| Environment | 0~45℃(work)；-20~80℃（Storage） | ||
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ±10%,50/60Hz | ||
SFT3528S HDMI DVB-T Encoder Modulator Datasheet.pdf
