SFT3514 CATV Bi-direction 4 ASI 128 IP Input Multiplexer Scrambler
Model Number: SFT3514
Brand: Softel
MOQ: 1
Multi-channel ASI and IP I/O
Up to 512 PIDs remapping per output channel
Web-based NMS management
01
Product Description
1. Product Overview
This SFT3514 Multiplexer Scrambler is our latest multiplexing scrambling device. It has 4 bi-direction ASI and 3 bi-direction IP ports supporting up to 4 ASI and 128 IP input, after scrambling, it outputs 4 MPTS and max 4 ASI. It has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PCR adjusting. In conclusion, its high integration and cost effective design make this device widely used in the CATV Broadcasting system.
2. Key features

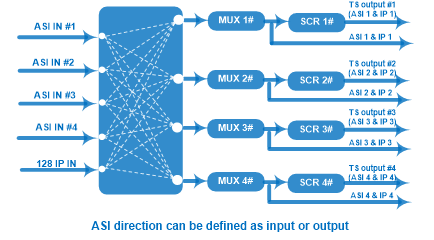

- ASI in/out: max 4 ASI input/output thru 4 bi-direction ASI ports (ASI direction can be defined as input or output manually)
- IP in/out: 128 IP input, 4 IP (MPTS) output thru 3 bi-direction Data ports
- Support scramble with up to 4 simulcrypt CAs
- Up to 512 PIDs remapping per output channel
- Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing
- Huge buffer memory for saving the overflowing code stream
- Alarming function
- Web-based NMS management
- IP in/out: 128 IP input, 4 IP (MPTS) output thru 3 bi-direction Data ports
- Support scramble with up to 4 simulcrypt CAs
- Up to 512 PIDs remapping per output channel
- Support accurate PCR adjusting, PID filtering, re-mapping and PSI/SI rebuilding and editing
- Huge buffer memory for saving the overflowing code stream
- Alarming function
- Web-based NMS management
| SFT3514 Multiplexer Scrambler | |||
| Input / Output | 4 bi-direction ASI ports: max 4 ASI input/output, BNC 75Ω3 bi-direction Data ports (RJ45): 128 IP input over UDP/RTP
4 IP (MPTS) output over UDP/RTP/RTSP 100/1000Mbps self-adaption |
||
| Input Packet format: 204/188 self-adaption | |||
| ASI: Max output bit-rate: 200Mbps (Each channel) | |||
| Mux | Max PIDs | 512 per channel | |
| Functions | PID re-mapping | ||
| PCR accurate adjusting | |||
| Automatic generating PSI/SI table | |||
| PID transparent | Any PID transparent and mapping achievable | ||
| ScramblingParameters | Max simulcrypt CA | 4 | |
| Scramble Standard | ETR289, ETSI 101 197, ETSI 103 197 | ||
| Scramble Channel | 1 | ||
| Connection | Local/remote connection | ||
| System | Web-based management | ||
| Language: English and Chinese | |||
| Ethernet software upgrade | |||
| General | Dimensions | 482mm×300mm×44mm (WxLxH) | |
| Weight | 3.5kg | ||
| Temperature | 0~45℃(operation), -20~80℃(storage) | ||
| Power supply | AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz | ||
| Consumption | ≤40W | ||

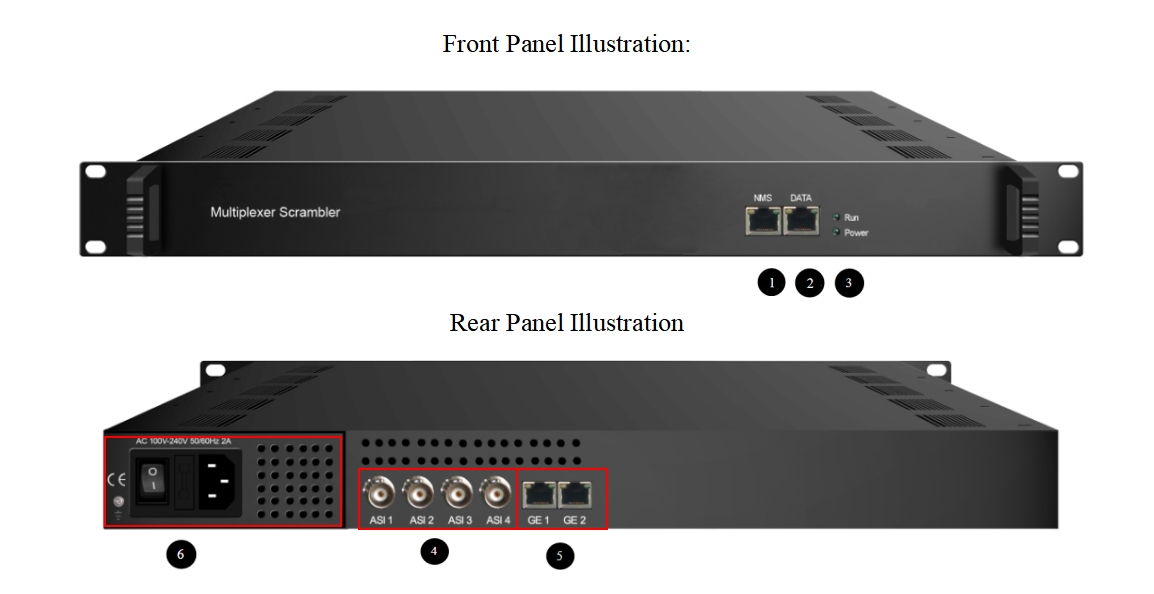

| SFT3514 Multiplexer Scrambler | |
| 1 | NMS port for network management connection |
| 2 | Data port for IP input and output |
| 3 | Run and Power Indicators |
| 4 | 4 ASI input/output Interfaces (Bi-direction interface) |
| 5 | GE1, GE2 (IP stream input and output interface) |
| 6 | Power switch/Fuse/Socket/ Grounding Wire |
