SFT3508F-M Broadcast Network IP Streaming Converter 8 Data Ports IPTV Gateway
Model Number: SFT3508F-M
Brand: Softel
MOQ: 1
IP Gateway + IPTV Server in One Device
Support TS files uploading through Web management
Support downloading SOFTEL IPTV APK directly
01
Product Description
Brief Introduction
SOFTEL SFT3508F/SFT3508F-10 (SFT3508F-M) IPTV Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly.
Functional Features
-8 Data ports ( SFT3508F/SFT3508F-M) :
First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
Data CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over HTTP, HLS and RTMP (Unicast)
-10 Data ports ( SFT3508F-10) :
First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
Data CH1-9 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over HTTP, HLS and RTMP (Unicast)
-Support TS files uploading through Web management
-Support IP anti- jitter function
-Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed SOFTEL IPTV APK)
-Support downloading SOFTEL IPTV APK directly from this device
-Support about 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization
-Support program playing with APK downloaded android STB and TV, maximum 150 terminals
-Control via web-based NMS management through DATA port
| SFT3508F-M IPTV Gateway | |||
| Input | IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS(SFT3508F/SFT3508F-M) IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS( SFT3508F-10) | ||
| TS files uploading through Web management | |||
| IP output | IP out thru Data port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast)(SFT3508F/SFT3508F-M); IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast)(SFT3508F-10) | ||
| System | CPU: SFT3508F(1037)/SFT3508F-M(I7)SFT3508F-10( Celeron 3965) | Memory: 4G | |
| Solid-State Disk (SSD): 16G (60G optional) | |||
| Channel switching time with SOFTEL’ STB: HTTP (1-3s), HLS (0.4-0.7s) | |||
| Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed SOFTEL IPTV APK) | |||
| Play programs with APK downloaded android STB and TV, maximum 150 terminals(See details in below Test data for reference) | |||
| Support about 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization | |||
| web-based NMS management thru DATA port | |||
| General | Demission | 482mm×324mm×44mm (WxLxH) | |
| Temperature | 0~45℃(operation), -20~80℃(storage) | ||
| Power Supply | AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | ||

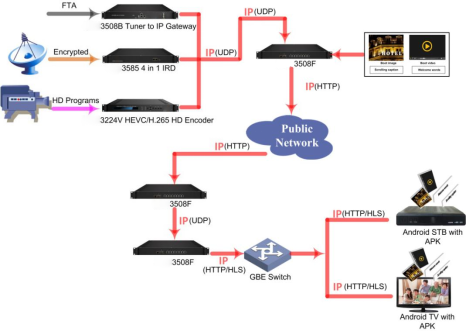

Maximum 200 Terminals solution
| Head-end devices | ||
| Data Source | Function | Mark |
| SFT3508B Tuner to IP Gateway | Receiving FTA Programs | Input: 16 tuner, 2ASIOutput: IP (16 MPTS or 512 SPTS) |
| SFT3585 4 in 1 IRD | Decrypting programs | Input:4 RF, 1ASI, 4IPOutput: IP (48 SPTS and 4 MPTS), 4ASISupport descramble programs through 4 CAMs/CIs |
| SFT3224V H.265/H.264 HD Encoder | HDMI HD Programs | Input: 4/8/12×HDMI/SDIOutput: IP (1 MPTS and 4/8/12 SPTS) Support H.265/HEVC, H.264/AVC Encoding |
| SFT3508F IPTV Gateway | Converting protocol | Input: 7 channels IP over UDPOutput: 1channel IP over HTTP |
| Receiving devices | ||
| Data Source | Function | Mark |
| SFT3508F IPTV Gateway | As a receiver to receive programs from public Network | Input IP protocol: HTTPOutput IP protocol: UDPSupport about 80 HD/SD programs (Bitrate: 2Mbps), suggest maximum 80% CPU utilization |
| SFT3508F IPTV Gateway | As a server | Input IP protocol: UDP Output IP protocol: HTTP/HLSmaximum 250 terminals |
| Terminal devices | |
| Terminal Type | Mark |
| Android STB with APK | Support HTTP&HLS protocolSupport SOFTEL APK configuration |
| Android TVs with APK | Support HTTP&HLS protocolSupport SOFTEL APK configurationSupport self-start SOFTEL APK when TV is on |
| Total device number | ||
| Head-end device | Device | Number |
| SFT3508B Tuner to IP Gateway | 1 | |
| SFT3585 4 in 1 IRD | 1 | |
| SFT3224V HEVC/H.265 HD Encoder | 1 | |
| SFT3508F IPTV Gateway | 1 | |
| Receiving device | SFT3508F IPTV Gateway | 2 |
| Terminal device | Android STB with APK/ Android TVs with APK | maximum 250 |
|
Feature |
Memory |
CPU |
Solid-State Disk(SSD) |
Mechanical Hard Disk |
|
|
SFT3508F |
Gateway |
4G |
1037 |
60G |
× |
|
SFT3508F-10 |
Gateway |
4G |
Celeron 3965 |
60G |
× |
|
SFT3508F-M |
Gateway |
4G |
i7 |
60G |
× |
SFT3508F-M Broadcast Network IP Streaming Converter 8 Data Ports IPTV Gateway.pdf
