SFT3402E ASI or IP 100M input RF output DVB-S/S2 Digital Modulator
Model Number: SFT3402E
Brand: Softel
MOQ: 1
Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard
4 ASI inputs, 3 for backup
Support RF CID setting
01
Product Description
Product Overview

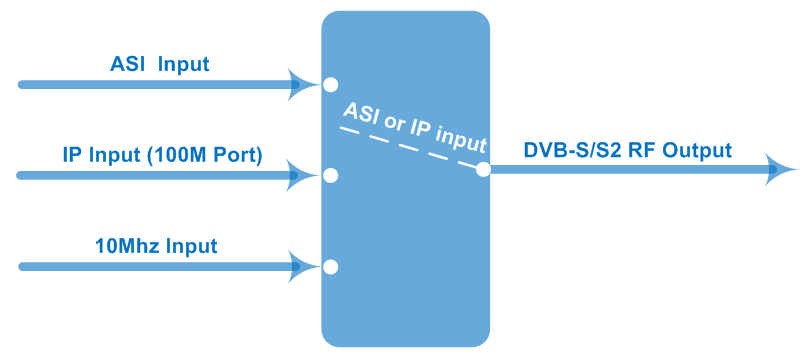

SFT3402E is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2 RF output.
BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with Web-server NMS software and LCD in the front panel.
With its high cost-effective design, this modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.
Key Features
- Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard
- 4 ASI inputs (3 for backup)
- Support IP (100M) signal input
- QPSK, 8PSK, 16APSK, 32APSK Constellations

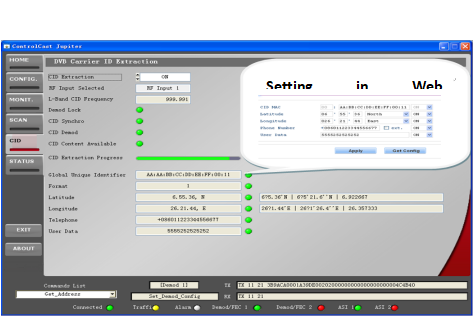

- Support RF CID setting (Optional as per order)
- Constant temperature crystal oscillator, as high as 0.1ppm stability
- Support coupling 10Mhz clock output through RF output port
- Support 24V power output through RF output port
- Support BISS scrambling
- Support SFN TS transmission
- Output frequency range: 950~2150MHz, 10KHz stepping
- Support local and remote control with Web-server NMS
| SFT3402E DVB-S/S2 Modulator | |||
| ASI Input | Supporting both188/204 Byte Packet TS Input | ||
| 4 ASI Inputs, Supporting Backup | |||
| Connector: BNC, Impedance 75Ω | |||
| IP Input | 1*IP Input (RJ45, 100M TS Over UDP) | ||
| 10MHz Reference Clock | 1*External 10MHz Input (BNC Interface); 1*Inner 10MHz Reference clock | ||
| RF Output | RF Range: 950 ~ 2150 MHz, 10KHz stepping | ||
| Output Level Attenuation：-26 ~ 0 dBm，0.5dBm Stepping | |||
| MER≥40dB | |||
| Connector: N type, Impedance 50Ω | |||
| Channel Codingand Modulation | Standard | DVB-S | DVB-S2 |
| Outer coding | RS Coding | BCH Coding | |
| Inner coding | Convolution | LDPC Coding | |
| Constellation | QPSK | QPSK,8PSK,16APSK,32APSK | |
| FEC/ Convolution Rate | 1/2, 2/3, 3/4, 5/6, 7/8 | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/1016 APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
|
| Roll-off Factor | 0.2, 0.25, 0.35 | 0.2, 0.25, 0.35 | |
| Symbol Rate | 0.05~45Msps | 0.05~40Msps (32APSK);
0.05~45 Msps (16APSK/8PSK/QPSK) |
|
| BISS Scramble | Mode 0, mode 1, mode E | ||
| System | Web-server NMS | ||
| Language: English | |||
| Ethernet software upgrade | |||
| 24V power output through RF output port | |||
| Miscellaneous | Dimension | 482mm×410mm×44mm | |
| Temperature | 0~45℃(operation), -20~80℃ (storage) | ||
| Power | 100-240VAC±10%,50Hz-60Hz | ||
