SFT161X 16 in 1 Analog Channels HDMI To PAL Agile Modulator With RF Output
Model Number: SFT161X
Brand: Softel
MOQ: 1
Support 16 HDMI signals input
Support RF output over NTSC or PAL
Internal fans cooling system for long life span
01
Product Description
1. Product Overview

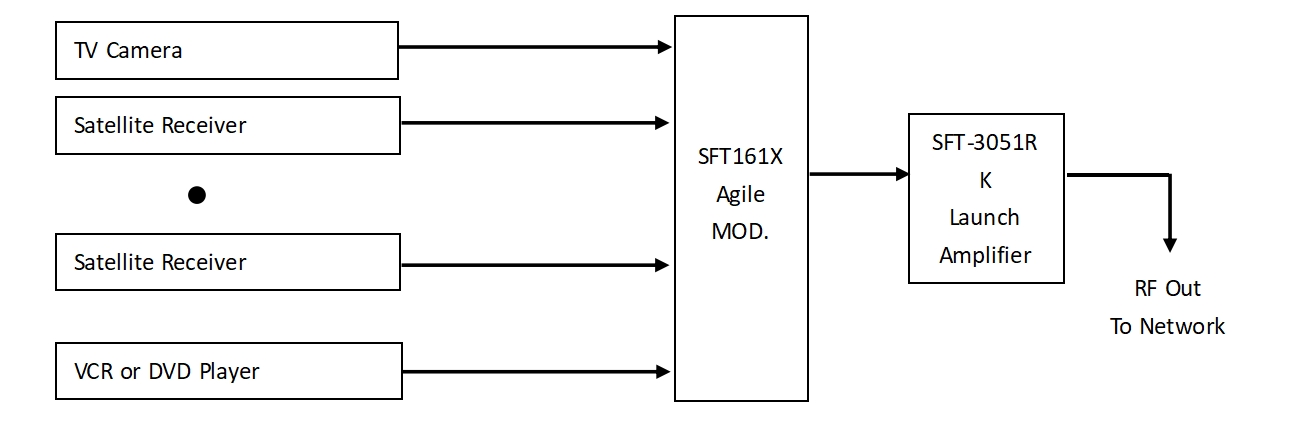

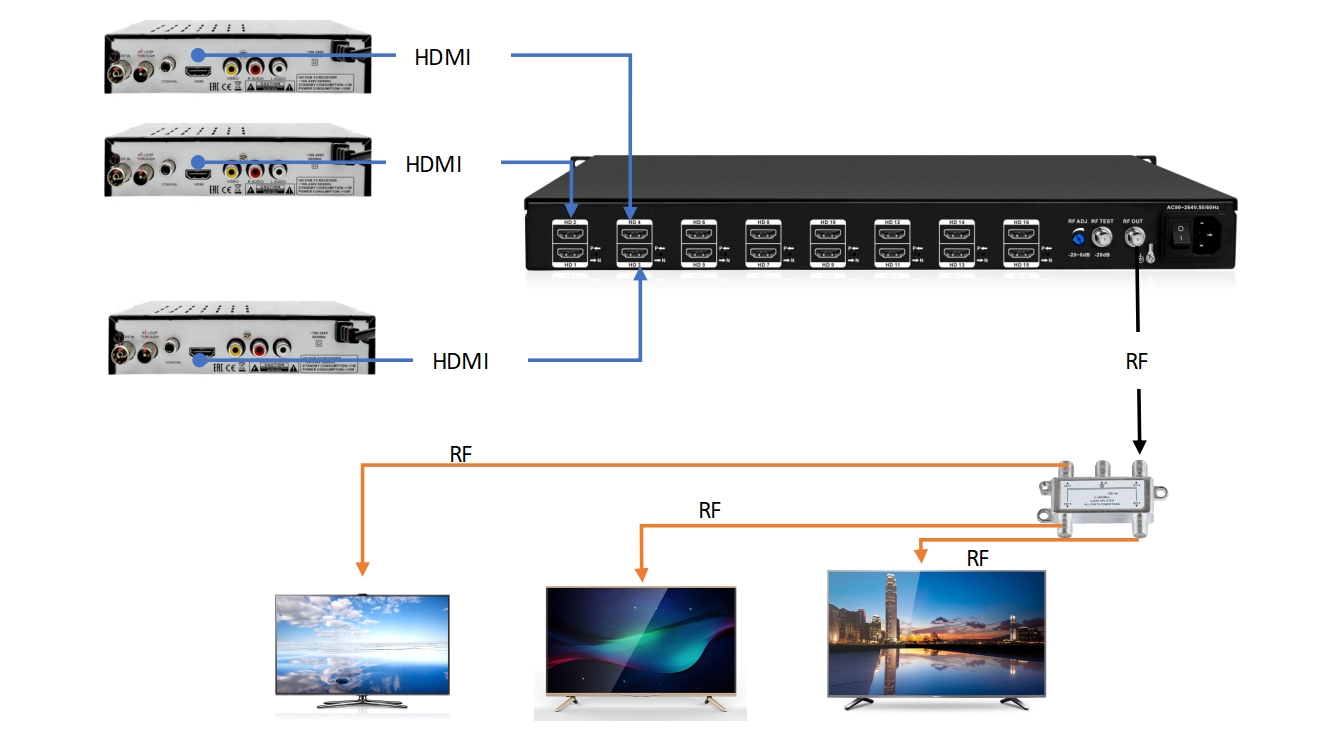

The SFT161X is developed specifically for the commercial AV distribution market. It takes in 16 HD signals and then modulates the HD signals into any analog channels, providing an easy way to distribute high definition signals to the old TV systems. With pre-programmed channel list and its agile ability, the operators can set up the modulator intuitively and easily.
2. Key features
- Converts HD video and audio signals to analogy NTSC or PAL channel
- Rack mountable 1RU rack space with less space and less shipping cost
- High picture quality thanks to the 16 HDMI inputs
- Internal fans cooling system for long life span
- Support HDCP
- Rack mountable 1RU rack space with less space and less shipping cost
- High picture quality thanks to the 16 HDMI inputs
- Internal fans cooling system for long life span
- Support HDCP
| SFT161X 16 CHANNELS HDMI TO PAL AGILE MODULATOR | |||||
| INPUT | |||||
| Input Connector | HDMI*16 | ||||
| VIDEO | Input Resolution | 1920*1080_60P; 1920*1080_50P; 1920*1080_60i; | |||
| 1920*1080_50i; 1280*720_60P; 1280*720_50P | |||||
| OUTPUT | |||||
| RF | Output Connector | F-Female @ 75ohms | |||
| Output Frequency | 45 ~ 870 MHz | ||||
| Output Level | 110 dBμV | ||||
| Adjust Range | 0 ~ 20dB | ||||
| Output-band Rejection | ≥ 60dB | ||||
| GENERAL | |||||
| Power Supply | AC 90 ~ 264V @ 47~63Hz | Power Consumption | <100W | ||
| Cooling Fans | 3 | Dimension | 48.4*32.9*4.44 (CM) | ||
| Shipping Weight | 6.5 KG | Carton Size | 55*39*13 (CM) | ||
