SA831 CATV High-output RF Bi-directional Amplifier
Model Number: SA831
Brand: Softel
MOQ: 1
Adopt high-output Philips microwave component amplifier
Perfect fore-and-aft power doublers
Fore-and-aft independent forward and reverse test ports
01
Product Description
1. Product Summary
Adopt high-output Philips microwave component amplifier, perfect fore-and-aft power doublers and fore-and-aft independent forward and reverse test ports suitable for bi-directional distribution network.
| SA831 CATV RF Bi-directional Amplifier | ||||||
| Forward Transmission | ||||||
| Frequency Range | MHz | (45)87~550 | (45)87~750 | (45)87~862 | ||
| Rated Gain | dB | 30 | ||||
| Rated Input Level | dBμV | 72 | ||||
| Rated Output Level | dBμV | 102 | ||||
| Flatness in Band | dB | ±0.5 | ±0.75 | ±1 | ||
| Noise Figure | dB | ≤9 | ≤10 | ≤12 | ||
| Return Loss | dB | ≥14 | ||||
| C/CTB (84 PAL-D) | dB | ≥61 | ≥61 | ≥58 | ||
| C/CSO (84PAL-D) | dB | ≥60 | ≥60 | ≥55 | ||
| Signal to Noise Ratio | % | ＜2 | ||||
| Voltage Stroke | KV | 5(10/700μS) | ||||
| Rated Stability Gain | dB | -1.0 ~ +1.0 | ||||
| Speciality Impedance | 75 | |||||
| MAX Output Level | dBμV | ≥110 | ||||
| Carrier to second order intermodulation ratio | dB | ≥52 | ||||
| Carrier alternate noise ratio | dB | ≥66 | ||||
| General Response | ||||||
| Power Voltage(50Hz) | V | AC (165~250) V; AC(30~60)V | ||||
| Power consumption | VA | 8 | ||||
| Dimension | Mm | 178(L) x 100 (W) x 55(H) | ||||

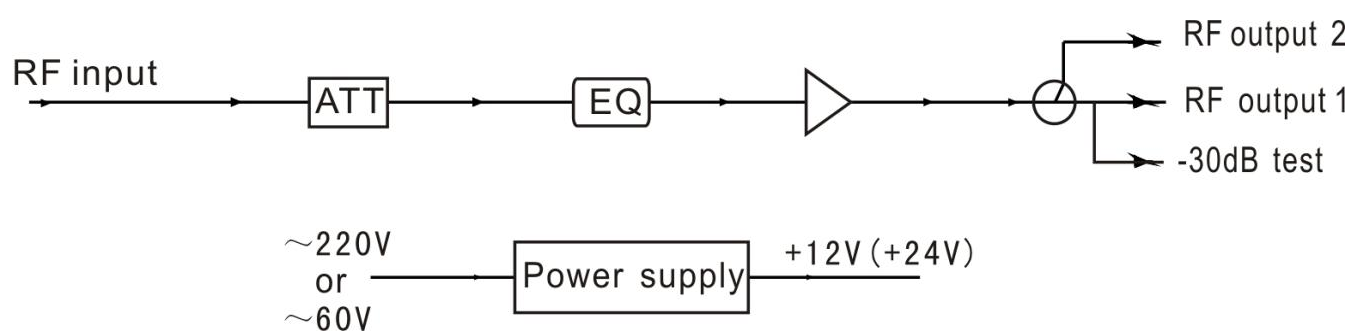

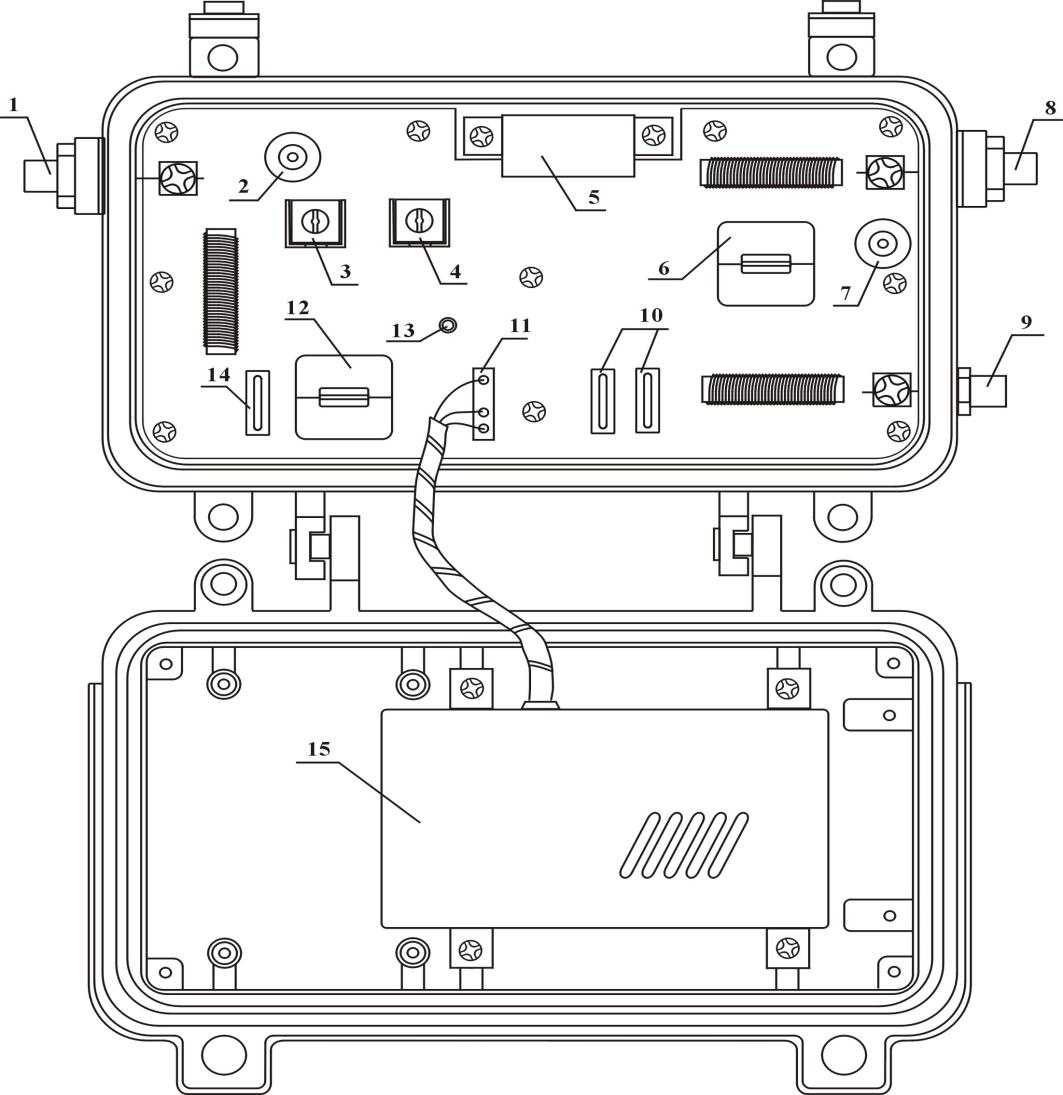

1. RF Input
2. RF Input Test Port: (-20dB)
3. Variable ATT
4. Variable EQ
5. RF Amplifier Module
6. Output Taps / Splitters
7. -30dB RF Output Test Port
8. RF Output 1
9. RF Output 2
10. Power Pass Plug-in
11. Main-board Input Plug
12. Output Taps / Splitters
13. Power Supply Main-board LED
14. Input Power Pass Plug-in
15. Switching Power Supply
SA831 CATV High-output RF Bi-directional Amplifier Datasheet.pdf
