SA1300C High Gain Outdoor CATV Bi-directional Trunk Amplifier
Model Number: SA1300C
Brand: Softel
MOQ: 1
Adopt imported low noise push-pull amplifier module or GaAs push-pull module
Work steadily under outdoor bad environmental condition
Plug-in duplex filter, plug-in fixed (or adjustable) equalizer and attenuator
01
Product Description
1. Product Summary
SA1300C series outdoor bi-directional trunk amplifier is the new developed high-gain amplifier. Mature and optimized circuit design, scientific and reasonable internal process and high quality materials, ensure the stable gain and low distortion. It is the best choice for building large or middle-sized CATV bi-directional transmission network.
2. Performance Characteristics
- The forward path preceding stage adopts the newest high index imported low noise push-pull amplifier module or GaAs push-pull module, output stage adopts the newest high index imported power doubly amplifier module or GaAs amplifier module. The nonlinear index is good and output level is more stable. The return path adopts the newest high index imported return dedicated amplifier module. The distortion is low and the signal to noise ratio is high.
- It is more convenient to debug because of the plug-in duplex filter, plug-in fixed (or adjustable) equalizer and attenuator, and the scientific and reasonable on-line detection ports.
- The equipment can long time continuous work steadily under outdoor bad environmental condition. Because of the aluminum waterproof housing, high reliability switching power supply and strict lightning protection system.
- The shell adopts embedded modular design; equipment maintenance, replacement, and debugging are convenient.
3. Ordering Guide
Please confirm: uplink and downlink splitting frequency of bi-directional paths.
4. Special Tips:
- Before using the product must be reliable grounding!
- The maximum overcurrent capacity of the product is 10A.
| Item | Unit | Technical Parameters | ||||||
| Forward Path | ||||||||
| Frequency range | MHz | 47/54/85-862/1003 | ||||||
| Rated gain | dB | 30 | 34 | 36 | 38 | 40 | ||
| Minimum full gain | dB | ≥30 | ≥34 | ≥36 | ≥38 | ≥40 | ||
| Rated input level | dBμV | 72 | ||||||
| Rated output level | dBμV | 108 | ||||||
| Flatness in band | dB | ±0.75 | ||||||
| Noise figure | dB | ≤10 | ||||||
| Return loss | dB | ≥16 | ||||||
| Attenuation | dB | 1-18 (Fixed insert,1dB stepping) | According to user requirements | |||||
| Equilibrium | dB | 1-15 (Fixed insert,1dB stepping) | ||||||
| C/CTB | dB | 65 | Test condition: 79 channels signal, output level: 85MHz/550MHz/860MHz.99dBuV/105dBuV/108 dBuV | |||||
| C/CSO | dB | 63 | ||||||
| Group delay | ns | ≤10 (112.25 MHz/116.68 MHz) | ||||||
| AC hum modulation | % | < 2% | ||||||
| Gain stability | dB | -1.0 ~ +1.0 | ||||||
| Return Path | ||||||||
| Frequency range | MHz | 5 ~ 30/42/65 | ||||||
| Rated gain | dB | ≥20 | ||||||
| Minimum full gain | dB | ≥22 | ||||||
| Maximum output level | dBμV | ≥ 110 | ||||||
| Flatness in band | dB | ±0.75 | ||||||
| Noise figure | dB | ≤ 12 | ||||||
| Return loss | dB | ≥ 16 | ||||||
| Carrier to second-order inter-modulation ratio | dB | ≥ 52 | Test Condition: Output level 110dBuV, test points: F1=10MHz,f2=60MHz,f3=f2-f1=50MHz | |||||
| Group delay | ns | ≤ 20 (57MHz/59MHz) | ||||||
| AC hum modulation | % | < 2% | ||||||
| General Performance | ||||||||
| Characteristic impedance | Ω | 75 | ||||||
| Test port | dB | -20±1 | ||||||
| Power supply voltage | V | A：AC (135 ~ 250) V；B：AC（45 ~ 90) V | ||||||
| Impulse withstand voltage（10/700μs） | kV | > 5 | ||||||
| Power consumption | W | 29 | ||||||
| Dimension | mm | 295 (L) × 210 (W) × 150 (H) | ||||||

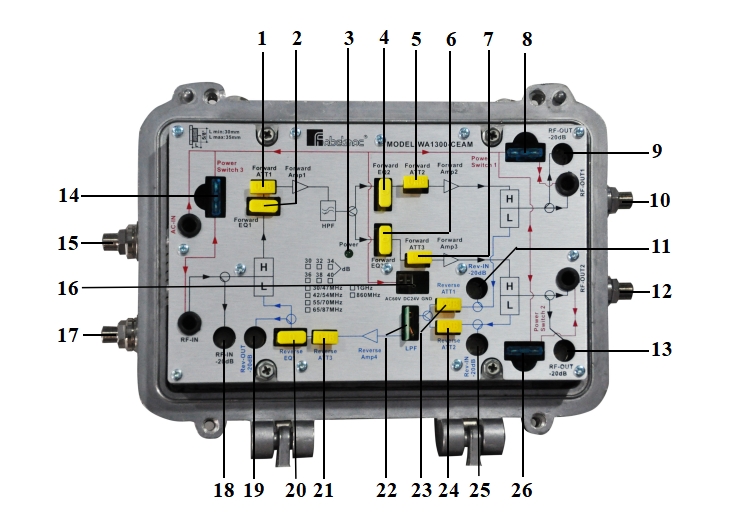

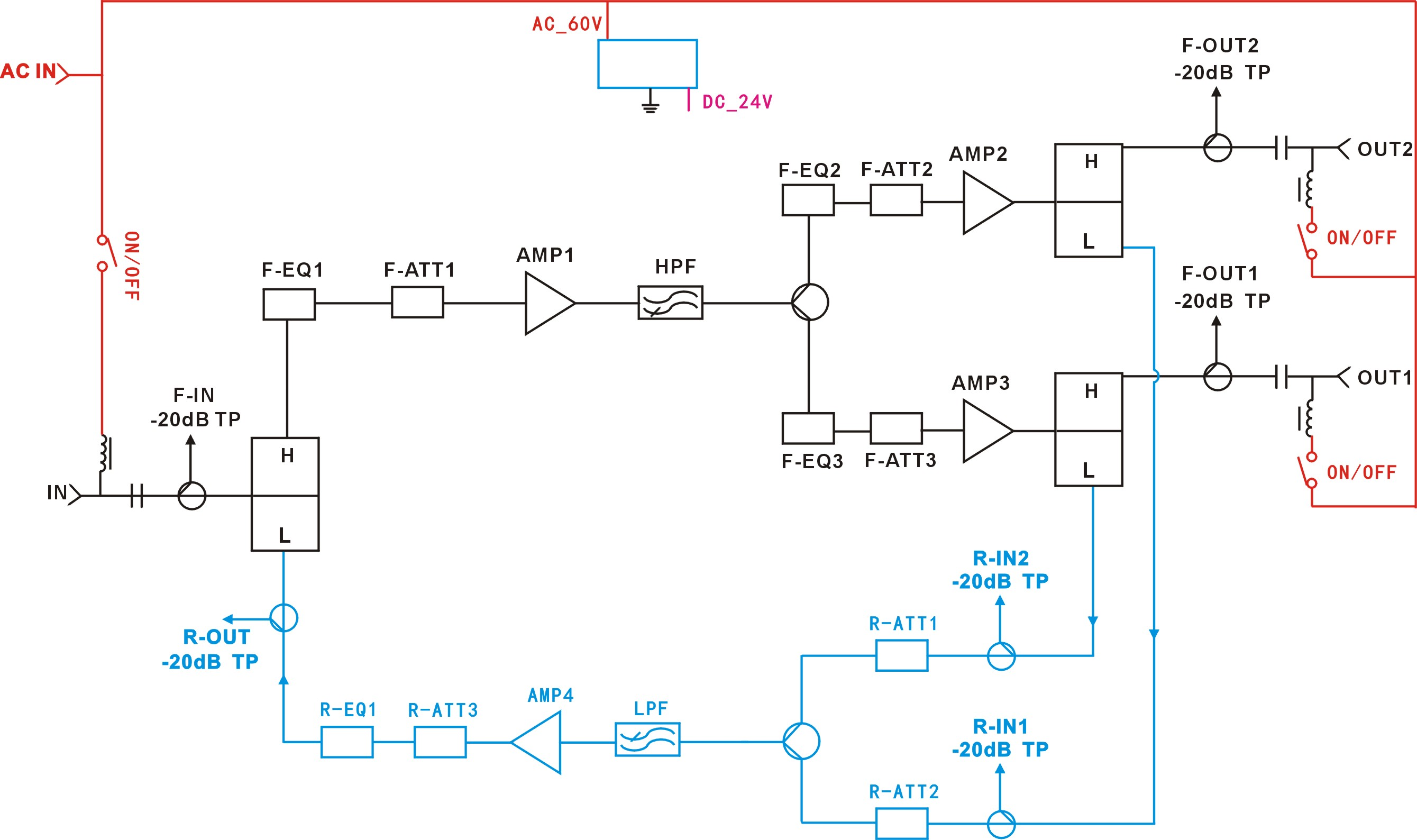

| SA1300C Structure Diagram | |||||
|
1 |
Forward fixed ATT inserter 1 |
2 |
Forward fixed EQ inserter 1 |
3 |
Power indicator |
|
4 |
Forward fixed EQ inserter 2 |
5 |
Forward fixed ATT inserter 2 |
6 |
Forward fixed EQ inserter 3 |
|
7 |
Forward fixed ATT inserter 3 |
8 |
Auto fuse 1 |
9 |
Forward output 1 test port (-20dB) |
|
10 |
RF output port 1 |
11 |
Backward input test port 1 (-20dB) |
12 |
RF output port 2 |
|
13 |
Forward output 2 test port (-20dB) |
14 |
Auto fuse 3 |
15 |
AC60V power feed port |
|
16 |
Power port |
17 |
RF input port |
18 |
Forward input test port (-20dB) |
|
19 |
Backward output test port (-20dB) |
20 |
Backward fixed EQ inserter 1 |
21 |
Backward fixed ATT inserter 3 |
|
22 |
Low pass filter |
23 |
Backward fixed ATT inserter 1 |
24 |
Backward fixed ATT inserter 2 |
|
25 |
Backward input test port 2 (-20dB) |
26 |
Auto fuse 2 |
|
|
