RG6 Standard Manufacturer 75ohm Coaxial Cable with Bonded Foil
Model Number: RG6
Brand: Softel
MOQ: 15KM
Logo Design&Cable Length&Connectors Customized Available
Multi-layer shielding blocks external electromagnetic interference
75 ohms for all types of communication equipment
01
Product Description
1 Introduction
RG6 Standard Coaxial Cable with bonded foil, PVC jacket and messenger, center conductor is copper clad steel, for 75ohm CATV drop cable.
2. Packing Details

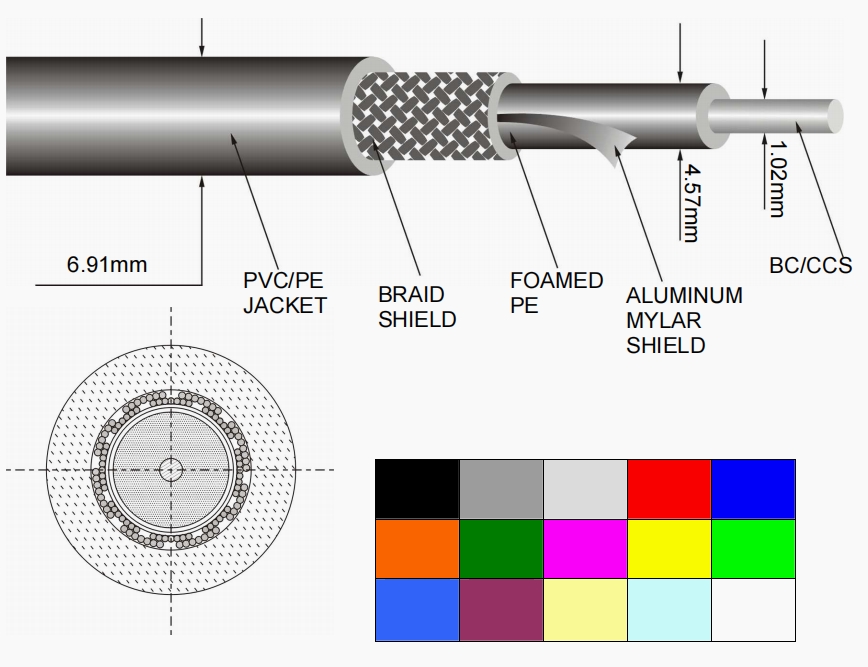

Specification: 1.02BC/CCS+4.57FPE+AL Foil +AL Braiding+6.91PVC/PE
Packing:305M/Wooden Spool, 1Wooden Spool/Carton
Wooden Spool Size: 10*30*26.5CM
Carton Size: 31*31*28CM
G.W.:14.08KG/Carton
N.W.:12.58KG/Carton
Quantity in a 20 Feet Container: 833Cartons
| Basic Construction |
Standard Shield |
Tri-Shield |
Quad-Shield |
|
| Conductor |
Material |
BC/CCS |
BC/CCS |
BC/CCS |
|
Nom.Dia. |
18AWG |
18AWG |
18AWG |
|
| Dielectric |
Material |
Foam PE |
Foam PE |
Foam PE |
|
Nom.Dia. |
4.57mm |
4.57mm |
4.57mm |
|
| Shield |
Material |
Al foil+Al Braiding |
Al foil+ |
(Al foil+Al Braiding)*2 |
|
Coverage |
40%-95% |
40%-95% |
60%/40% |
|
| Jacket |
Material |
PVC/PE |
PVC/PE |
PVC/PE |
|
Nom.Thick. |
0.80mm |
0.80mm |
0.86mm |
|
|
Nom.Dia. |
6.91mm |
7.06mm |
7.54mm |
|
| Basic Characteristics | |||
| Nominal Impedance(ohm) | 75±3 | ||
| Nominal Velocity of Propagation(%) | 85 | ||
| Nominal Capacitance(pF/m) | 50 | ||
| Sparker Test(VAC) | 4000 | ||
| SRL(dB) | 20 | 20 | |
| Attenuation 【68℉(20℃)】 |
Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) |
| 5 | 0.58 | 1.9 | |
| 55 | 1.6 | 5.25 | |
| 187 | 2.85 | 9.35 | |
| 300 | 3.55 | 11.64 | |
| 450 | 4.4 | 14.43 | |
| 600 | 5.1 | 16.73 | |
| 750 | 5.65 | 18.54 | |
| 865 | 6.1 | 20.01 | |
| 1000 | 6.55 | 21.49 | |
