Outdoor GPON OLT 8 Ports with WDM and EDFA
Model Number: OLT-G8V-EDFA
Brand: Softel
MOQ: 1
Open to any brands of ONT
Support Layer3 Route and IPv6
Easy EMS/Web/Telnet/CLI management
01
Product Description

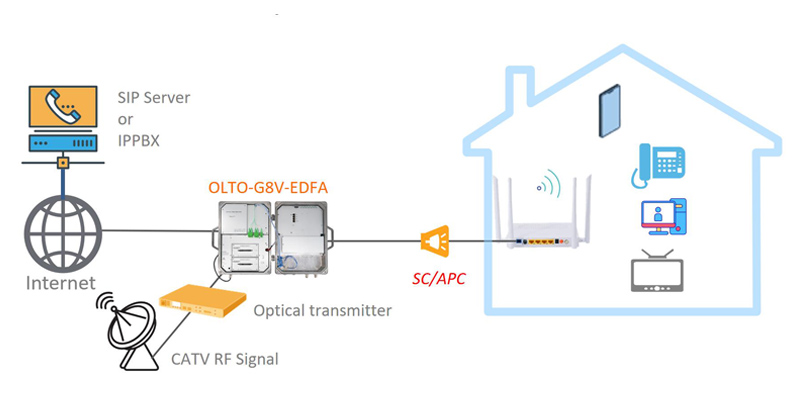

SOFTEL Outdoor GPON OLT OLTO-G8V-EDFA It is composed of pre-amplifier EDFA module, OLT module and optical splitter, etc. It is an optical node device that organically combines CATV optical amplifier module and OLT module.Its modular design can be flexibly deployed in floor boxes, corridors, poles and other scenarios, simplifying network design and reducing engineering costs.
| Product Name | Product Description | Power Configuration | Accessories |
| OLTO-G8V-EDFA | 8*GPON+1*RJ45+2*SFP+2*(SFP+)+8*22 EDFA | 2*AC power | GPON SFP C++ module GPON SFP C+++ module 1G SFP module 10G SFP+ module |
Features
● Modular Design.
● GPON OLT+EDFA+Splitter.
● Metal Case, Natural Heat Dissipation.
● IP65 Dust&Water Proof.
● Dual Power Redundancy.
Software Functions
Management Function
● SNMP, Telnet, CLI, WEB.
● Fan Group Control.
● Port Status monitoring and configuration management.
● Online ONT configuration and management.
● User management.
● Alarm management.
Layer 2 Switch
● 16K Mac address.
● Support 4096 VLANs.
● Support port VLAN and protocol VLAN.
● Support VLAN tag/Un-tag, VLAN transparent transmission.
● Support VLAN translation and QinQ.
● Support storm control based on port.
● Support port isolation.
● Support port rate limitation.
● Support 802.1D and 802.1W.
● Support static LACP.
● QoS based on port, VID, TOS, and MAC address.
● Access control list.
● IEEE802.x flow control.
● Port stability statistics and monitoring.
Multicast
● IGMP snooping.
● 256 IP Multicast Groups.
DHCP
● DHCP Server.
● DHCP Relay; DHCP snooping.
GPON Function
● Tcont DBA.
● Gemport traffic.
● In compliance with ITUT984.x standard.
● Up to 20KM transmission Distance.
● Support data encryption, multi-cast, port VLAN, separation, RSTP, etc.
● Support ONT auto-discovery/link detection/remote upgrade of software.
● Support VLAN division and user separation to avoid the broadcast storm.
● Support power-off alarm function, easy to link problem detection.
● Support broadcasting storm resistance function.
● Support port isolation between different ports.
● Support ACL and SNMP to configure data packet filter flexibly.
● Specialized design for system breakdown prevention to maintain a stable system.
● Support RSTP, IGMP Proxy.
Layer 3 Route
● ARP proxy.
● Static route.
● 1024 hardware Host Routes.
● 512 hardware Subnet Routes.
| Item | OLTO-G8V-EDFA | ||
| Backplane Bandwidth (Gbps) | 104 | ||
| Port Forwarding Rate(Mpps) | 65.472 | ||
| GPON Module | |||
| Chassis | Rack | 1U 19Inch Standard Box | |
| GE/10GE Uplink Port | QTY | 5 | |
| RJ45(GE) | 1 | ||
| SFP(GE) | 2 | ||
| SFP+(10GE) | 2 | ||
| GPON Port | QTY | 8 | |
| Physical Interface | SFP Slots | ||
| Connector Type | Class (Class C++/Class C+++) | ||
| Max splitting ratio | 1:128 | ||
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port | ||
| PON Port Specification(Class C+++module) | Transmission Distance | 20KM | |
| GPON port speed | Upstream 1.244Gbps, Downstream 2.488Gbps | ||
| Wavelength | TX 1490nm, RX 1310nm | ||
| Connector | SC/UPC | ||
| Fiber Type | 9/125μm SMF | ||
| TX Power | +4.5~+10dBm | ||
| Rx Sensitivity | -30dBm | ||
| Saturation Optical Power | -12dBm | ||
| EDFA Optical Amplifier Module | |||
| Working wavelength | 1535nm－1565nm | ||
| Input optical power | -3dBm－+10dBm(ACC Mode) / -6dBm－+10dBm(APC Mode) | ||
| Output optical power | 13 dBm -22dBm | ||
| Output optical power stability | ≤±0.25dB | ||
| Noise figure | ≤5.0dB(@Input optical power is +3dBm) | ||
| Input /output reflection loss | ≥45dB | ||
| Input/output pump light leakage | ≤-30dBm | ||
| C/CTB | ≥63dB | EDFA input optical power is 3dBm,and the optical link composed of optical transmitter and receiver is tested. | |
| C/CSO | ≥62dB | ||
| C/N | ≥50dB | ||
| V1600G1WEO-PWR | AC:90~264V, 47/63Hz, 24V DC output, Dual Power Module Supply | ||
| Management Mode | WEB/SNMP/Telnet/CLI/SSHv2 | ||
| Dimension (L*W*H) | 590mm*470mm*300mm | ||
| Gross weight | 19.3 | ||
| Water Proof Level | IP65 | ||
| Power Consumption | 45W | ||
| Working Temperature | -40 ~ +70°C | ||
| Storage Temperature | -40 ~ +85°C | ||
| Relative Humidity | 5~90% (non-conditioning) | ||
