ONTX-S101G 10G PON Solution High Performance Chipset XGS-PON ONU
Model Number: ONTX-S101G
Brand: Softel
MOQ: 1
10G PON Solution High Performance Chipset
10GE High Speed Port
IPv4/IPv6 Dual Stack
01
Product Description
Brief Introduction

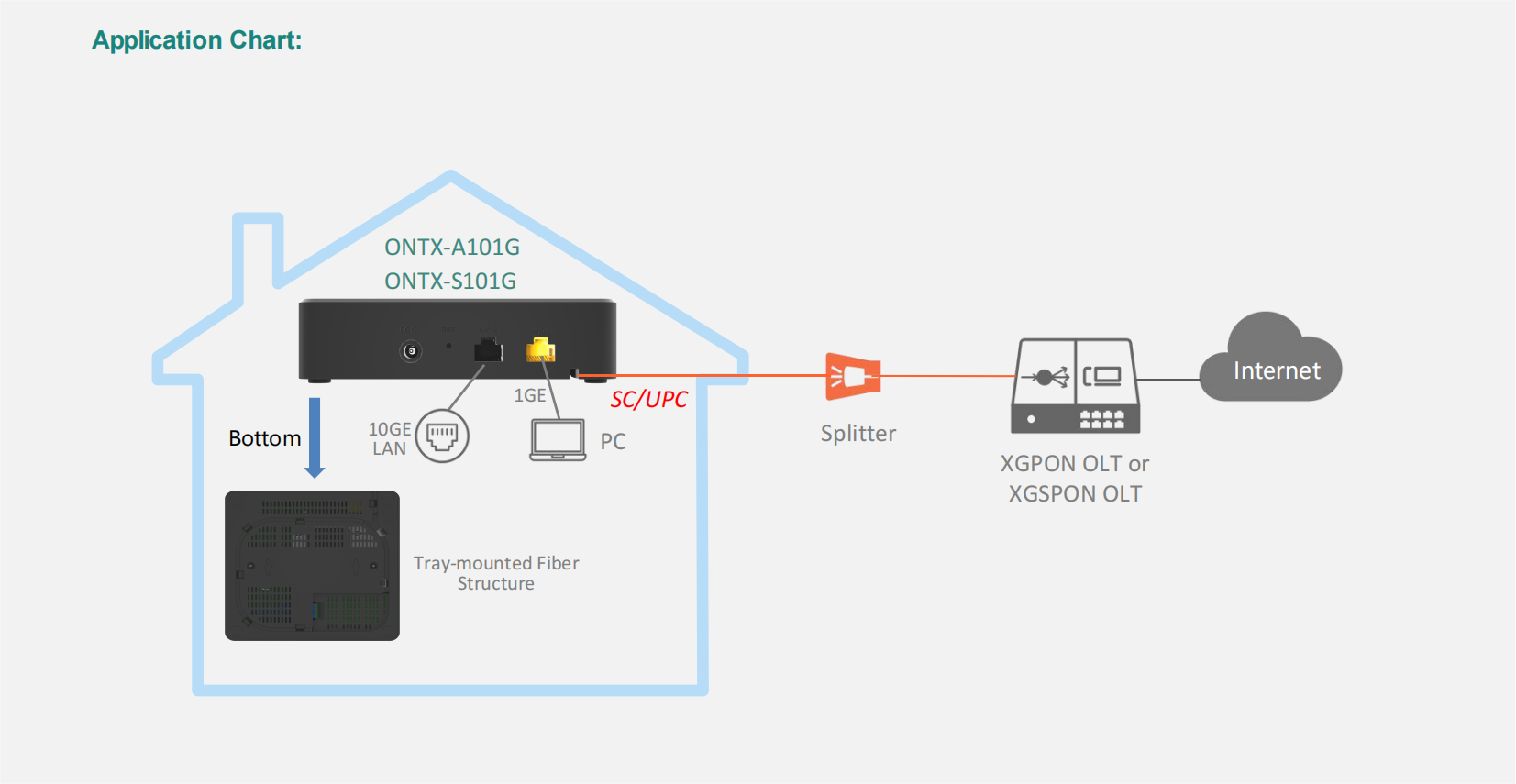

The 10G PON ONU ONTX-A101G / ONTX-S101G developed by SOFTEL supports dual modes including XG-PON/XGS-PON, providing multiple rate Ethernet ports of 10GE/GE. The V2902A can easily meet business needs such as 4K/8K and VR, and can provide home and enterprise users with the ultimate experience of 10G ultra-high-speed Internet connection . With tray-mounted fiber structure fiber design, it can be placed on a desktop or wall-mounted, adapting effortlessly to various scene styles!
| Hardware Parameter | |
| Dimension | 140mm*140mm*34.5mm (L*W*H) |
| Net weight | 316g |
| Operating condition | Operating temp: -10 ~ +55。COperating humidity: 5 ~ 95% (non-condensed) |
| Storing condition | Storing temp: -40 ~ +70。CStoring humidity: 5 ~ 95% (non-condensed) |
| Power adapter | 12V/1A |
| Power supply | 12W |
| Interface | 1*10GE+1*GE |
| Indicators | SYS, PON, LOS, LAN1, LAN2 |
| Interface parameter | |
| PON Interface | •SC single mode, SC/UPC connector• TX optical power: 6dBm• RX sensitivity: -28dBm• Overload optical power: -8dBm• Transmission distance: 20km
• Wavelength: XG(S)-PON:DS 1577nm/US 1270nm |
| 10G PON layer | • ITU-T G.987(XG-PON)• ITU-T G.9807. 1 (XGS-PON) |
| User interface | • 1* 10GE, Auto-negotiation,RJ45 ports• 1*GE, Auto-negotiation,RJ45 ports |
| Function Data | |
| Internet connection | • Support Bridge mode |
| Alarm | • Support Dying Gasp• Support Port Loop Detect |
| LAN | • Support Port rate limiting• Support Loop detection• Support Flow control• Support Storm control |
| VLAN | • Support VLAN tag mode• Support VLAN transparent mode• Support VLAN trunk mode• Support VLAN hybrid mode |
| Multicast | • IGMPv1/v2/Snooping• Support multicast protocol VLAN and multicast data stripping• Support multicast translation function |
| QoS | • Support WRR 、SP+WRR |
| O&M | • WEB/TELNET/SSH/OMCI•Support private OMCI protocol andUnified network management of VSOL OLT |
| Firewall | • Support IP address and port filtering function |
| Other | • Support log function |
ONTX-S101G 10G PON Solution High Performance Chipset XGS-PON ONU.pdf
