ONTX-253GVU-W6 10G PON Solution WiFi 6 XGS-PON HGU ONT ONU
Model Number: ONTX-253GVU-W6
Brand: Softel
MOQ: 1
XGS-PON + 1*2.5GE + 3*GE + 1*POTS + 1*USB3.0 + WiFi 6 HGU ONT
Compatible with 10G EPON OLT / XGPON OLT / XGSPON OLT
Next-Gen Gigabit WiFi 6, Speed up to 3 Gbps
01
Product Description
10G PON Solution
Realtek Chipset
Next-Gen Gigabit WiFi6
2.4GHz & 5GHz Dual Band
Speed up to 3 Gbps
IPv4/IPv6 Dual Stack
USB3.0 Interface
For Shared
Storage/Printer
Brief Introduction

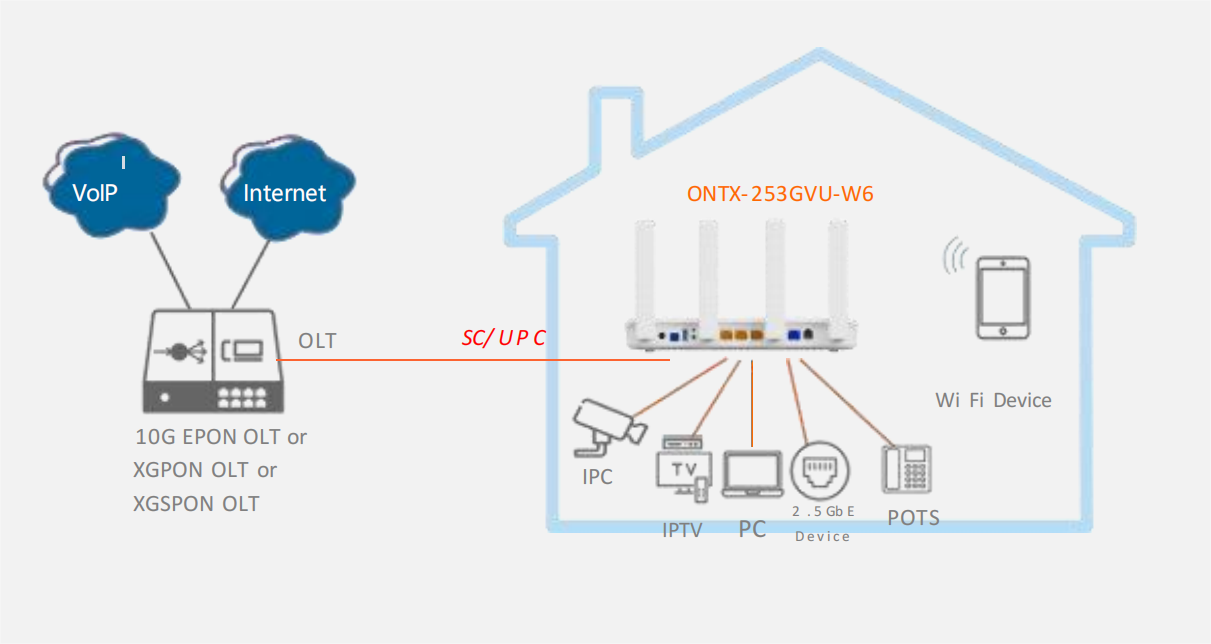

Leveraging the latest WiFi 6 (AX3000) technology and equipped with IEEE 802.3av(10G- EPON)/ITU-T G.987(XG-PON)/ ITU- T G.9807.1 (XGS- PON) PON interface and IEEE802.11ax(WiFi 6 ) interface, SOFTEL XGS- PON HGU ONTX-253GVU-W6 supports the full Triple-play of services enabling Data, Voice and Video services through Ethernet, Wi-Fi, FXS, and USB standard interfaces, helping Internet Service Providers to deliver internet service more than 2.5 Gbps which is limited by GPON.
ONTX-253GVU-W6 built-in Ethernet LAN ports, one 2.5 GE BASE-T port, and 3 x 1*GE BASE-T ports support ultrafast device connection and include powerful and enhanced WLAN interface based on MU-MIMO OFDMA 2.4 GHz 2 x2 MIMO and 5 GHz 2 x2 MIMO Wi-Fi antennas supporting 802.11 a/b/g/n/ac/ax standards over 2.4 GHz and 5 GHz wireless frequency bands for Internet application such as video, email, web surfing, files upload/download and online gaming, and it provides VoIP service through POTS port.
| Hardware Parameter | |
| Dimension | 250mm×145mm×36mm(L×W×H) |
| Net weight | 0.34Kg |
| Operating condition | Operating temp:0 ~ +55。COperating humidity:5 ~ 90% (non-condensed) |
| Storing condition | Storing temp: -30 ~ +60。CStoring humidity: 5 ~ 90% (non-condensed) |
| Power adapter | DC 12V, 1.5A, external AC-DC power adaptor |
| Power supply | ≤18W |
| Interface | 1XPON+4GE+1POTS+USB3.0+WiFi6 |
| Indicators | PWR,PON ,LOS,WAN,WiFi,FXS,ETH1~4,WPS,USB |
| Interface Parameter | |
| PON Interface | • 1XPON port(EPON PX20+ and GPON Class B+)• SC single mode, SC/UPC connector • TX optical power: 0～+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm(EPON) or – 8dBm(GPON) • Transmission distance: 20KM • Wavelength: • 10GEPON: DS 1577nm/US 1310nm • XG(S)-PON: DS 1577nm/US 1270nm |
| User Interface | • 4×GE, Auto-negotiation,RJ45 ports • 1×POTS RJ11 Connector |
| Antenna | 4 ×5dBi external antennas |
| USB | 1× USB 3.0 for Shared Storage/Printer |
| Function Data | |
| O&M | • WEB/TELNET/OAM/OMCI/TR069 • Support private OAM/OMCI protocol and Unified network management of SOFTEL OLT |
| Internet Connection | Support Routing Mode |
| Multicast | • IGMP v1/v2/v3, IGMP snooping • MLD v1/v2 snooping |
| VoIP | • SIP and IMS SIP • G.711a/G.711u/G.722/G.729 Codec • Echo cancellation,VAD/CNG,DTMF Relay • T.30/T.38 FAX • Caller Identification/Call Waiting/CallForwarding/Call Transfer/Call Hold/3-way Conference • Line testing according to GR-909 |
| WIFI | • Wi-Fi 6: 802. 11a/n/ac/ax 5GHz & 802. 11g/b/n/ax 2.4GHz • WiFi Encryption:WEP-64/WEP- 128/ WPA/WPA2/WPA3 • Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM • Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band |
| L2 | 802. 1D&802. 1ad bridge, 802. 1p Cos,802. 1Q VLAN |
| L3 | IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
| Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL |
