ONT-8GE-POE FTTB/FTTO/POL GPON EPON 8 Gigabit Ethernet Ports xPON POE MDU
Model Number: ONT-8GE-POE
Brand: Softel
MOQ: 1
Support GPON/EPON dual mode
Support PoE/PoE+ management
8 Gigabit Ethernet ports
01
Product Description
Product Overview
ONT-8GE-POE series xPON MDU products are specially designed for FTTB/FTTO/POL application scenarios, providing multi-port data services based on xPON network.

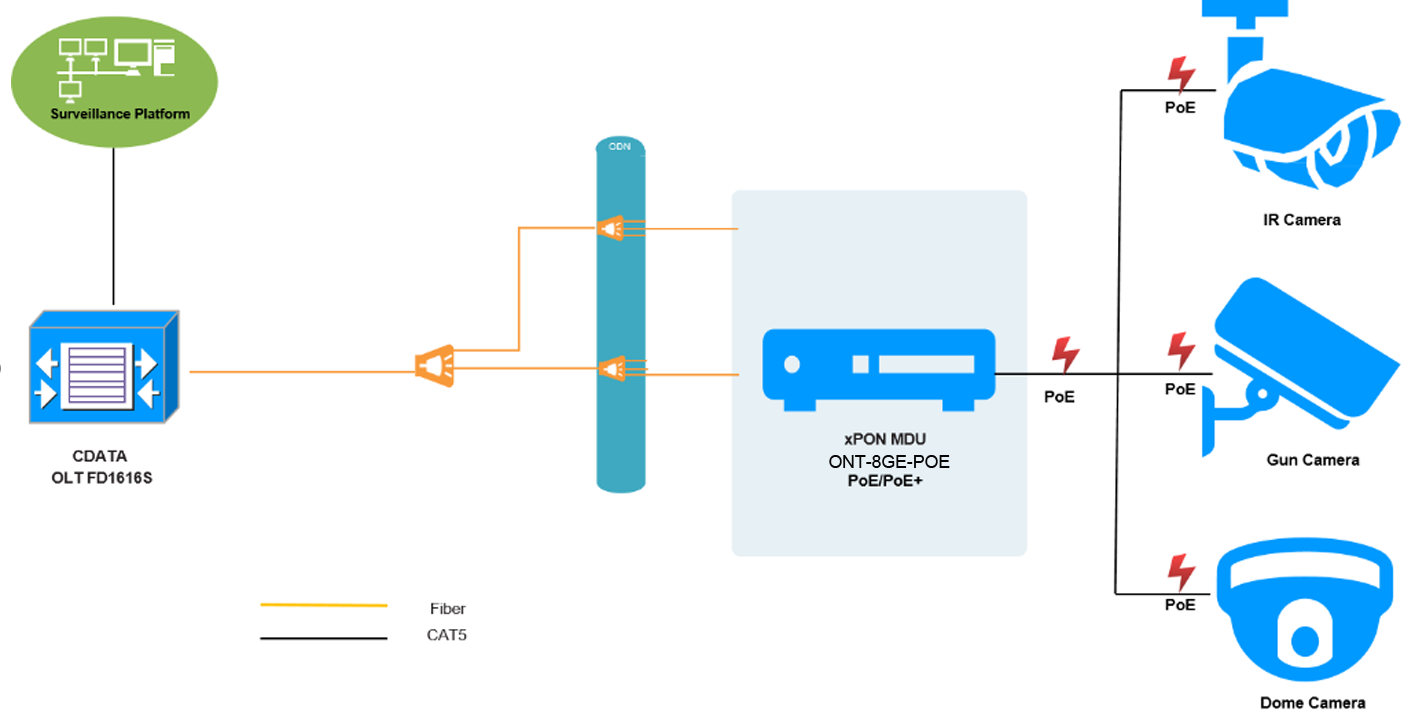

The product provides 1 G/EPON adaptive PON port for uplink, 8 10/100/1000BASE-T electrical ports for downlink, and supports PoE/PoE+ function (optional). It is used for data transmission and can supply power to connected cameras, APs and other terminals.
ONT-8GE-POE series products have the characteristics of high reliability, quality of service (QoS) guarantee, simple management, flexible upgrade and expansion, and convenient networking. All functions and performance indicators of the equipment are in line with ITU-T/IEEE related recommended standards and related international standard technical specifications, and have good compatibility with the central office OLT of mainstream manufacturers.
Functional Characteristics
- Comply with ITU-T G.984, IEEE802.3ah standard
- Support PoE/PoE+ function (optional)
- Support ONU automatic discovery/link detection/software remote upgrade
- Support multiple registration methods of SN and LOID+Password
- Support WEB/CLI/SNMP management
- Supports Dynamic Bandwidth Allocation (DBA)
- Support AES encryption and decryption
- Support broadcast anti-storm function
- Support IGMP/MLD Snooping
- Support ACL control
- Support MAC address learning
- Support port-based speed limit
- Support port flow control
- Support loop detect
- Support VLAN/VLAN Stacking/QINQ
- Support PoE/PoE+ management
| Hardware Features |
|
| GPON/EPON interface | Single Mode Single FiberGPON: FSAN G.984.2 standardEPON: 1000BASE-PX20+ SymmetricalGPON: 2.488Gbps/1.244Gbps downlink/uplink
EPON: 1.25Gbps downlink/uplink Wavelength: Transmit 1310nm Receive 1490nm Receive Sensitivity: GPON -28dBm EPON -27dBm Saturation Power: GPON -8dBm EPON -3dBm Transmission Power: GPON 0.5~5dBm EPON 0~4dBm |
| Weight and Dimensions | Dimension: 280mm(L) x 185mm(W) x 44mm (H)Weight: about 1.62kg |
| User Interface(LAN) | RJ-45 connector: 8* 10/100/1000Mbps adaptive network portFull/Half DuplexAuto MDI/MDI-X |
| Indicator | PWR / PON / LOS / LAN / POE / RUN |
| Power Consumption | Support PoE/PoE+(PSE)PSE output voltage：48V DCPoE output power：120WSingle port maximum output power：30W
Maximum machine power consumption：<=20W |
| Environmental parameters | Operating temperature: -10 to 50ºCWorking humidity: 10% to 90% |
| Software Features |
|
| management style | EPON : OAM/WEB/CLI/SNMP GPON : OMCI/WEB/CLI/SNMP |
| Register | Automatic discovery/link detection/remote software upgrade Automatic/MAC/SN/LOID+password authentication |
| swap settings | Mac address learning Basic port configuration Broadcast storm suppression Loop detect VLAN QOS |
| Multicast | IGMP V1/V2/V3 IGMP VLAN IGMP-Snooping、MLD Snooping |
| Security | ACL,Support filtering based on MAC and IP address |
| PoE management | PoE Port AdminState PoE Port Priority Setting PSE Overheated Protection PoE display and maintenance |
ONT-8GE-POE 8 Gigabit Ethernet Ports xPON POE MDU Datasheet.pdf
