ONT-4GE-VUW618 Dual Band 2.4G&5G Gigabit WiFi6 ONU XPON HGU ONT
Model Number: ONT-4GE-VUW618
Brand: Softel
MOQ: 1
Support XPON dual-mode technology (EPON and GPON)
Support IEEE802.11b/g/n/ac/ax WiFi 6 Technology
Next-Gen Gigabit WiFi, Speed up to 1.8 Gbps
01
Product Description
RTL9607C+
RTL8832AR+RTL8192XAR
WiFi6 Gig+ performance
Next-Gen Gigabit WiFi6
2.4GHz & 5GHz Dual Band
Speed up to 1.8 Gbps
IPv4/IPv6 Dual Stack
USB3.0 Interface
For Shared
Storage/Printer
Brief Introduction

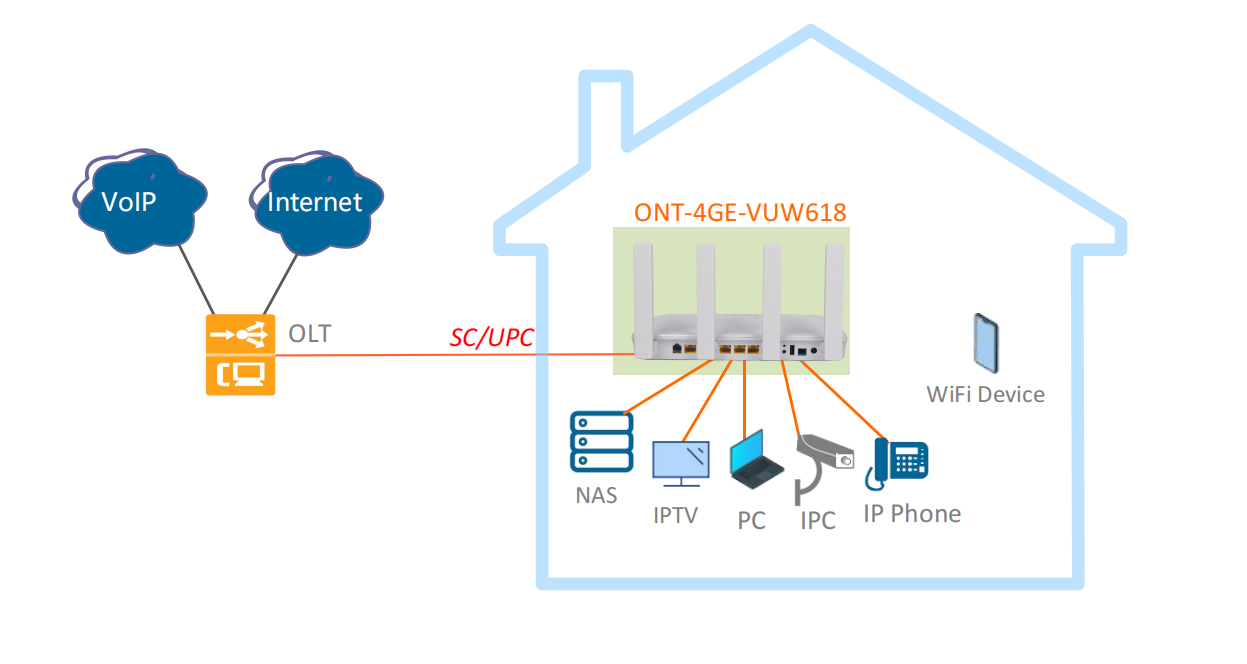

ONT-4GE-VUW618 (4GE+1POTS+WiFi6 XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac/ax WiFi 6 technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the SOFTEL OLT. The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.
| Hardware Parameter | |
| Dimension | 250mm×145mm×36mm(L×W×H) |
| Net weight | 0.34Kg |
| Operating condition | Operating temp:0 ~ +55。COperating humidity:5 ~ 90% (non-condensed) |
| Storing condition | Storing temp: -30 ~ +60。CStoring humidity: 5 ~ 90% (non-condensed) |
| Power adapter | DC 12V, 1.5A, external AC-DC power adaptor |
| Power supply | ≤18W |
| Interface | 1XPON+4GE+1POTS+USB3.0+WiFi6 |
| Indicators | PWR,PON ,LOS,WAN,WiFi,FXS,ETH1~4,WPS,USB |
| Interface Parameter | |
| PONInterface | • 1XPON port(EPON PX20+ and GPON Class B+)• SC single mode, SC/UPC connector • TX optical power: 0～+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm(EPON) or – 8dBm(GPON) • Transmission distance: 20KM • Wavelength: TX 1310nm, RX1490nm |
| User Interface | • 4×GE, Auto-negotiation,RJ45 ports • 1×POTS RJ11 Connector |
| Antenna | 4 ×5dBi external antennas |
| USB | 1× USB 3.0 for Shared Storage/Printer |
| Function Data | |
| O&M | • WEB/TELNET/OAM/OMCI/TR069 • Support private OAM/OMCI protocol and Unified network management of SOFTEL OLT |
| Internet Connection | Support Routing Mode |
| Multicast | • IGMP v1/v2/v3, IGMP snooping • MLD v1/v2 snooping |
| VoIP | • SIP and IMS SIP • G.711a/G.711u/G.722/G.729 Codec • Echo cancellation,VAD/CNG,DTMF Relay • T.30/T.38 FAX • Caller Identification/Call Waiting/CallForwarding/Call Transfer/Call Hold/3-way Conference • Line testing according to GR-909 |
| WIFI | • Wi-Fi 6: 802. 11a/n/ac/ax 5GHz & 802. 11g/b/n/ax 2.4GHz • WiFi Encryption:WEP-64/WEP- 128/ WPA/WPA2/WPA3 • Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM • Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band |
| L2 | 802. 1D&802. 1ad bridge, 802. 1p Cos,802. 1Q VLAN |
| L3 | IPv4/IPv6, DHCP Client/Server,PPPoE, NAT, DMZ, DDNS |
| Firewall | Anti-DDOS, Filtering Based on ACL/MAC /URL |
