ONT-2GE-V-DW Dual Band 2GE+VOIP+WiFi EPON/GPON ONU
Model Number: ONT-2GE-V-DW
Brand: Softel
MOQ: 1
Fully Mature Chipset (Realtek) Technology
Support Full Management of HGU Functions
Comply with OLT Based on Broadcom/PMC/Cortina Chipset
01
Product Description
Overviews
This ONT-2GE-V-DW (Voice Optional)+WiFi GPON/EPON HGU terminal device is designed to fulfill fixed network operators' FTTH and triple play service demand. This XPON ONT is based on the mature Chipset (Realtek) technology, which has a high-performance ratio to price, and the technology of IEEE802.11b/g/n/ac WiFi, Layer 2/3, and high-quality VoIP as well. Support complete management of HGU devices through SOFTEL OLT. They are highly reliable and easy to maintain, with guaranteed QoS for different services. And they are fully compliant with technical regulations such as IEEE802.3ah, ITU-TG.984.x, and technical requirements of GPON Equipment (V2.0 and above version) from China Telecom.
Features
- Support full management of HGU functions by SOFTEL OLT
- Plug-and-play, features auto-detecting, auto-configuration, auto firmware upgrade, etc
- Integrated OAM/OMCI remote configuration and maintenance function
- Support rich QinQ VLAN functions and IGMP Snooping multicast features
- Fully compatible with OLT based on Broadcom/PMC/Cortina chipset
- Support 802.11n/ac WiFi(4T4R) function
- Support NAT, Firewall function
- Support IPv4 and IPv6 dual stack
- Support SIP protocol
- Integrated line testing compliant with GR-909 on POTS
| ONT-2GE-V-DW Dual Band 2GE+VOIP+WiFi GPON ONU | |

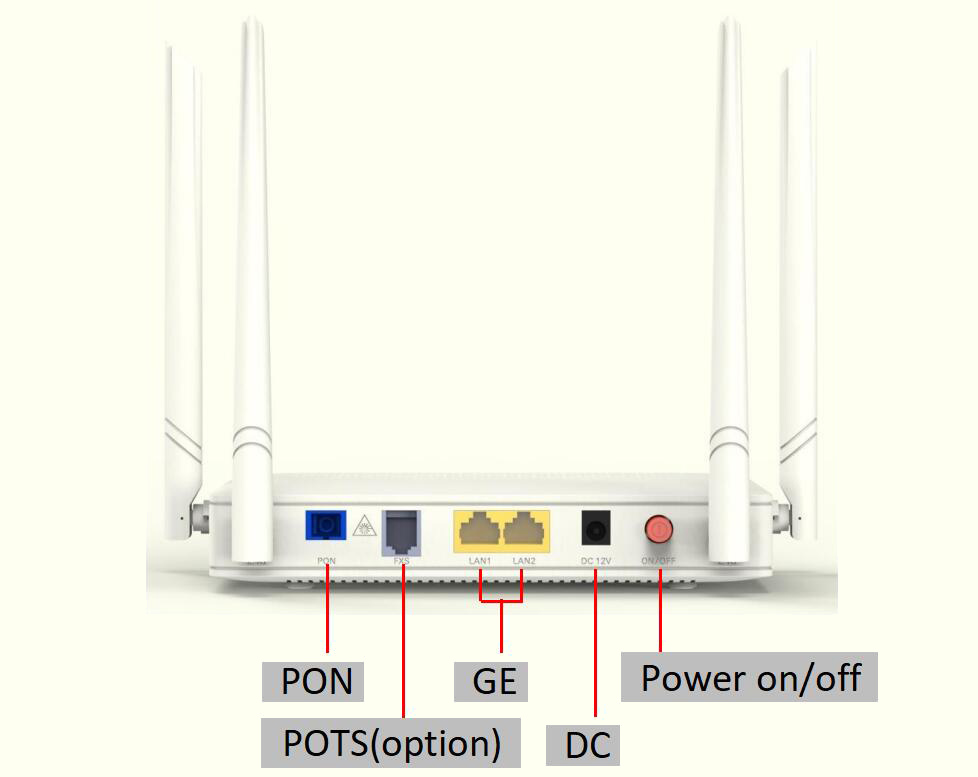

| PON interface | 1 G/EPON Port(EPON PX20+ and GPON Class B+) |
| Receiving sensitivity: ≤-28dBm Transmitting optical power: 0～+4dBm | |
| Transmission Distance: 20KM | |
| Wavelength | Tx1310nm,Rx 1490nm |
| Optical Interface | SC/UPC connector |
| LAN Interface | 2 x 10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half, RJ45 connector |
| POTS Interface | 1 x RJ11 connectors |
| Support: G.711A/G.711U/G.723/G.729 codec | |
| Support: T.30/T.38/G.711 Fax mode, DTMF Relay | |
| WiFi Interface | Compliant with IEEE802.11b/g/n/ac |
| 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz | |
| Support MIMO, 4T4R,5dBi external antenna, rate up to 1.167Gbps | |
| Support: multiple SSID | |
| TX power: 11n–22dBm/11ac–24dBm | |
| LED | For Status of POWER, LOS, PON, WAN, LAN1, LAN2, 2.4G, 5G, PHONE(option) |
| Operating | Temperature: 0℃～+50℃ |
| condition | Humidity: 10%～90%（non-condensing） |
| Storing Condition | Temperature: -30℃～+60℃ |
| Humidity: 10%～90%（non-condensing） | |
| Power Supply | DC 12V/1A |
| Consumption | ≤10W |
| Dimension | 178mm×120mm×30m(L×W×H) |
| Net weight | 0.32Kg |
| LED | ON | Blink | OFF |
| PWR | The device is powered up | / | The device is powered down |
| PON | Green is registered to the PON system | Green is registering to the PON system | Green is not registered to the PON system |
| LOS | Device does not receive optical signals | / | Device have received optical signals |
| WAN | Route WAN connect to internet. | / | Router WAN do not connect to internet. |
| WiFi(2.4/5.0G) | WiFi turned on | WiFi turn on and with ongoing data transmission | Device is power off or WiFi turned off |
| TELEPHONE | Device has registered to the soft-switch, but without ongoing data transmission | Phone hooks off or the port is with ongoing data transmission | Device is power off or not registered to the soft-switch |
| LAN1～LAN2 | Port is connected properly | Port is sending or/and receiving data | Port connection exception or not connected NA User is accessing User is logged in User has no access |
