ONT-1GE-RF FTTH GPON EPON CATV 1GE ONU Without Wifi
Model Number: ONT-1GE-RF
Brand: Softel
MOQ: 1
XPON Dual Mode EPON/GPON
Support CATV Rmote management
Compatible With ZTE, HUAWEI and FIBERHOME OLT
01
Product Description

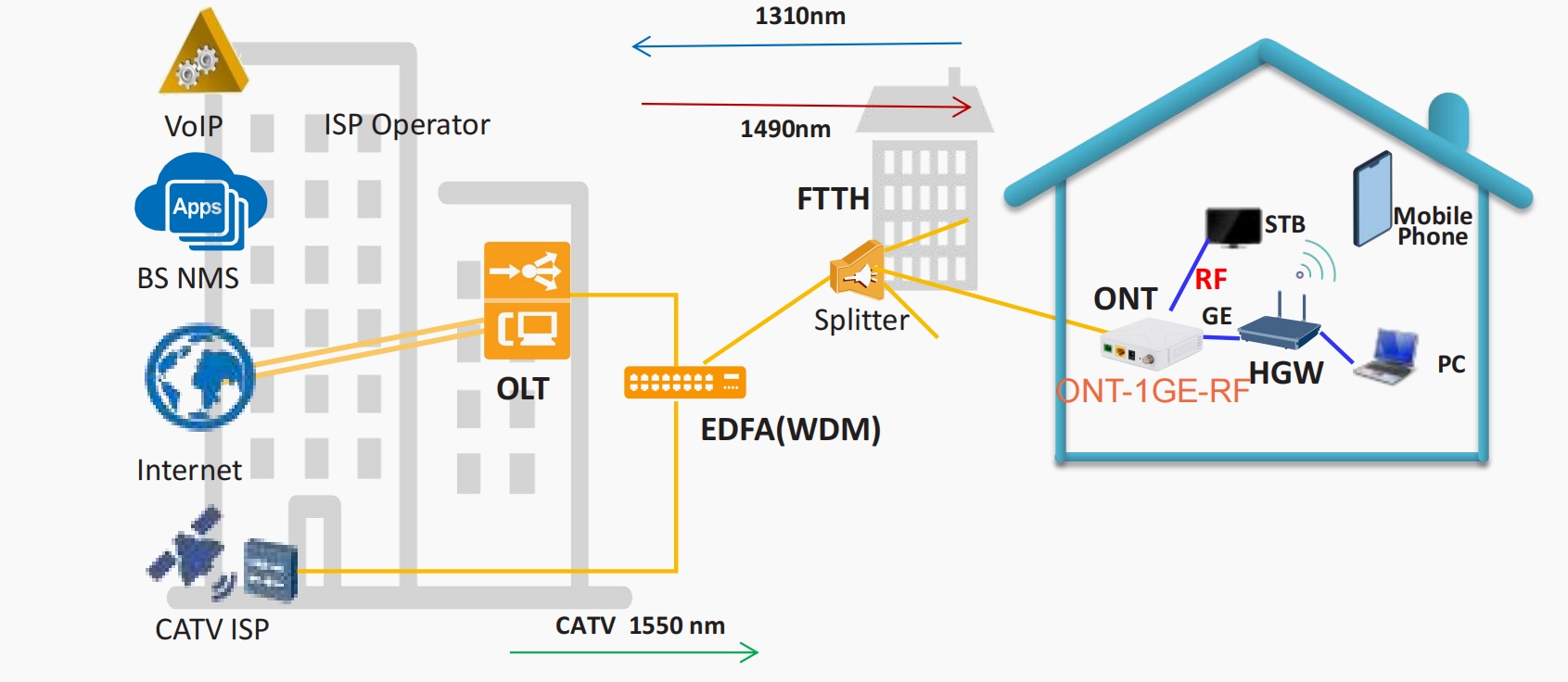

ONT-1GE-RF (XPON 1GE+CATV ONT) is specially designed to meet the FTTO (office), FTTD (desktop), FTTH (home), TV and other needs of telecom operators. The ONT is based on a high-performance chip solution, supports dual-mode (EPON and GPON), and also supports Layer 2/Layer 3 functions, providing data services for carrier-grade FTTH applications.
The ONT has high reliability and can be used in wide temperature environments. It also has powerful firewall functions and is easy to manage and maintain. It can provide QoS guarantee for different services. It conforms to international technical standards such as IEEE802.3ah and ITU-T G.984.
Key Features:
● ZTE Chipset High Performance Solution
● XPON Dual Mode Automatically Access to EPON/GPON
● Routing & Bridging Mode
● Remote Control CATV(with AGC) on/off
| Hardware Parameter | |
| Dimension | 100mm×92mm×30mm（L×W×H） |
| Net weight | 140g |
| Operating condition | • Operating temp: 0 ~ +50℃• Operating humidity: 10 ~ 90% (non-condensing) |
| Storing condition | • Storing temp: -30 ~ +70℃• Storing humidity: 10 ~ 90% (non-condensing) |
| Power adapter | DC 12V/0.5A, external AC-DC power adaptor |
| Power supply | ≤4.2W |
| Interfaces | 1GE+CATV |
| Indicators | POWER, LOS, PON, LAN, CATV |
| Interface Parameter | |
| PON interface | • 1XPON port(EPON PX20+ and GPON Class B+)• SC single mode, SC/APC connector
• TX optical power: 0～+4dBm • RX sensitivity: -27dBm • Overload optical power: -3dBm(EPON) or - 8dBm(GPON) • Transmission distance: 20KM • Wavelength: TX 1310nm, RX1490nm, CATV 1550nm |
| LAN interface | 1*GE Auto-negotiation RJ45 ports |
| CATV interface | V2801D V2:• RF Optical power : +2～-18dBm
• Optical receiving wavelength: 1550±10nm • RF frequency range: 47～1000MHz • RF output impedance: 75Ω • AGC range: 0 -15dBm • MER: ≥32dB(-14dBm optical input) V2801D V3: •RF Optical power : 0～-3dBm •Optical receiving wavelength: 1550±10nm •RF frequency range: 47～1000MHz •RF output impedance: 75Ω •RF output level: ≥ 60dBuV（0~-3dBm） •AGC range: not support •MER: ≥32dB(0~-3dBm optical input) |
| Function Data | |
| PON mode | XPON Dual Mode |
| Uplink Mode | Bridging and Routing ModeWell connect with OLTs of mainstream |
| CATV | Support CATV Rmote management |
| Standard | • Support CTC OAM 2. 1 and 3.0• Support ITUT984.x OMCI |
| Layer2 | • 802. 1D&802. 1ad bridging• 802. 1p CoS
• 802. 1Q VLAN |
| Layer3 | • IPv4• DHCP Client/Server
• PPPoE, NAT, DMZ, DDNS |
| Multicast | • IGMP v2/v3, IGMP snooping |
| Security and Firewall | • Prevent Rogue ONU• DDOS, Filtering Based on ACL/MAC/URL |
| O&M | Support EMSWEBTelnetCLI and unified network management of SOFTEL OLT |
