GJYXCH-1,2,4B6 FTTH Indoor Fiber Optical 1 2 4 Core Self-supporting Drop Cable
Model Number: GJYXCH-1,2,4B6
Brand: Softel
MOQ: 10KM
Customized Logo Design and Cable Length

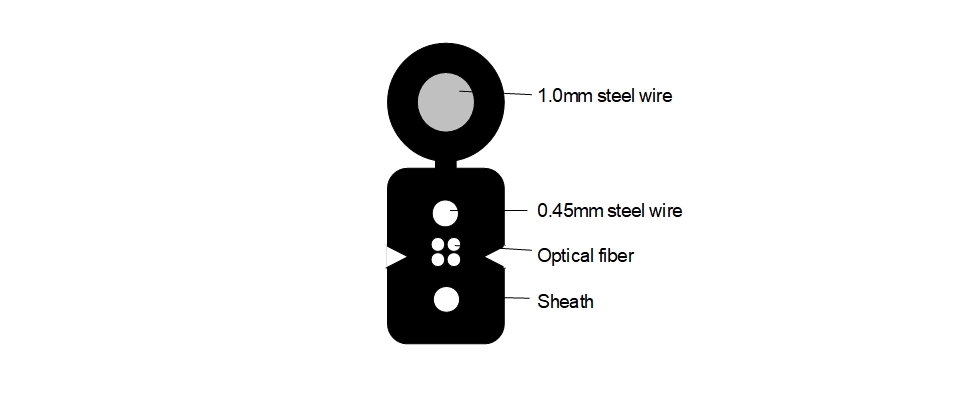

Steel-wire Strength Member
Optional 1km per Reel, 2km per Reel
01
Product Description
Abstract:
GJYXCH-1,2,4B6 drop cable is a high-performance optical fiber communication cable, which is widely used in fiber to the home (FTTH), fiber to the building (FTTB) and other fiber optic access networks. It is designed to provide stable and efficient optical signal transmission, ensuring the high bandwidth and low latency requirements of the network. It is suitable for a variety of indoor and outdoor environments, and has excellent mechanical properties and durability.
Feature:
1. Support high-speed data transmission to meet the high bandwidth requirements of modern networks.
2. Using high-quality materials, tensile, compression, bending, and adapting to complex installation environments.
3. It has good ultraviolet resistance, high and low temperature resistance, and is suitable for indoor and outdoor scenes.
4. Provide 1 core, 2 core, 4 cores and other specifications to meet different network needs.
5. The structural design is reasonable, which is convenient for rapid deployment and maintenance, and reduces construction costs.
6. Compatible with mainstream optical fiber equipment to ensure seamless network connection.
| Item | Technology Parameter | ||
| Cable type | GJYXCH-1B6 | GJYXCH-2B6 | GJYXCH-4B6 |
| Cable specification | 5.2×2.0 | ||
| Fiber type | 9/125 (G.657A1) | ||
| Fiber counts | 1 | 2 | 4 |
| Fiber color | Red | Blue, orange | Blue, orange, green, brown |
| Sheath color | Black | ||
| Sheath material | LSZH | ||
| Cable dimension mm | 5.2(±0.2)*2.0(±0.2) | ||
| Cable weight Kg/km | Approx. 19.5 | ||
| Min. bending radius mm | 120 | ||
| Min. bending radius mm(Excluding messenger wire) | 10 (Static)25 (Dynamic) | ||
| Attenuation dB/km | ≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm | ||
| Short term tensile N | 600 | ||
| Long term tensile N | 300 | ||
| Short term crush N/100mm | 2200 | ||
| Long term crush N/100mm | 1100 | ||
| Operation temperature ℃ | -20~+60 | ||
GJYXCH-1,2,4B6 FTTH Fiber Optical Self-supporting Drop Cable Datasheet. pdf
