GJXFH-2B6 FTTH Drop Cable 2C FRP Member Flat Fiber Optic Drop Cable Black LSZH Jacket
Model Number: GJXFH-2B6
Brand: Softel
MOQ: 10KM
Customized Logo Design and Cable Length

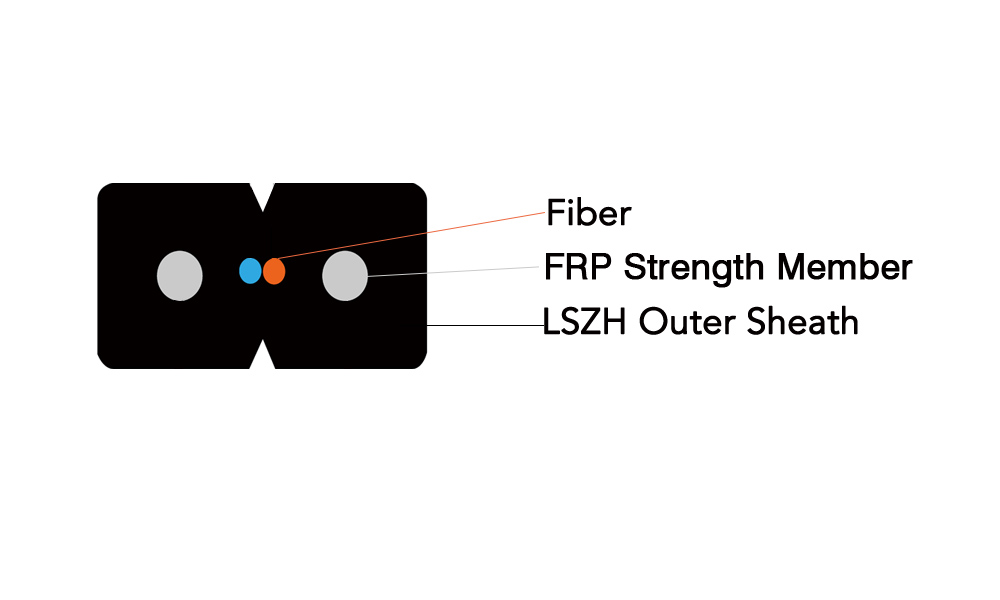

FRP/KFRF Strength Member
Strong Production Capacity
01
Product Description
GJXFH drop cables are versatile and reliable for fiber-to-the-home (FTTH) deployments. It is available in 1, 2, 4, or 6 fiber counts and optional fiber types including D.652D, G.657A1, and G.657A2, providing flexibility and compatibility for various installation requirements.
Summary:
GJXFH drop cables are designed for efficient and cost-effective FTTH installations. It is suitable for indoor and outdoor applications, ensuring a reliable connection from the central office to customer premises. With its multiple fiber count options and selectable fiber types, it can quickly adapt to different network configurations and provide reliable performance.
Feature:
Various fiber counts: GJXFH drop cables are available with 1, 2, 4, or 6 fibers, providing options for different connection needs.
This flexibility allows for easy scalability and future network expansion, ensuring the cable can support changing customer needs.
Optional fiber types: Fiber type options (D.652D, G.657A1, and G.657A2) make GJXFH drop cables compatible with various network architectures and deployment scenarios.
Whether traditional single-mode fiber or bend-insensitive fiber, the cable can be customized to meet specific installation requirements.
Indoor and Outdoor Applications: GJXFH drop cables are specially designed for indoor and outdoor environments, and suitable for a variety of installation scenarios. Its solid construction and rugged protection provide excellent resistance to environmental elements such as moisture, UV radiation, and temperature changes, ensuring long-term durability and reliable performance. In summary, GJXFH drop cables are ideal for FTTH deployments, offering a variety of fiber counts and optional fiber types for versatile and adaptable installations.
It can be used in both indoor and outdoor environments, ensuring reliable connectivity from the central office to customer premises. With GJXFH drop cables, providers can confidently deliver high-speed, high-quality fiber service to homes and businesses.
|
Item |
Technology Parameter |
||
|
Cable type |
GJXFH-1B6 |
GJXFH-2B6 |
GJXFH-4B6 |
|
Cable specification |
3.0×2.0 |
||
|
Fiber type |
9/125 (G.657A1) |
||
|
Fiber counts |
1 |
2 |
4 |
|
Fiber color |
Red |
Blue, orange |
Blue, orange, green, brown |
|
Sheath color |
Black |
||
|
Sheath material |
LSZH |
||
|
Cable dimension mm |
3.0(±0.1)*2.0(±0.1) |
||
|
Cable weight Kg/km |
Approx. 8.5 |
||
|
Min. bending radius mm |
10 (Static) 25 (Dynamic) |
||
|
Attenuation dB/km |
≦ 0.4 at 1310nm, ≦ 0.3 at 1550nm |
||
|
Short term tensile N |
80 |
||
|
Long term tensile N |
40 |
||
|
Short term crush N/100mm |
1000 |
||
|
Long term crush N/100mm |
500 |
||
|
Operation temperature ℃ |
-20~+60 |
||
GJXFH-2B6 FTTH Drop Cable 2C FRP Member Data Sheet.pdf
