FTTX-PT-M8 Water-proof 8 Core Fiber Optical Termination Box
Model Number: FTTX-PT-M8
Brand: Softel
MOQ: 10

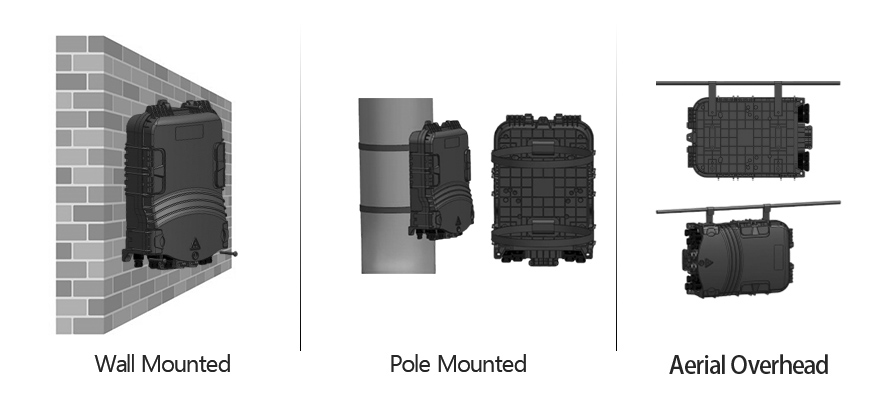

Wall-mounted or Poled-mounted
Workable for Multiple FTTx Network Building
All-in-One for fiber splicing, splitting, and distribution
01
Product Description
Brief Description
In the FTTx communication networks, the key to seamless connection lies in the fiber optic access box. Serving as a critical termination point, this innovative solution connects the feeder cable to the drop cable, facilitating efficient fiber splicing, splitting, and distribution. But it doesn't stop there – the smart box offers multiple benefits, providing reliable protection and superior management capabilities for FTTx network buildings. The Fiber Access Box is no longer just a passive component but acts as the central hub for network operations. It simplifies the complex fiber splicing process, enabling clean, reliable connections within FTTx systems.
The box's smart design allows for easy fiber organization and management, optimizing network efficiency and reducing maintenance costs. In addition, the Fiber Access Box has a robust protective shell that protects fragile fiber connections from external hazards. Its durable construction provides reliable long-term protection against environmental elements such as dust, humidity, and temperature fluctuations, ensuring the longevity and stability of the FTTx network. But the benefits of this versatile box don't stop there. It also plays a vital role in overall network management.
With its integrated distribution capabilities, the Fiber Access Box efficiently routes fiber connections, ensuring optimal performance and minimizing signal loss. This centralized management system simplifies maintenance and troubleshooting, reducing downtime and increasing productivity. In addition, fiber access boxes are designed with scalability in mind. As the need for fast, reliable connections grows, this robust solution can easily adapt to changing network demands. Its flexible and scalable design allows for the seamless addition of more fibers and components, future-proofing the FTTx network architecture and enabling hassle-free upgrades. In conclusion, Fiber Access Boxes are an integral component of any modern FTTx communication network. From simplified fiber splicing and efficient distribution to robust protection and scalable management, this smart solution ensures seamless connectivity and peak performance. By investing in this innovative technology, FTTx network buildings can confidently navigate the evolving digital connectivity landscape.
Functional Features
Made of high-quality PC+ABS material, this fully enclosed structure provides an enhanced protection level of up to IP65, making it waterproof, dustproof and anti-aging.
But its benefits go beyond protection - it's a truly versatile solution that revolutionizes fiber management.

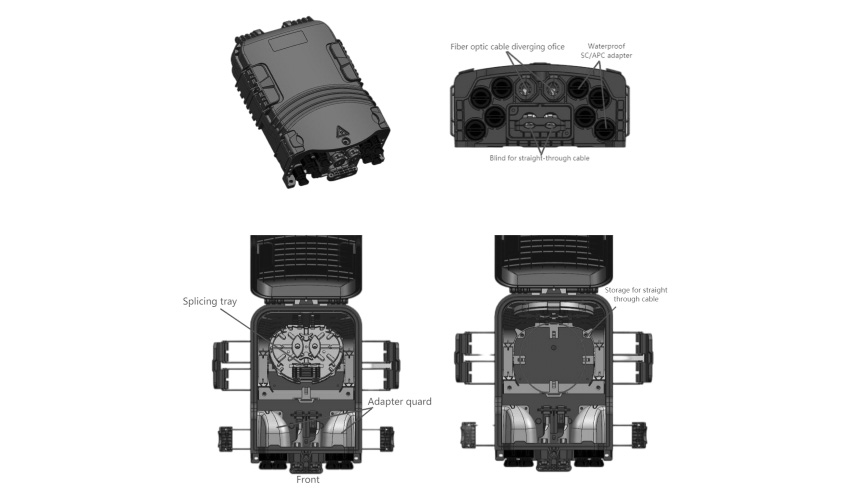

Fiber drop boxes provide efficient clamping for feeder and drop cables, simplifying fiber splicing, securing, storage, and distribution. This all-in-one design simplifies network operations and ensures a smooth flow of connected components.
With clear isolation and dedicated channels, cables, pigtails, and patch cords operate independently of each other, allowing for easy maintenance and easy troubleshooting. For maximum convenience, the fiber access boxes are equipped with flip-out distribution panels. This innovative design allows for easy handling during maintenance and installation tasks. Inserting feeders through the express port is a breeze, minimizing downtime and maximizing efficiency.
The user-friendliness of the box allows network technicians to quickly handle any necessary adjustments or upgrades, ultimately reducing service interruptions. In addition, Fiber Access Boxes offer unrivaled installation adaptability. Whether mounted on a wall or a pole, this versatile solution meets the needs of both indoor and outdoor environments. It can be seamlessly integrated into any infrastructure, providing a scalable and future-proof solution for fiber optic networks. Its durable construction guarantees adaptability to changing conditions, making it ideal for a variety of demanding deployment scenarios. In conclusion, Fiber Access Boxes have truly raised the bar for fiber optic network connections.
Its closed structure and PC+ABS material ensure reliable waterproof, dustproof and anti-aging. With its all-in-one design, fiber clamping, splicing, fixing, storage and distribution are seamlessly integrated. Unique cable isolation and ease of maintenance further optimize network functionality. Finally, its adaptable mounting options make it suitable for any location – indoors or out. Choose Fiber Access Boxes for unrivaled reliability, versatility, and performance in fiber network management.
| FTTX-PT-M8 FTTH 8 Core Optical Fiber Access Terminal Box | |
| Material | PC+ABS |

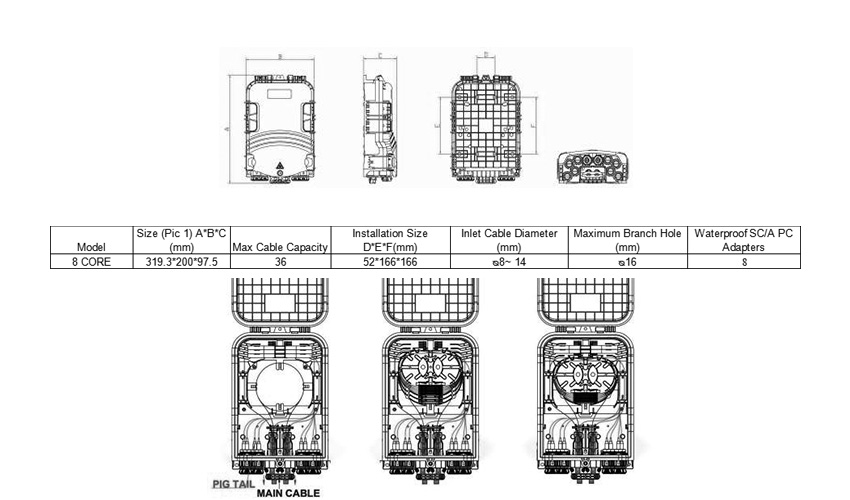

| Size (A*B*C) | 319.3*200*97.5mm |
| Max Capacity | 8 |
| Installation Size(Pic 2)D*E | 52*166*166mm |
| Into the largest cable diameter (mm) | ᴓ8~ 14mm |
| Maximum size of branch hole | ᴓ16mm |
| Waterproof SC/A PC adapters | 8 |
| Environmental requirement | |
| Working Temperature | -40℃～+85℃ |
| Relative Humidity | ≤85%(+30℃) |
| Atmospheric Pressure | 70KPa～106Kpa |
| Optic Accessory Specs | |
| Insertion loss | ≤0.3dB |
| UPC return loss | ≥50dB |
| APC return loss | ≥60dB |
| Life of insertion and extraction | ＞1000 times |
| Thunder-proof Technical Specs | |
| The grounding device is isolated with the cabinet, and isolation resistance is less than 2MΩ/500V(DC). | |
| IR≥2MΩ/500V | |
| The withstand voltage between the grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V | |
