CATV Multi-port EDFA Erbium-Doped Fiber Optical Amplifier 4 Outputs
Model Number: SMA-04-XX
Brand: Softel
MOQ: 1
High-quality Optic Pump Laser
Optional and Adjustable Fiber Optic Power
Dual Power Supply Optional for DC 48V/AC 110-220V
01
Product Description
Description and Features
SMA-04-XX is a low-noise high-performance CATV Multi-port EDFA Erbium-Doped Fiber Optical Amplifier 4 Outputs.
Check out some of the impressive features of our cutting-edge CATV 4-port EDFA:
• Flexible output power options ranging from 500 to 3200 (27 to 35 dBm)
• Our 1U chassis allows for up to 16 optional uplink ports, making it ideal for optical line terminals (OLTs), and 16 1550nm multiplexed output optical ports for 1310/1490nm data streams .
• Includes a built-in low-noise preamplifier that eliminates the need for EDFA cascading, significantly reducing CNR and MER degradation in the system.
• Low noise figure (≤4.5dB typical, ≤5.5dB maximum) to improve message quality.
• Perfectly compatible with RS232 and SNMP protocols to ensure seamless integration into your network.
• Carrier-grade security and network management for peace of mind.

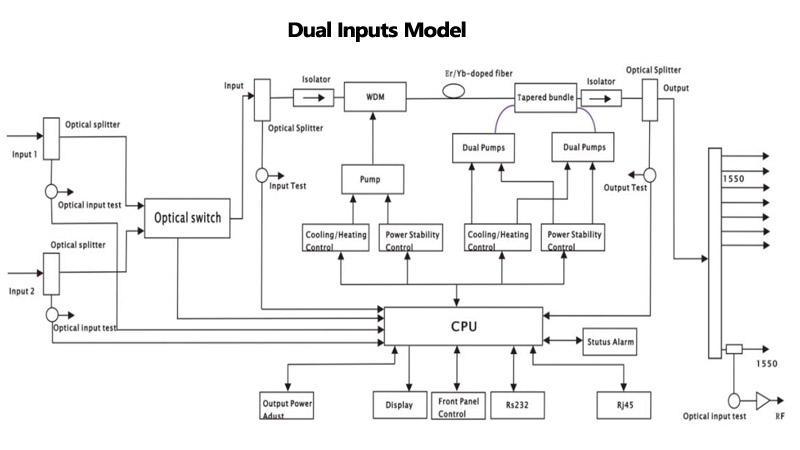

• Efficient space utilization, simple and easy to maintain.• Optional dual optical inputs, ideal for managing fluctuating network demands, with built-in 2 x 1 optical switches
• Optional dual power supplies with 1+1 backup to eliminate power outages.
• Reduce equipment space usage by up to 98%
• Reduce equipment purchase costs by up to 85%
• Up to 95% reduction in energy consumption
• Enjoy the best price/performance in the industry and upgrade your network with our innovative EDFA.
• Adopts Er Yb Codoped double-clad fiber technology;
• Output ports: 4 - 128 optional;
• Low noise figure: < 5dB when input is 0dBm;
• Perfect network management interface, in line with standard SNMP network management;
• Intelligent temperature control systems make power consumption lower.
|
CATV Multi-port EDFA Erbium-Doped Fiber Optical Amplifier 4 Outputs |
||||||||||
|
Items |
Parameter |
|||||||||
| Output（dBm） |
31 |
32 |
33 |
34 |
35 |
36 |
37 |
38 |
39 |
40 |
| Output（mW） |
1250 |
1600 |
2000 |
2500 |
3200 |
4000 |
5000 |
6400 |
8000 |
10000 |
| Input(dBm) |
-8～+10 |
|||||||||
| Output Power Adjustment (dBm) |
Down 3.0 |
|||||||||
| Output Ports |
2/4/8/16/32 |
|||||||||
| Wavelength （nm） |
1530～1565 |
|||||||||
| Output stability(dB) |
<±0.3 |
|||||||||
| Optical Return Loss（dB） |
≥45 |
|||||||||
| Fiber Connector |
SC/APC |
|||||||||
| Noise Figure （dB） |
<6.0(input 0dBm) |
|||||||||
| Web port |
RJ45(SNMP) |
|||||||||
| Power Consumption （W） |
≤80 |
|||||||||
| Voltage （V） |
220VAC(90～265)、-48DCV |
|||||||||
| Working Temp（℃） |
-0～55 |
|||||||||
| Size （mm） |
370(L)×486(W)×88(H) |
|||||||||
| NW（Kg） |
13.0 |
|||||||||
SMA Series 1550nm 4 Outputs Erbium-Doped Fiber Optical Amplifier Spec Sheet.pdf
