Dual Mode 1GE+WiFi XPON ONT Dual Antenna
Model Number: ONT-1GE-W
Brand: Softel
MOQ: 1
Dual Mode, Automatically Access EPON/GPON
Realtek Chipsets provide Excellent Heat-dissipation
WiFi IEEE802.11b/g/n, 2×2 5dBi Antennas, Wide Coverage
01
Product Description

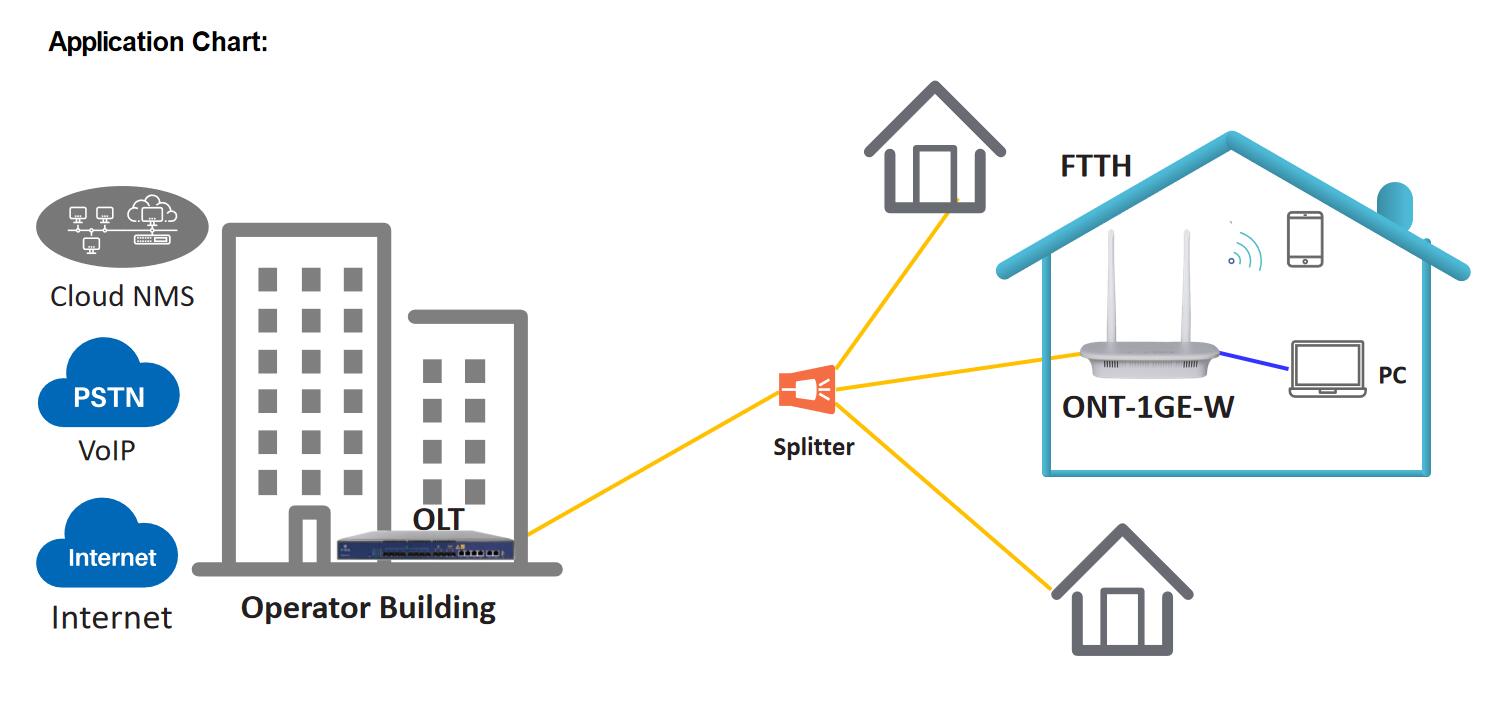

ONT-1GE-W (1GE+WiFi 4 XPON ONT) is a broadband access device specially designed to meet the needs of telecom operators for FTTO (Office), FTTD (Desktop), FTTH (Home), SOHO access, and video surveillance access.
The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n WiFi 4 technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the SOFTEL OLT.
The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.
| ONT-1GE-W Dual Mode 1GE+WiFi XPON ONT | |
| Hardware Parameter | |
| Dimension | 170mm*112mm*31mm(L*W*H) |
| Net weight | 0.170KG |
| Operating Environment | Operating Temp: 0 ~ +50°C |
| Operating humidity: 10 ~ 90% (non-condensing) | |
| Storing Environment | Storing temp: -30 ~ +60°C |
| Storing humidity: 10 ~ 90% (non-condensing) | |
| Power adapter | DC 12V/1A, external AC-DC power adaptor |
| Power supply | ≤6W |
| Interfaces | 1GE+WiFi 4 |
| Indicators | PWR, PON/LOS, WAN, LAN, WiFi |
| Interface Index | |
| PON interface | 1XPON port(EPON PX20+ and GPON Class B+) |
| SC Single Mode, SC/UPC connector | |
| TX Optical power: 0～+4dBm | |
| RX Sensitivity: -27dBm | |
| Overload optical power: -3dBm(EPON) or -8dBm(GPON) | |
| Transmission distance: 20KM | |
| Wavelength: TX 1310nm, RX1490nm | |
| WIFI interface | IEEE802.11b/g/n (TX power: 17dBm/16dBm/ 15dBm), Up to 300Mbps |
| 2T2R, 5dBi external antenna | |
| Support 13 Channels | |
| User interface | 1*GE,Auto-negotiation, RJ45 connectors |
| Functional Features | |
| PON mode | Dual Mode , Can access EPON/GPON OLTs(HUAWEI,ZTE,FiberHome, etc). |
| Uplink mode | Bridging and Routing Mode. |
| Layer2 | 802.1D&802.1ad bridge,802.1p Cos, 802.1Q VLAN. |
| Layer3 | IPv4/IPv6 , DHCP Client/Server , PPPoE，NAT , DMZ ,DDNS. |
| Multicast | IGMPv1/v2/v3 , IGMP snooping. |
| Security | Flow & Storm control, Loop Detection. |
| WiFi | Authentication: WEP/WAP-PSK(TKIP)/ WAP2-PSK(AES). |
| Support: Multiple SSID | |
| Firewall | Filtering Based on ACL/MAC/URL. |
| O&M | WEB/TELNET/OAM/OMCI/TR069, |
| Support private OAM/OMCI protocol and Unified network management of SOFTEL OLT. | |
