AI-10A Multifunctional 6s Fast Splicing Trunk Line Optical Fiber Fusion Splicer
Model Number: AI-10A
Brand: Softel
MOQ: 1
6s Fast Splicing, 15s Automatic Heating
Built-in electric high-precision cleaver
Equipped with 8-in-1 signal fire stripper
Product Description
Brief Description
SOFTEL AI-10A optical fiber fusion splicer uses a number of patents, the full weight of the main machine, the toolbox and a complete set of accessories is only 4.5KG, and the toolbox size is 25.5cmx16.5cm x23cm. In such a small and compact case, the combined design of bench and bench is realized at the same time. Industrial CPU, running speed is super fast, 6 seconds fast splicing, 15 seconds heating, 5 inch color HD LCD screen, 320 times magnification, 7800mAh large capacity lithium battery can splice and heat 240 cores, in high altitude, dry, cold and other harsh environments still perform well.
Funtional Features
1. Can be used as a bench outdoor construction is also easy
2. Host support / protection console
3. Equipped with 8-in-1 signal fire stripper
4. 5 inch display Simultaneously align fibers Loss display
5. Built-in VFL and OPM function
6. Electric high-precision cleave, after optical fiber is placed, the cover closed and automatically cut
| AI-10A Optical Fiber Fusion Splicer | |
| Fiber alignment | Core/cladding |
| Motor number | 6 motors |
| Splicing time | 6s |
| Heating mode | 15s ， can be customized according to the external environment |
| Fiber type | Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible optical fiber. |
| The cladding diameter | 80-150μm |
| Splicing loss | 0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS） |
| Splicing mode | Automatic focusing core alignment, conventional/high precision splicing |
| Splicing way | Automatic, semi-automatic,manually |
| Fiber cleaver | Equipped with electric high-precision cleaver |
| Fiber holder | Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable |
| VFL | The machine comes with power: 15mW, 2Hz flashing and steady on mode |
| OPM | Wavelength: 850nm; 1300nm , 1310nm , 1490nm , 1550nm , 1625nm/ Measurement range: -50+30dbmAbsolute error: <0.3dB (-50dbm ~+3dBm range) |
| Battery capacity | 7800mAh large capacity lithium battery charging time ≤3 .5; It can continuously weld and heat about 240 cores |
| Magnification | 320x (X or Y axis single display) ，200x (x and Y axis dual display) |
| Fiber diameter | Coating diameter: 80-150μm/Coating diameter: 100-1000μm |
| Cutting length | Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm |
| Heat shrink tube | 60mm 、50mm 、40mm 、25mm |
| Tensile testing | standard 2N |
| display | 5 inch TFT color display screen |
| Boot time | 1s, boot can enter the working mode |
| Data is stored | Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data. |
| Wireless communication | Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m |
| Software upgrade | Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software |
| Management function | The equipment owner can be bound as the highest authority, and can remotely view the splicing records, splicing time, loss, etc. through the mobile phone APP. The number of splicing times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment. |
| Return loss | Better than 60 db |
| Product protection | Waterproof, dustproof and fall proof |
| Power supply | Input AC100-240V 50/60Hz , output DC13 .5V/4.8A , the current power mode can be identified , real-time monitoring of the current battery level |
| The work environment | Temperature: -15 ~ +50℃ , humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximumwind speed: ≤15m/s |

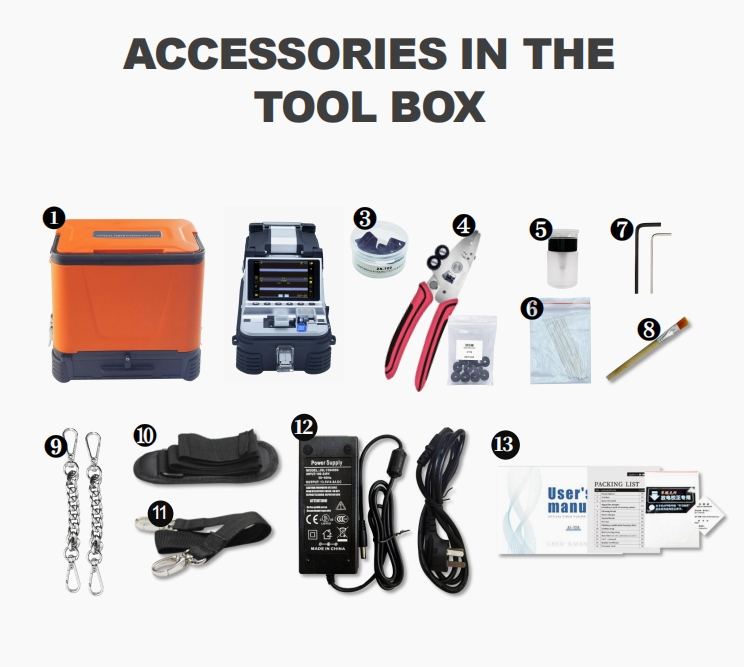

1. Toolcase
2. Fusion splicer
3. Spare electrode
4. Stripper
5. Alcohol bottle
6. Cleaver cleaning cotton swab
7. Allen wrench
8. Brush
9. Climbing combination hanging chain
10. Toolbox strap
11. Belt
12. Power adapter
13. User’s manual / Quality Certificate / Warranty Card / Fiber for ARC
AI-10A 6s Fast Splicing Trunk Line Optical Fiber Fusion Splicer.pdf
