144 Port SM Fiber Optic Patch Panel with SC/APC Drawer Type Splicing Adapter Plates
Model Number: ODF-D-144F
Brand: Softel
MOQ: 10
Customized Logo Design
Pull-out Splice Patch Panel
Available for Different Optic Adapter Plates
01
Product Description
Highlight
Pull-out design enhances flexibility. You can order an empty customized fiber enclosure from SOFTEL.
Alternatively, your order can arrive in one box, with your adapter plates & adapters, and splice trays are already installed just as you require.
Functional Features:
UR 1U/2U/3U/4U/5.5U RACK-MOUNT ENCLOSURES
· Standard 19”.
· Aluminum sheet as raw material.
· 1RU/2RU/3RU/4RU/5.5RU for different requirement .
· Unibody: Splice tray and adapter plate.
· Lightweight for security and reliability.
· Slot design for easy operation.
· Better fusion splicing and protection for bare fibers.
· Larger room for management.

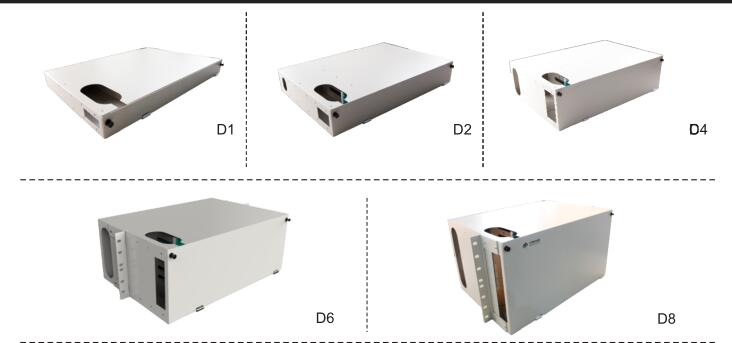

| ODF-D RACK-MOUNT ENCLOSURES | |||
| Description | Maximum Capacity | Part NO. | |
| Adapter(SC/FC) | Splice Tray | ||
| ODF-D1 1U Empty | 12/12 | 1 | ODF-D1 |
| ODF-D4 3U Empty | 24/24 | 4 | ODF-D4 |
| ODF-D2 2U Empty | 48/48 | 2 | ODF-D2 |
| ODF-D6 4U Empty | 72/72 | 6 | ODF-D6 |
| ODF-D8 5.5U Empty | 96/96 | 8 | ODF-D8 |
ODF-D Series FTTH 144 Port SM Fiber Optic Patch Panel Data Sheet.pdf
