1310nm Internal Modulation Fiber Optical Transmitter 36mW
Model Number: ST1310-XX
Brand: Softel
MOQ: 1
Max Output Power to 36mW
Adopt DFB Lasers of Famous Brand
Functional Internal Microprocessor Software
01
Product Description
Features
The transmitting modules of this machine adopt the imported DFB laser named Agere (ORTEL, Lucent), Mitsubishi, Fujitsu, AOI, and so on.

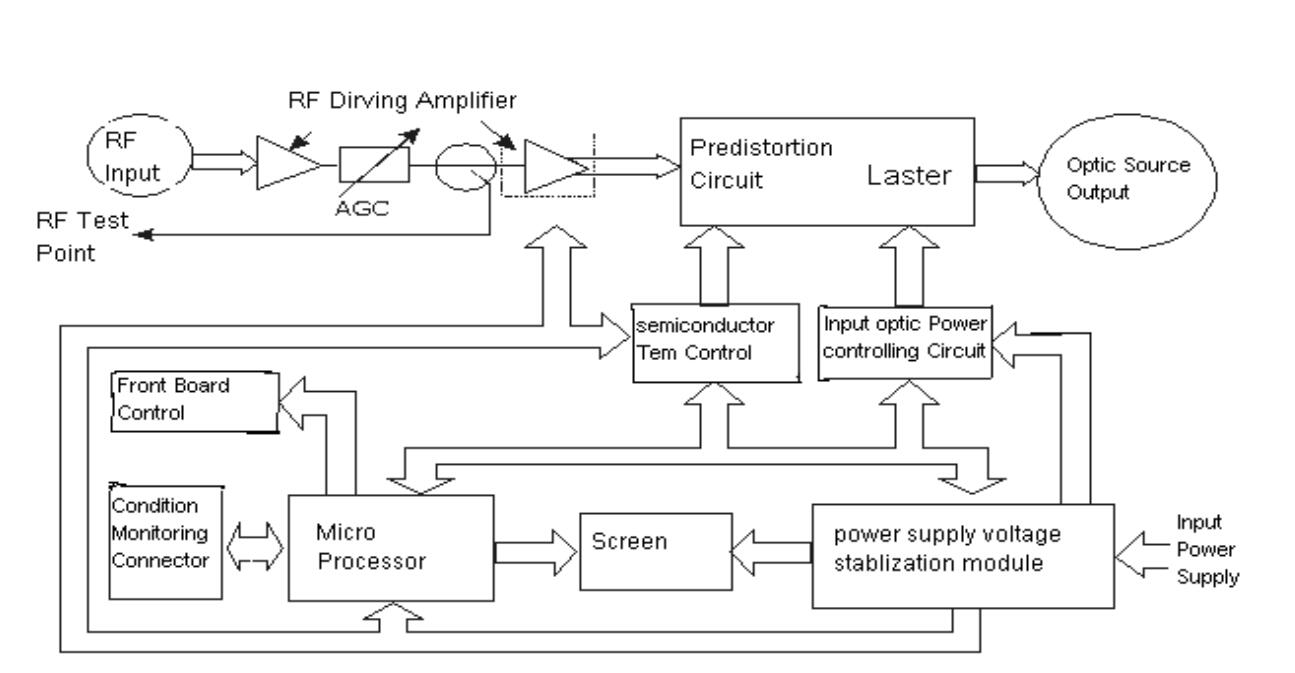

The internal RF driving amplifier and controlling circuit of this machine can ensure the best C/N. The perfect and stable circuit of optic power output and controlling circuit of thermometric refrigeration device of laser module assures the user the best quality and stable working for a long time.
The internal microprocessor software has many functions such as laser monitoring, number display, trouble alarm, and online management. Once the working parameter of the laser is out of the fixed range, there will be a red light glistening to alarm.
The RS-232 standard connector makes it possible to manage online and monitor in another place.
The machine adopts a 19” standard shelf and it can work with voltage from 110V to 254V.
Display Board Operation Guide
Press the button “Status” on the board, and the working parameter of this machine can be seen in turn as follows,
1. Model: ST1310-02, 04, 06, 08, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36
2. Output Power: display the output power of this machine（mW）.
3. Laser Temp: the laser works between 20℃ and 30℃. If the temperature is out of this range, the red light will glisten to warm.
4. Bias Current: The bias current of the laser is the main working parameter of the laser. Only when the parameter is above 30mA, the RF driving circuit can begin to work. The red light will shine to warn when the RF driving level comes out of the fixed value.
5. REFRG Current: Showing the working current of heating or cooling which can make sure the standard temperature is 25℃.
6. + 5V Test(Reads): Showing internal actual Voltage of ±5V.
7. - 5V Test(Reads): Showing internal actual -5V.
8. +24V Test(Reads): Showing internal actual voltage of +24V.
|
ST1310-XX 1310nm Internal Modulation Fiber Optical Transmitter |
||||||||||
|
Model（ST1310） |
-2 |
-4 |
-6 |
-8 |
-10 |
-12 |
-14 |
-16 |
-18 |
-20 |
| Optic Power （mW） |
≥02 |
≥04 |
≥06 |
≥08 |
≥10 |
≥12 |
≥14 |
≥16 |
≥18 |
≥20 |
| Optic Power （dBm） |
3.0 |
6.0 |
7.8 |
9.0 |
10.0 |
10.8 |
11.5 |
12.0 |
12.3 |
12.8 |
| Optic Wavelength （nm） |
1290～1310 |
|||||||||
| Fiber Connector |
FC/APC、SC/APC、SC/UPC (Selected by the Customer) |
|||||||||
| Working Bandwidth (MHz) |
47～862 |
|||||||||
| Channels |
59 |
|||||||||
| CNR （dB） |
≥51 |
|||||||||
| CTB （dBc） |
≥65 |
|||||||||
| CSO （dBc） |
≥60 |
|||||||||
| RF Input Level (dBμV) |
Not with pre-distortion |
78±5 | ||||||||
|
With pre-distortion |
83±5 | |||||||||
| Band Unflatness |
≤0.75 |
|||||||||
| Power Consumption (W) |
≤30 |
|||||||||
| Power Voltage (V) |
220V(110～254) |
|||||||||
| Working Tem (℃) |
0～45 |
|||||||||
| Size (mm) |
483×370×44 |
|||||||||
|
mW |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
dBm |
0.0 |
3.0 |
4.8 |
6.0 |
7.0 |
7.8 |
8.5 |
9.0 |
9.5 |
10.0 |
10.4 |
10.8 |
11.1 |
11.5 |
11.8 |
12.0 |
|
mW |
17 |
18 |
19 |
20 |
21 |
22 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
dBm |
12.3 |
12.5 |
12.8 |
13.0 |
13.2 |
13.4 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
21 |
22 |
23 |
